Radio/Stereo

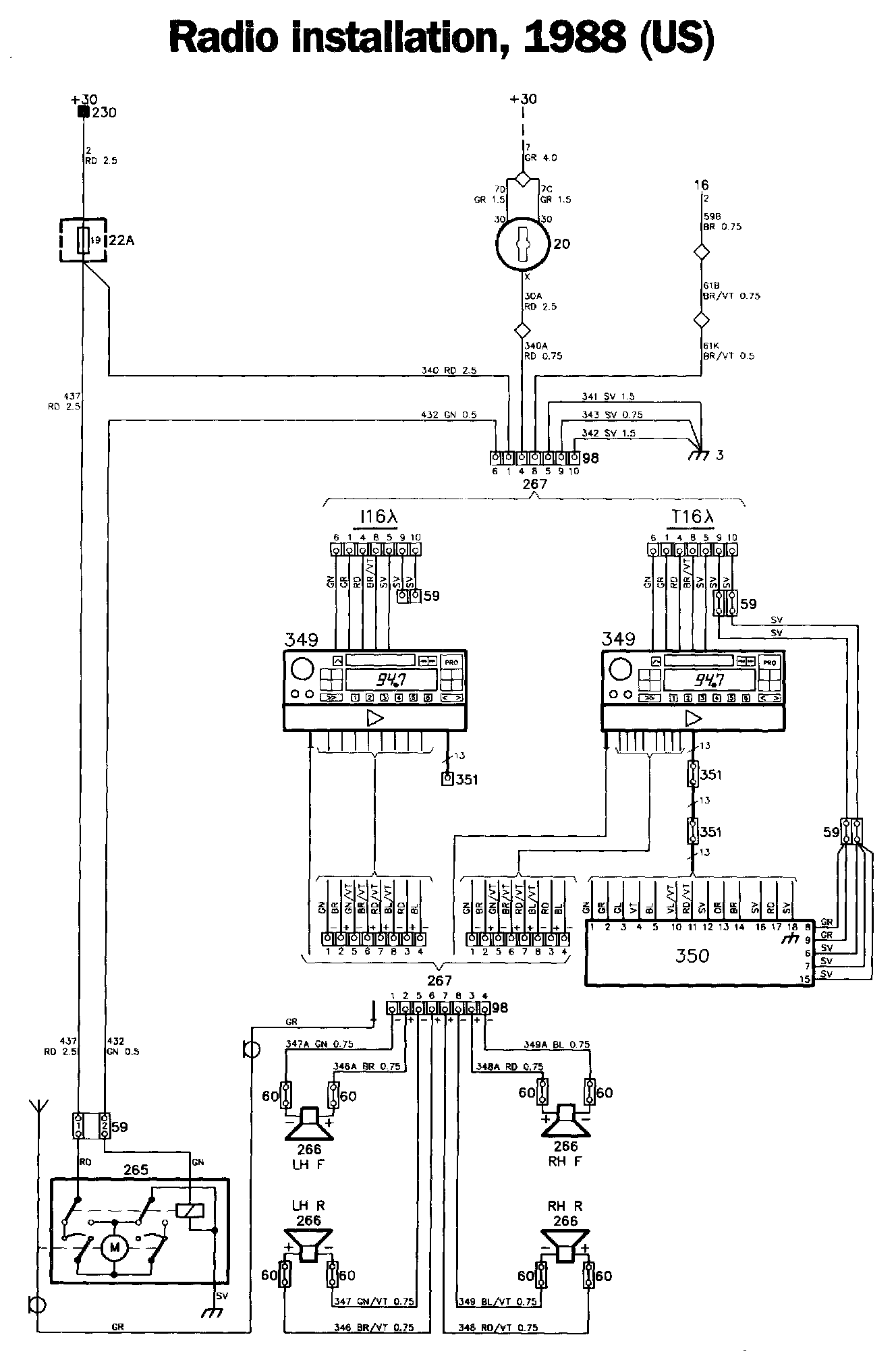

Radio Diagrams:

Radio Components:

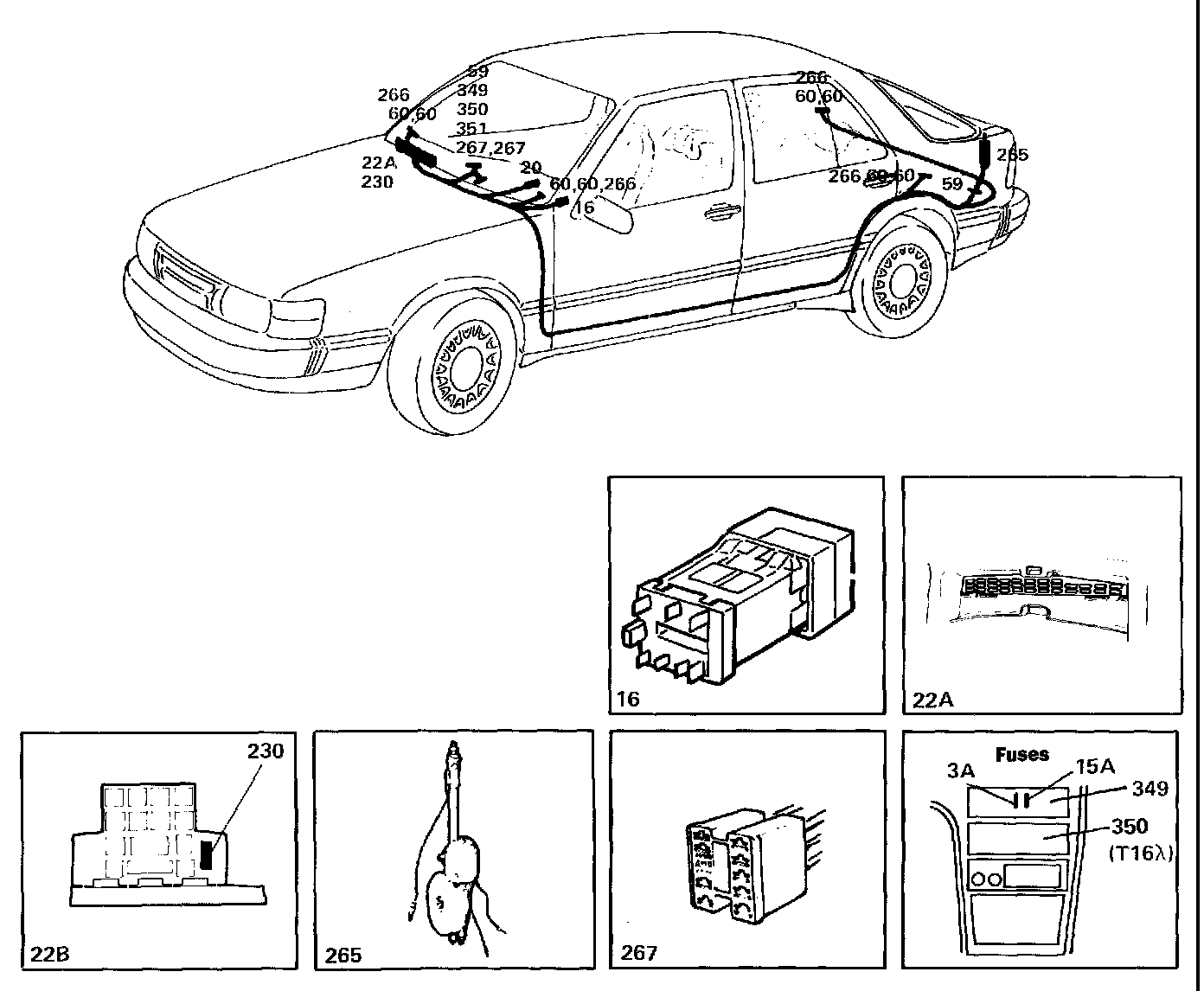

Locations of components

3 Earthing point, facia
At the left-hand front speaker socket

16 Instrument lighting rheostat
On the facia, on the left-hand side of the steering wheel

20 Ignition switch
On the right-hand side of the steering column

22A Fuse board
Behind the access panel in the glove compartment

59 Two-pole connector
One at the location provided for fitting of the (electrically-operated) aerial, on the left-hand side at the rear
One in the facia, at the radio contact box

60 Single-pole connectors
Two on the left-hand side of the facia
Two on the right-hand side of the facia
Two on the left-hand side of the parcel shelf
Two on the right-hand side of the parcel shelf

230 Distribution terminal +30
In the electrical distribution box behind the glove compartment

265 Electrically-operated aerial
On the left-hand side at the rear

266 Speakers
Two in the facia
Two under the parcel shelf

267 Ten-pole connector
Two in the centre console

349 Radio contact box with amplifier
In the centre console

350 Contact box for CD player or equalizer
In the centre console

351 13-pole connector
Two in the facia

Operation
The facia is fitted with a radio contact box.

Two variants exist:

9000 I16 Lambda: A radio contact box with amplifier (349)

9000 T16 Lambda: A radio contact box with amplifier (349). This contact box is equipped with a shielded cable with an 18-pole connector, for the connection of a CD player or equalizer. The shielded cable is fitted with two 13-pole connectors 351 (DIN connectors). The CD player or equalizer can be connected by inserting it into a contact box located in the top compartment of the centre console.

In addition, the car is pre-wired, and speakers and an electrically operated aerial are fitted, to facilitate the installation of a radio.

The radio contact box must be connected to the aerial cable and to two 10-pole connectors (267), one for the power supply and the other for the speakers.

The contact box with amplifier (349) is fitted with a 3A fuse and a 15A fuse.

Power supply
The following cables are connected to the upper 10-pole connector 267 shown on the wiring diagram:

Red (pin 1) - Positive supply via fuse 19, which is supplied directly from the battery (regardless of the position of the ignition switch).

Red (pin 4) - Positive supply via the ignition switch. The radio is supplied when the ignition switch is in the parked or drive position.

Black (pins 5, 9 and 10) - Earth.

Green (pin 6) - For control of the electrically-operated aerial (265). The motor of the electrically-operated aerial is supplied via fuse 19.

Brown/white (pin 8) - Dial lighting. The supply is taken from instrument lighting rheostat 16.

Speakers
The speaker connections are made via the lower 10-pole connector (267) shown in the diagram.

Left-hand front:
Green (pin 1) -
Brown (pin 2) +

Right-hand front:
Red (pin 3) +
Blue (pin 4) -

Left-hand rear:
Green/white (pin 5) -
Brown/white (pin 6) +

Right-hand rear:
Red/white (pin 7) +
Blue/white (pin 8) -

Each speaker is connected via single-pole connector 60.

Fault-tracing hints
1. Check the supply to the radio and the earth connection.
2. Check the connectors.
3. Check the existing cable harness for open circuits and short circuits to earth.
