Door Fans

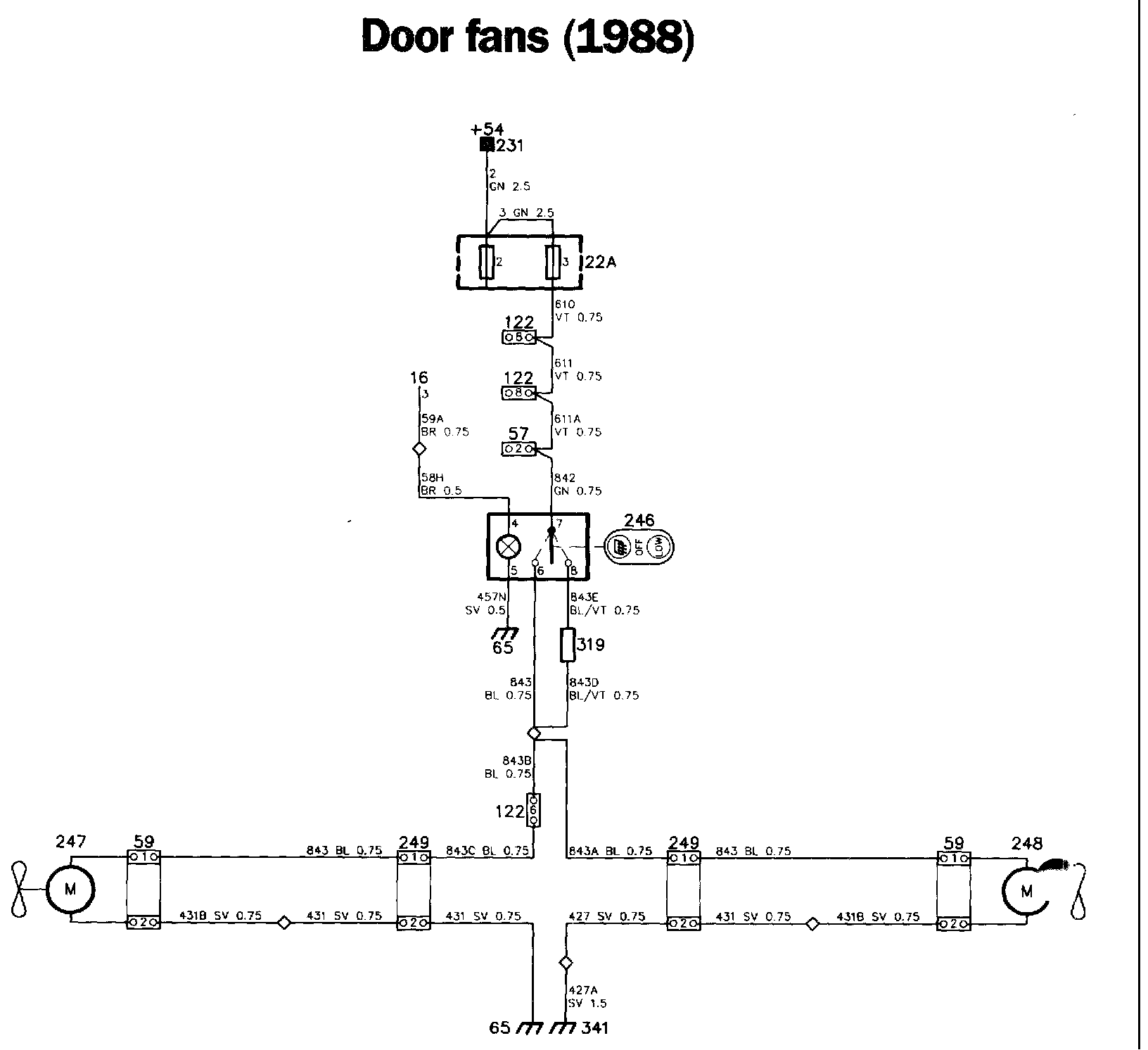

Door Fan Diagrams:

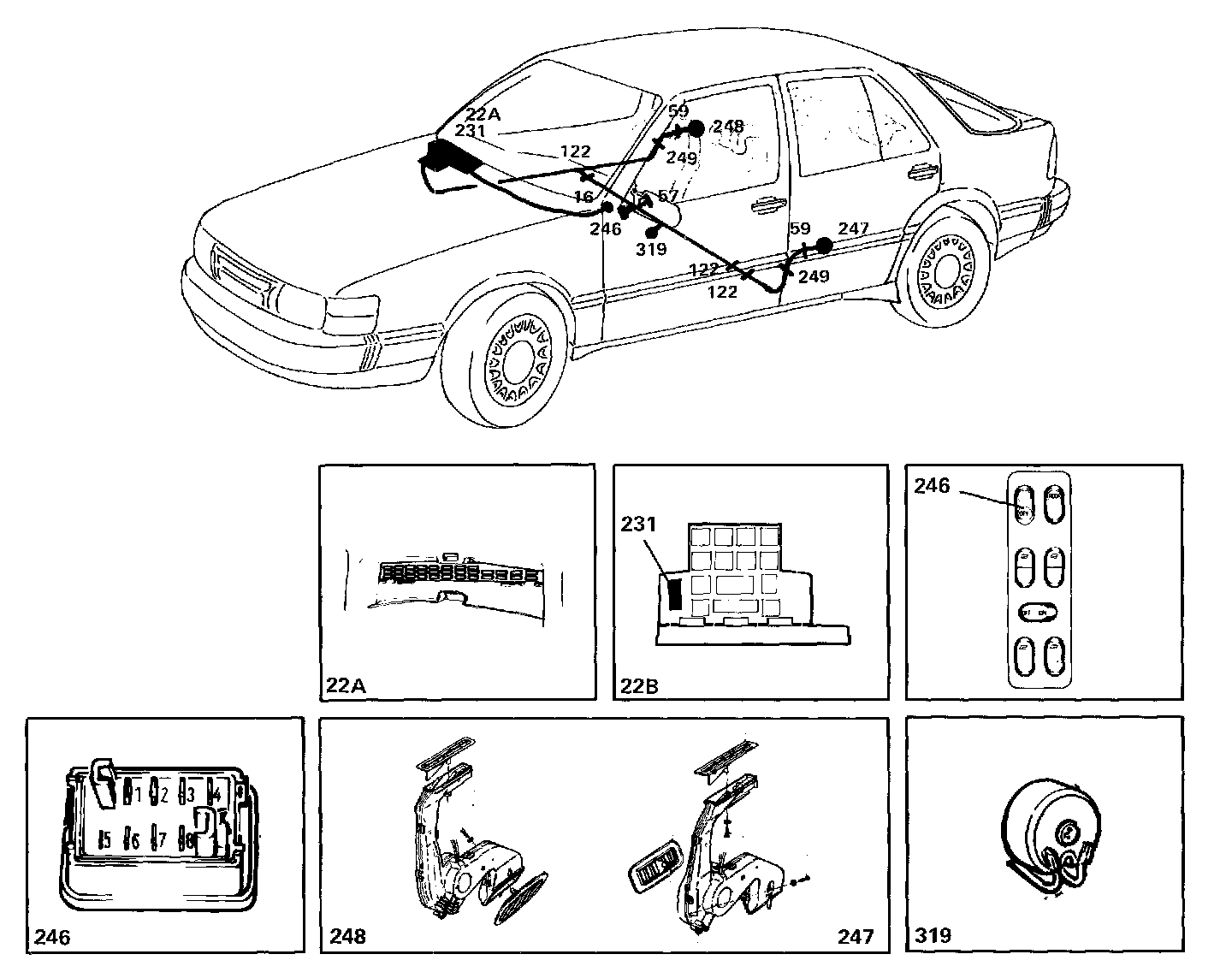

Door Fan Components:

Locations of components

16 Instrument lighting rheostat
On the left-hand side of the facia

22A Fuse board
In the electrical distribution box behind the glove compartment

57 Three-pole connector
Under the centre console between the front seats

59 Two-pole connector
One in each rear door

65 Earthing point
Under the back seat

122 Eight-pole connector
One under each front seat
One on the left-hand front seat member

231 Distribution terminal +54
In the electrical distribution box behind the glove compartment

246 Switch for door fans
On the centre console, between the front seats

247 Motor for door fan
In the left-hand rear door

248 Motor for door fan
In the right-hand rear door

249 Seven-pole connector
One in each B-pillar

319 Resistor for door fans
Under the left-hand front seat

341 Earthing point
On the left-hand front seat member

Operation
Turbo models with Automatic Climate Control (ACC) are equipped with fans in the rear doors. These fans are designed to increase the air circulation in the rear of the interior.

The fans are supplied from fuse 3 when the ignition switch is in the drive position.

The fans can be switched on and off by means of switch 246, which is located in the centre console. This switch has three positions: The fans are switched off when the switch is in the centre position, and one fan speed is provided in each of the other two positions. When the switch is set to the "LOW" position, the fans are supplied across resistor 319, 50 the fans run at lower speed. Fan 247 is fitted in the left-hand rear door, and fan 248 in the right-hand rear door.

The lamp for the switch is connected to instrument lighting rheostat 16.

Fault-tracing hints
The fans will be operative when the ignition switch is in the drive position.

1. Check fuse 3 and check that the supply to it is live.
2. Check that the supply to terminal 7 of switch 246 is live.
3. Check the switch.
4. Check the connectors, wiring and earth connections.
