Sedan

Burglar Alarm Components:

Burglar Alarm Diagrams:

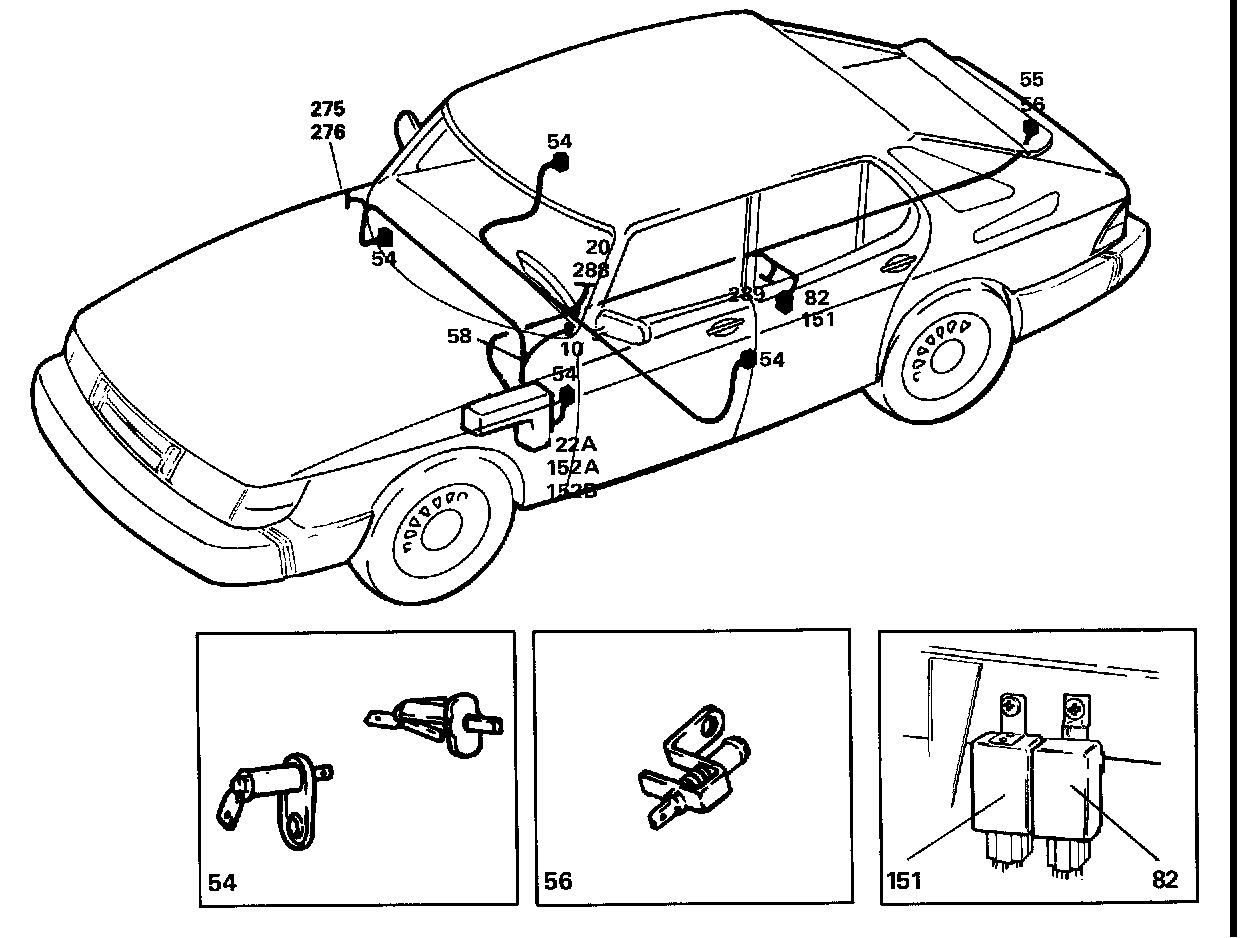

Locations of components

3 Earthing point
In the fascia

10 Light switch
On the left-hand side of the fascia

11 Full beam filament
In the left-hand and right-hand headlamps

12 Dipped beam filament
In the left-hand and right-hand headlamps

13 Parking lights
In the front light clusters

14 Rear lights, 3-D and 5-D
In the rear light clusters and on the tailgate Rear lights, 2-D and 4-D
In the rear light clusters

15 Number plate illumination
On the tailgate (3-D and 5-D) on the rear sill (2-D and 4-D)

17 Extra rheostat for the lighting of switches and controls
On the left-hand side of the fascia

22A Fuse holder
In the electrical distribution box, in the engine compartment, on the left-hand wheel housing

54 Door switches, interior lighting
At the front of each door frame

55 Luggage compartment lamp
In the luggage compartment, on the left-hand side

56 Luggage compartment light switch
3-D and 5-D: at the luggage compartment lock
2-D and 4-D: in the luggage compartment, at the left hinge of the luggage compartment lid.

58 12-pole connector
On the angle bracket, under the fascia, to the left of the steering column (behind the knee shield)

60 Single-pole connector
One for the siren, in the engine compartment, behind the right-hand wheel housing
One for the bonnet switch, in the engine compartment, behind the right-hand headlamp

82 Seat belt/ignition switch warning relay
Under the back seat, on the left-hand side

85 Extra fog lamps
Under the front bumper

117 Earthing point
Between the ignition switch and the handbrake lever

122 8-pole connector
Under the back seat

151 Time-delay relay for the interior lighting
Under the back seat, on the left-hand side

152A 29-pole white connector
152B 29-pole red connector
In the engine compartment, in the electrical distribution box on the left-hand wheel housing. The connectors are accessible from the interior of the car.

175 Control unit for the central locking system
Under the fascia on the right-hand side, behind the knee shield

234 Side marker lights
In the front light clusters

275 Connector for the burglar alarm siren
In the luggage compartment, behind the right-hand wheel housing

276 Connector for the burglar alarm bonnet switch
In the luggage compartment, behind the right-hand wheel housing

288 Selector for the movement detector
On the centre console between the front seats

289 Connector for the burglar alarm control unit
Under the back seat

Operation
Cars delivered to certain markets, including the USA market, have provision for the installation of a burglar alarm. A special cable harness and an 8-pole connector (289) for connecting the burglar alarm control unit are included.

The control unit is supplied (+30) from fuse 24 across the white 29-pole connector 152A, pin 30 of relay 151 and pin 1 of control unit 289, regardless of the position of the ignition switch, and from pin 5 (+X) when the ignition switch is in the parked, drive or start position. On the 1990 model, +X is protected by fuse 20.

To prevent the burglar alarm from being set off, the ignition key must be turned within a certain time after a car door has been opened.

The movement detector can be switched on and off by means of ON/OFF switch 288 connected to pin 7 of the control unit (earth/no earth).

If the burglar alarm is activated, the alarm will be set off if one of the following contacts should close:

- Door switches 54 connected to pin 8.

- Luggage compartment light switch 56, luggage compartment lighting 55 or the HOOD switch, which are connected to pin 6.

When the alarm is set off, the siren will be supplied via pin 4, and the parking lights via pin 3.

The parking lights are supplied via pin 20 of white 29-pole connector 152A, and include:

13 Parking lights (front)
14 Rear lights
15 Number plate illumination
234 Side marker lights (certain markets)

Note: The wiring varies from one market to the next, and between the 3-D/5-D and 2-D/4-D models (see the section entitled "Parking lights").

Fault-tracing hints

1. Check that the supply to connector 289 (terminals 1 and 5) is live.
2. Check ON/OFF switch 288 for the movement detector.
3. Check the door switches, luggage compartment light switch and bonnet switch, and the corresponding connections to connector 289.
4. Check the connectors, cable harnesses and earth connections.

For fault-tracing hints on the parking lights, see "Parking lights".
