Parking Lamp

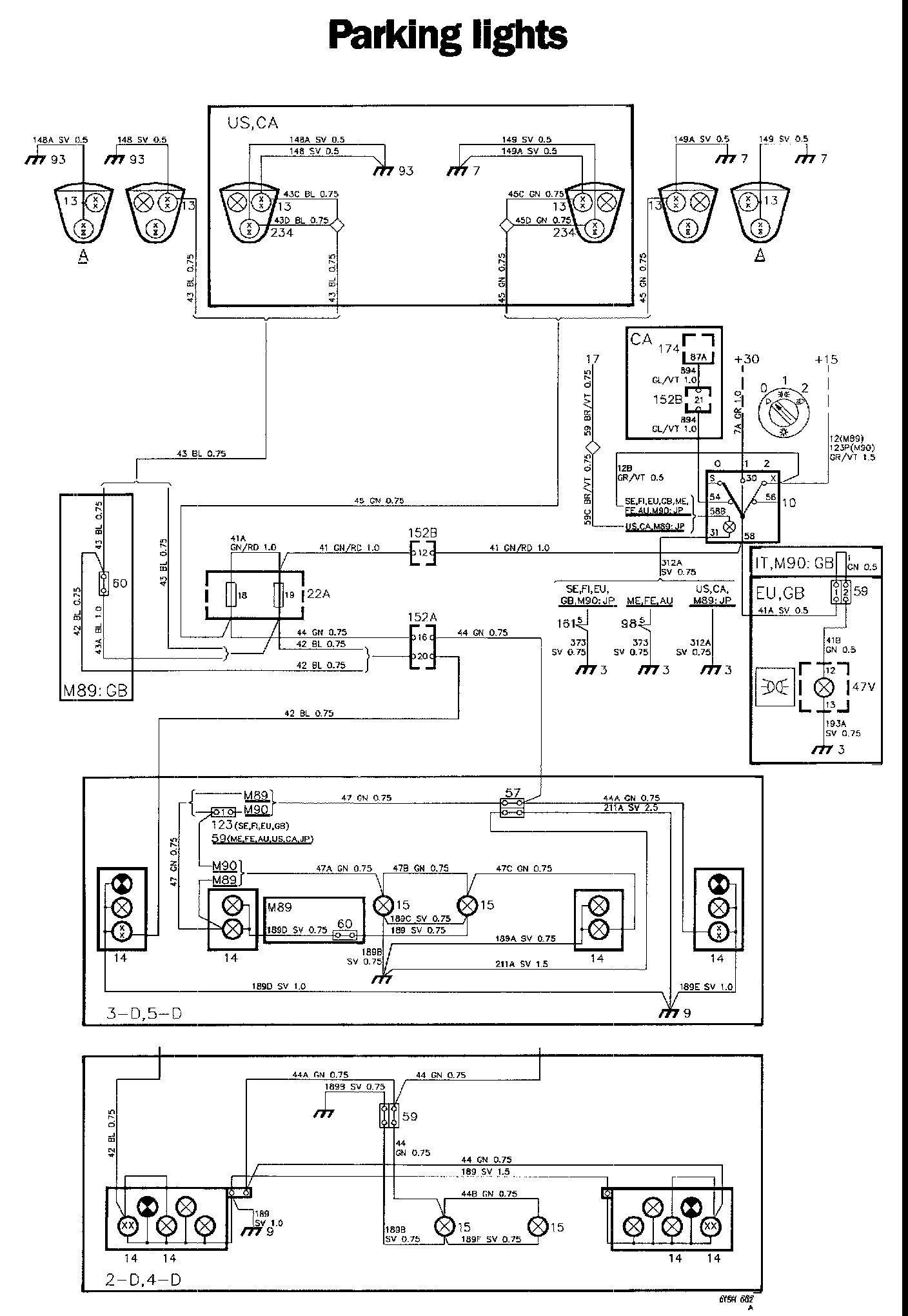

Parking Light Diagrams:




Parking Light Components:




Locations of components

3 Earthing point
In the fascia

7 Earthing point
On the radiator cross-member

9 Earthing point
In the luggage compartment

10 Light switch
On the left-hand side of the fascia

13 Parking lights
In the front light clusters

14 Rear lights, 3-D and 5-D
In the rear light clusters and on the tailgate
Rear lights, 2-D and 4-D
In the rear light clusters

15 Number plate illumination
On the tailgate (3-D and 5-D) on the rear sill (2-D and 4-D)

17 Extra rheostat for the lighting of switches and controls
On the left-hand side of the fascia

22A Fuse holder
In the electrical distribution box, in the engine compartment, on the left-hand wheel housing

47V Warning lamp, head lamps switched on
In the combined instrument in the instrument panel

57 3-pole connector (3-D and 5-D)
In the luggage compartment, at the left-hand air outlet

59 2-pole connector (2-D and 4-D) in the boot lid
In the fascia, beside light switch 10

59 2-pole connector (3-D and 5-D) (1990 model)
In the boot lid, on the left-hand side

60 Single-pole connector
Two in the electrical distribution box, in the engine compartment, on the left-hand wheel housing (GB) (1989 model) in the tailgate (3-D and 5-D)

93 Earthing point
On the left-hand wheel housing member

123 4-pole connector (3-D and 5-D) (1990 model)
In the luggage compartment, on the left-hand side

152A 29-pole white connector
152B 29-pole red connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connectors are accessible from the interior of the car

174 Relay for daylight driving lights (CA)
In the electrical distribution box in the engine compartment, relay position F

234 Side marker lights
In the front light clusters

Operation
The parking lights can be switched on and off by means of light switch 10, to which the supply (+30) is always live, regardless of the position of the ignition switch.

When the light switch is to position 1 - "Parking lights" the supply to parking lights 13 is taken across the red 29-pole connector 152B and fuses 18 and 19. The left-hand side of the car is supplied across fuse 19 and the right-hand side across fuse 18.

Rear lights 14 are also supplied across fuses 18 and 19 and the white 29-pole connector 152A. Number plate illumination 15 is supplied across fuse 18.

The rear-light supplies of the 3-D and 5-D models differ somewhat from each those of the 2-D and 4-D models. The 3-D and 5-D models are equipped with two additional rear lights (14) on the tailgate.

For particulars of the lighting wiring in light switch 10 on cars destined for US, CA and JP, see the section entitled "Lighting for controls, US, CA, JP".

Light fittings marked "A" are for cars without integrated bumpers.

US and CA markets
Cars for the US and CA markets are also equipped with side marker lights 234, which are supplied via parking lights 13. One-half of the bulb for each direction indicator is used for the corresponding side marker light.

GB market (1989 model)
Cars delivered to the GB market also have dim dipped beams. These cars are also provided with a single- pole connector 60 in the electrical distribution box.

CA market
On cars for the CA market, the parking lights will be switched on when the light switch is in position 0 and the ignition is switched on.

Italian market and 1989 cam for GB
Cars for these market are equipped with warning lamp 47V which lights up when the parking lights are switched on.

Fault-tracing hints
The parking lights are switched on when light switch 10 is set to position 1.

1. Check fuses 18 and 19 and check that the supply to them is live.
2. Check the bulbs and check that the supply to them is live. Check the earthing at each lamp.
3. Check the operation of light switch 10 by measuring at the light switch terminals.
4. Check the connectors, cable harnesses and earth connections.
