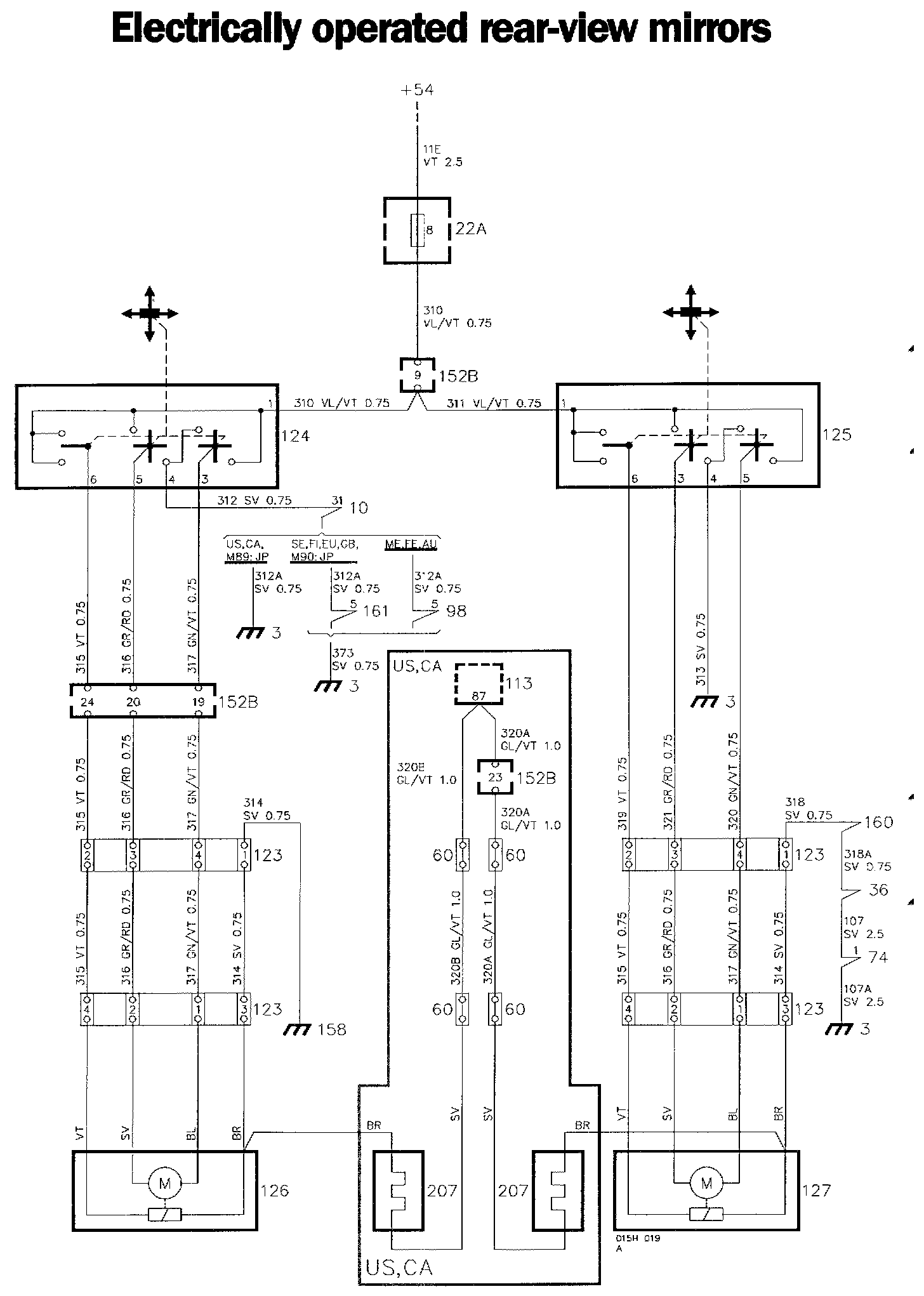

System Diagram

Mirror Diagrams:

Mirror Components:

Locations of components

3 Earthing point
In the fascia

10 Light switch
On the left-hand side of the fascia

22A Fuse holder
In the electrical distribution box, in the engine compartment, on the left-hand wheel housing

60 Single-pole connector
One in the engine compartment, at the upper hinge of the left-hand front door, behind the electrical distribution box
One in the left-hand front door
One in the engine compartment, at the upper hinge of the right-hand front door
One in the right-hand front door

98 10-pole connector
To the left of the steering column, under the fascia (behind the knee shield)

113 Relay/time-delay relay for the electrically heated rear window
In the electrical distribution box in the engine compartment, relay position C

123 4-pole connector
One in the engine compartment, at the upper hinge of the left-hand front door, behind the electrical distribution box
One in the left-hand front door
One in the engine compartment, at the upper hinge of the right-hand front door
One in the right-hand front door

124 Switch for the left-hand electrically operated rear-view mirror
On the fascia, to the left of the steering column

125 Switch for the right-hand electrically operated rear-view mirror
On the fascia, to the right of the steering column

126 Motor for the left-hand electrically operated rear-view mirror
In the left-hand rear-view mirror

127 Motor for the right-hand electrically operated rear-view mirror
In the right-hand rear-view mirror

152B 29-pole red connector
In the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car.

158 Negative distribution terminal
In the electrical distribution box in the engine compartment, on the left-hand wheel housing

161 Switch for the rear fog lights
On the left-hand side of the fascia

207 Electrically-heated rear-view mirrors
One on each front door

Operation
Each of the outer rear-view mirrors is operated by means of a four-position switch.

The two switches 124 (left) and 125 (right) are supplied from fuse 8, via red 29-pole connector 152B. Each rear-view mirror will turn in the direction in which the switch lever is moved. For horizontal setting, only the mirror motors are used. For vertical setting, a solenoid is also energized, which causes the motors to move the mirrors vertically instead of horizontally.

The following table lists the cables that are live / earthed in each switch position:

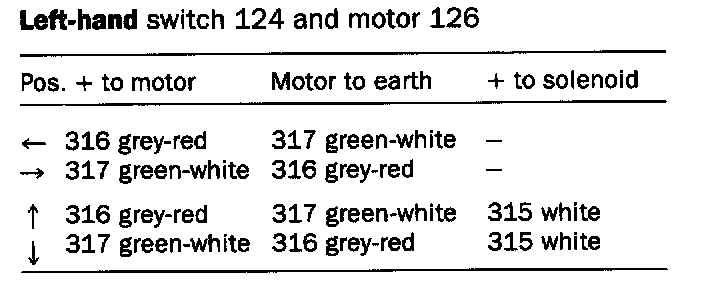

Left-Hand:

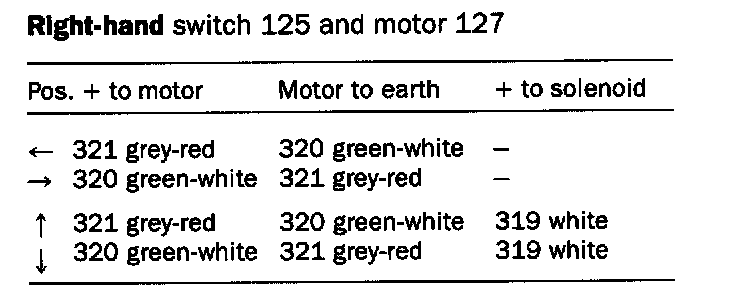

Right-Hand:

US and CA markets
Cars for these markets are equipped with electrically heated rear-view mirrors 207, which are supplied via the switch for the heating of the rear window.

Fault-tracing hints
The rear-view mirrors will be operative when the ignition switch is in the drive position.

1. Check fuse 8 and check that the supply to it is live.
2. Check that the supply to the corresponding switch is live.
3. By operating the switch, check that the supply to the corresponding motor and to the solenoid is live. The table shown in the "Operation" section lists the cables that are live in each switch position.
4. Check the connectors, cable harnesses and earth connections.
