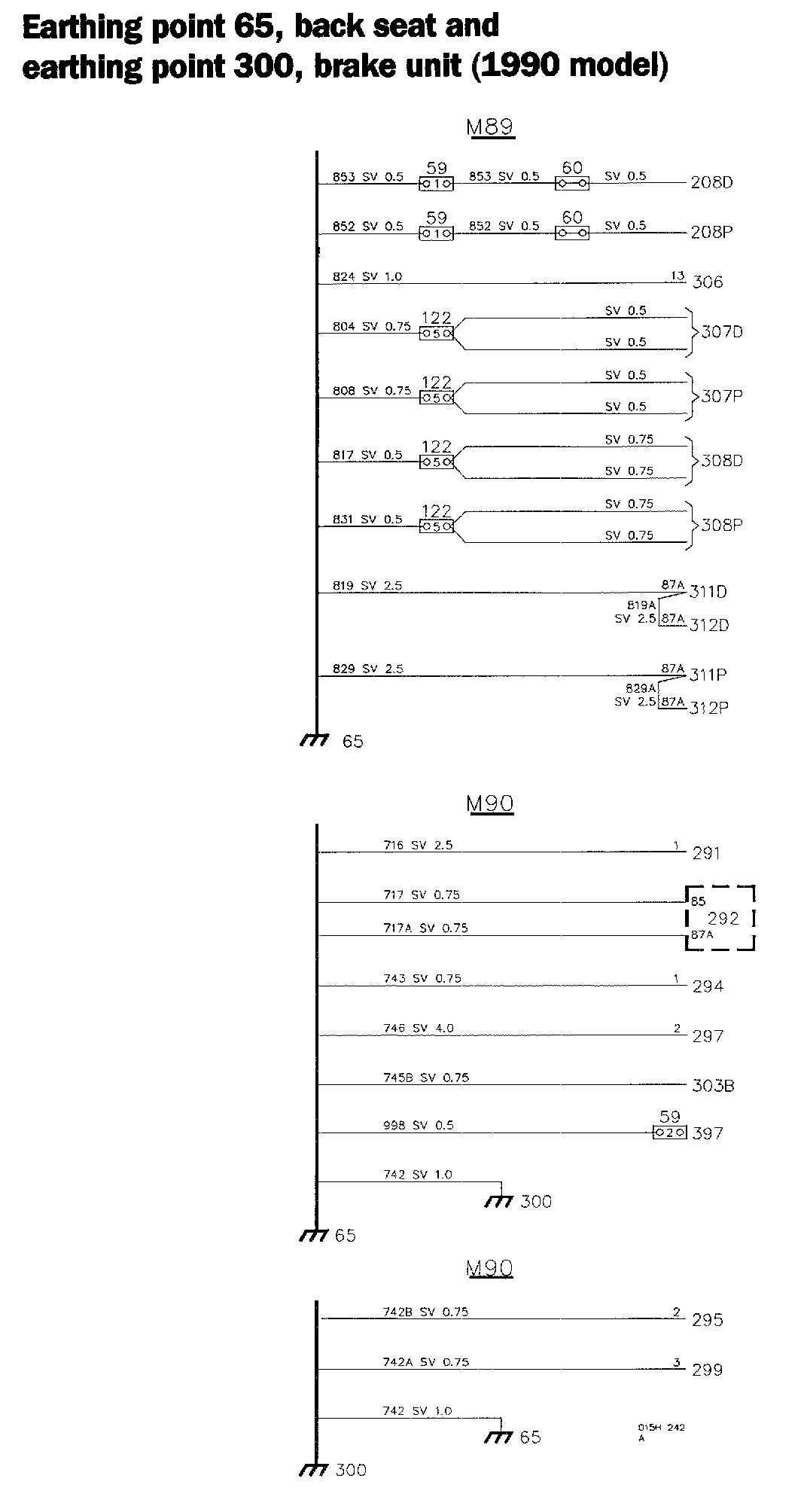

Earthing Point 65, 300 (M1990)

Earth Connections:

Earthing Point 65, 300 (M1990):

Components connected
Earthing point 65 is located under the back seat, in the centre. The following components are connected to this earthing point. For passive seat belts (1989 model).

208D Door lock, reed switch, driver's door
208P Door lock, reed switch, co-driver's door
306 Logic box for passive seat belts
307D Belt reel for passive seat belts, driver's side
307P Belt reel for passive seat belts, co-driver's side
308D Motor with limit switches for passive seat belts, driver's side
308P Motor with limit switches for passive seat belts, co-driver's side
311D Motor relay for passive seat belts, driver's side
311P Motor relay for passive seat belts, co-driver's side
312D Motor relay for passive seat belts, driver's side
312P Motor relay for passive seat belts, co-driver's side

For ABS anti-lock brakes (1990 model)
291 Control unit
292 System relay
294 Pressure switch
297 Hydraulic pump motor
303B Diode
397 Diagnostic test socket

Earthing point 300 is located on the front of the brake unit and, in turn, is earthed at earthing point 65 (1990 model). The following components are connected to this earthing point:

295 ABS master valve
299 ABS brake fluid level sensor
