Earthing Point 7

Earth Connections:

Earthing Point 7:

Components connected

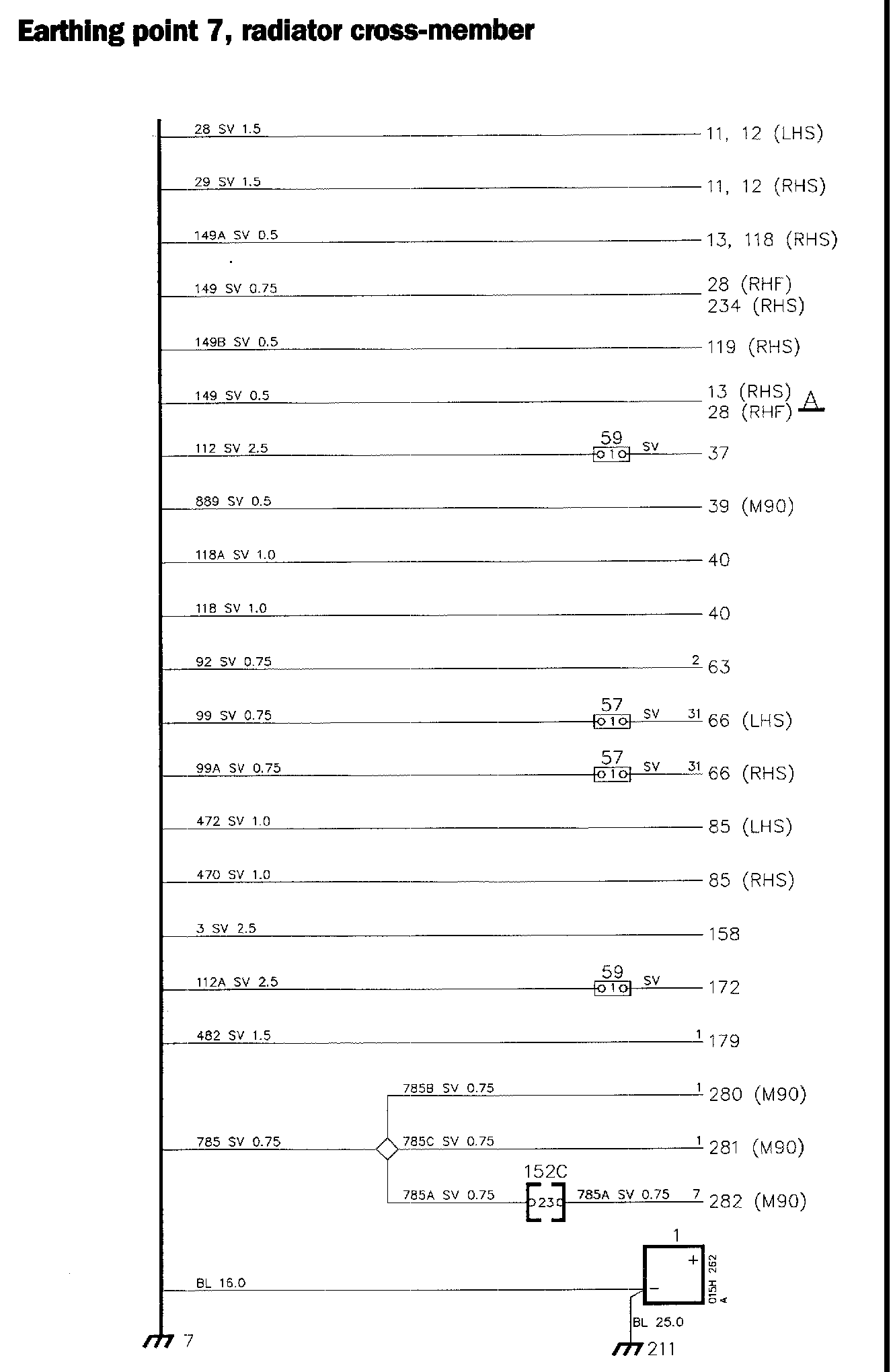

Earthing point 7 is located below the radiator, on the right-hand side of the radiator cross-member. The following components are connected (by means of screw terminals) to this earthing point. Some of the components listed below are fitted only to cars of certain versions or for certain markets.

Negative distribution terminal 158 in the electrical distribution box is also connected to earthing point 7.

Connections marked with "A" apply to cars without integrated bumpers.

1 Battery
11 Headlamp full beam
12 Headlamp dipped beam
13 Parking lights
28 Direction indicator lamp, right-hand front
37 Radiator fan motor (across 2-pole connector 59 at the radiator)
39 Temperature switch for radiator fan (1990 model)
40 Horn
63 Washer motor
66 Headlamp wiper motor (across 3-pole connector 57 in the engine compartment at the corresponding motor)
85 Extra fog lamps
118 Corner lights
119 Side reversing light (RHS)
158 Negative distribution terminal
172 Radiator fan for the AC (across 2-pole connector 59 at the radiator fan motor)
179 Solenoid valve for the APC system
211 Earthing point on the gearbox
234 Side marker lights (RHS)
280 Motor for left-hand headlamp beam control (1990 model)
281 Motor for left-hand headlamp beam control (1990 model)
282 Switch for headlamp beam control (across black 29-pole connector 152C in the electrical distribution box in the engine compartment) (1990 model)
