Automatic Transmission/Transaxle: Tools and Equipment

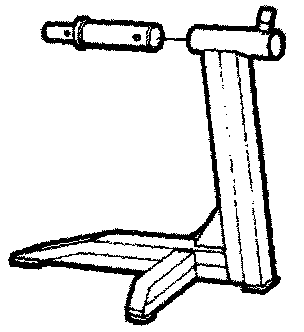

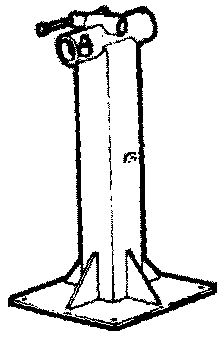

78 60 794 (A1) Floor stand for permanent mounting




78 60 877 Bench stand, movable (alt. to 78 60 794)

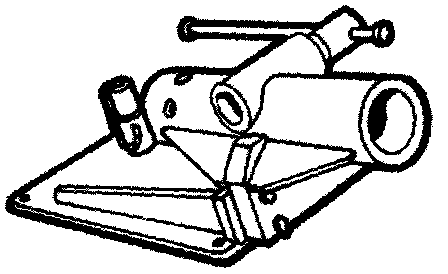

78 60 885 Vice stand




78 61 479 (A2) Stand
83 90 478 (A2) Spindle for stand

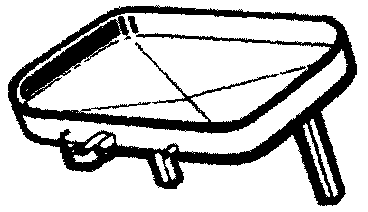

78 60 802 (A2) Oil pan




83 90 460 (A2) Gearcase support bracket

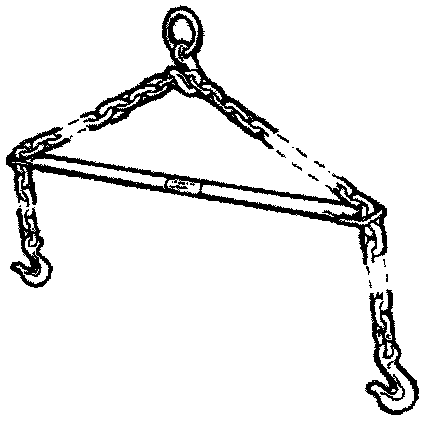

83 92 409 (A1) Lifting yoke




83 93 175 (A1) Lever for removing the clutch shaft (can also be used for fitting the spacer ring)




83 90 023 (A1) Spacer ring for clutch




87 90 370 (A1) Spanner for special nut for gear lever housing. Also automatic transmission.




83 93 209 (A1) Spacer tool for relieving the load of the suspension spring assembly when lifting out the power unit (see also Group 2)




87 90 776 (A1) Puller for inner drive-shaft universal joint with bearing cap. Also used for automatic transmission.




87 90 197 (A2) Hook wrench for layshaft




83 90 049 (A2) Puller for fitting and removing the reverse gear shaft and layshaft




87 90 503 (A2) Locking tool for reverse gearwheel




87 90 511 (A2) Puller for output shaft
78 40 853 Screw (for output shaft puller)




87 90 438 (A2) Guide pin for pinion bearing housing and input shaft bearing housing (two needed). Also for automatic transmission




83 90 148 (A2) Sleeve for fitting of output shaft unit, inner roller bearing, pinion, primary chaincase roller bearing inner race and layshaft outer bearing. For removing of primary drive roller bearing, bearing housing outer races, layshaft inner race and clutch shaft seal.




83 90 114 (A2) Sleeve for fitting of 4th gear, bearing housing outer race, pinion and pinion shaft unit.




87 90 552 (A2) Gauge for output shaft position in relation to the gearcase.




87 90 636 (A2) Fixture for removing and fitting the pinion bearing




87 91 972 (A2) Fitting ring (used together with tool 87 90 636). For fitting the output shaft (5-speed).




87 90 933 (A2) Puller ring (used with tool 87 90 636). For removing input shaft roller bearing.




87 90 453 (A2) Spanner for output shaft nut.




83 90 122 (A2) Drift for fitting the bearing housing outer race (pinion) and ball bearing on 4th gear, and removing primary sprocket with bearing from bearing housing.




83 90 098 (A2) Dolly for fitting and removing the roller bearing housing outer races and output shaft




83 90 106 (A2) Drift for removing the pinion roller bearing outer race




83 90 189 (A2) Drift for fitting input pinion with ball bearing, and removing outer races from bearing seats, outer race and seal from steering knuckle housing. Also for automatic transmission.




87 90 461 (A2) Sleeve for bearing race in pinion bearing housing. Also used for automatic transmission.




83 90 446 Holder for output shaft




87 90 487 (A2) Sleeve for differential housing bearing. Also for automatic transmission.




87 90 677 (A2) Tool for removing the selector rod seal.




87 90 685 (A1) Tool for fitting the selector rod seal.




83 90 155 (A2) Measuring jig for pinion position.




89 96 084 (A1) Puller for removing the front and rear axle hubs, differential housing bearing race, and engine chain sprocket.




87 90 768 (A2) Puller for removing the bearing races from the differential housing and gearcase




89 95 177 (A2) Dolly for removing the bearing race from the differential housing




87 90 800 (A2) Drift for pressing the seal into the differential bearing housing




78 41 141 (A2) Sleeve for pressing in the ball bearing into the differential bearing housing.




78 41 067 (A2) Sleeve for removing the ball bearing from the differential bearing housing and fitting the bail bearing onto the inner driver.




87 90 818 (A2) Driver for measuring the differential bearing rolling resistance.




83 91 997 (A2) Drift for clutch shaftseal and needle bearing in primary chaincase.




87 90 867 (A2) Ring for fitting the roller bearing onto the gearbox input shaft.

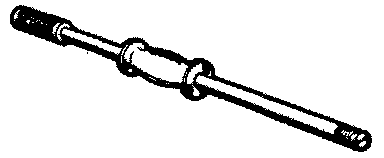

83 90 270 (A2) Sliding hammer.




87 90 909 (A2) Spacer bolts (4 for tool 87 90 511). For pressing out the output shaft.




83 90 312 (A2) Drift for pressing the bearing races onto the input shaft.




78 41 075 (A2) Sleeve for fitting the input shaft roller bearing.




87 90 891 (A2) Puller sleeve for primary drive sprocket. Used together with sliding hammer 83 90 270




87 90 917 (A2) Adapter (for sliding hammer). For removing/fitting the input shaft

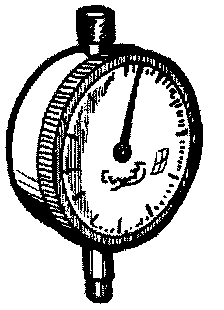

78 40 622 Dial indicator.




87 90 727 Holder for dial indicator. For measuring the backlash in the final drive.




87 91 576 Locating tool for presetting the gear positions.




87 91 964 Ring for fitting the rear pinion bearing race.
