Drive Belt

Drive Belt Arrangement:

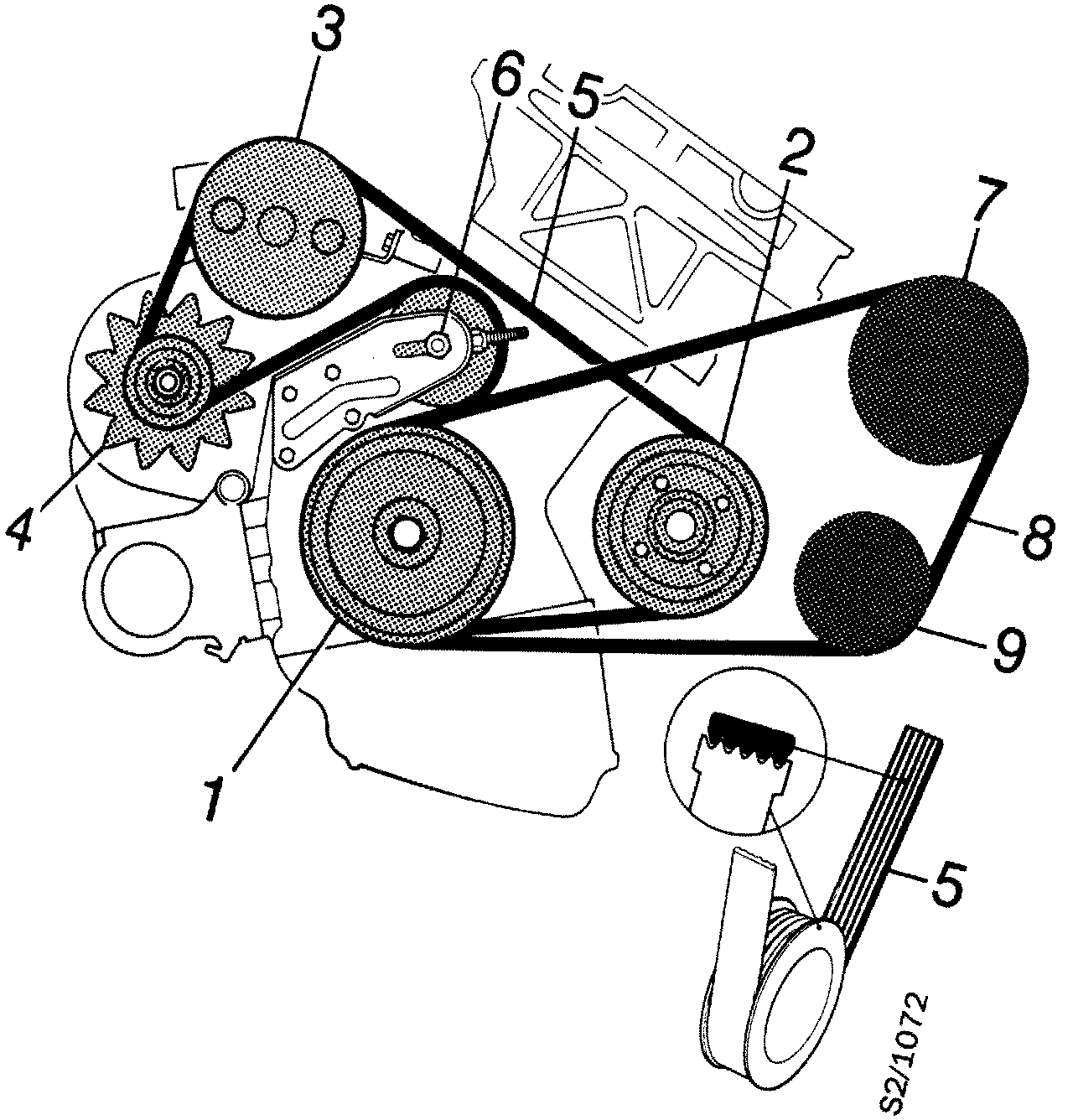

Drive Belt Routing Diagram With Out Auto Tensioner.
1- Crankshaft pulley
2- Water-pump pulley (multi-groove belt)
3- Steering servo pump pulley (multi-groove belt)
4- Alternator pulley (multi-groove belt)
5- Multigroove belt
6- Idler-wheel pulley (multi-groove belt)
7- AC compressor
8- Compressor drivebelts
9- Idler-wheel pulley (compressor belt)

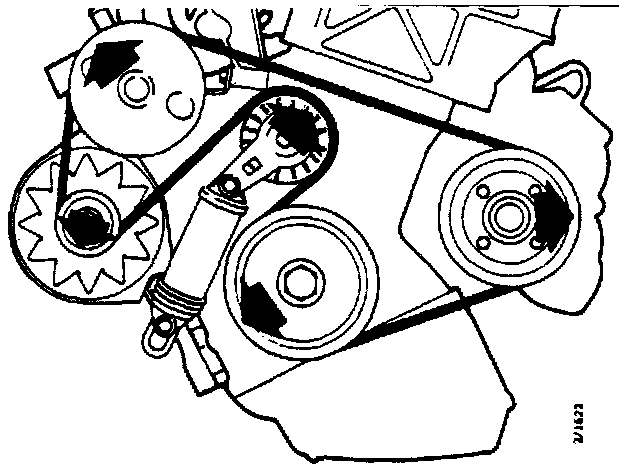

Drive Belt Routing Diagram With Auto Tensioner.
