Home
>>
Saab
>>
1989
>>
9000 L4-1985cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
W/Manual Transaxle
W/Manual Transaxle

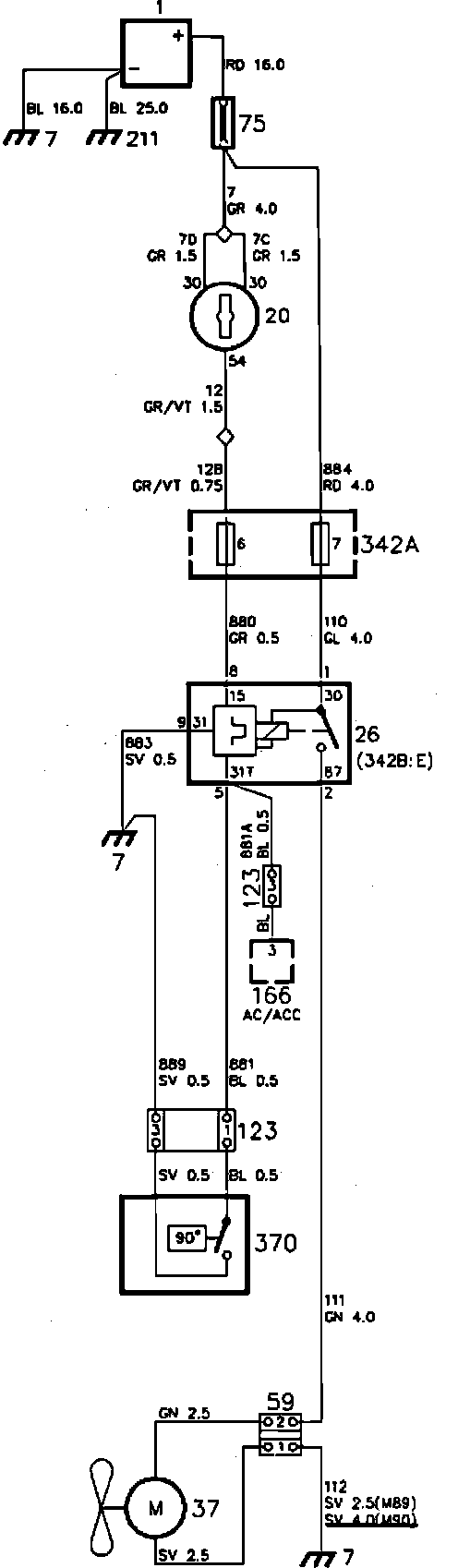

Fig. 3 Cooling Fan Wiring Circuit w/Manual Transaxle:
