Home >> Saab >> 1989 >> 9000 L4-1985cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> Interior

Interior

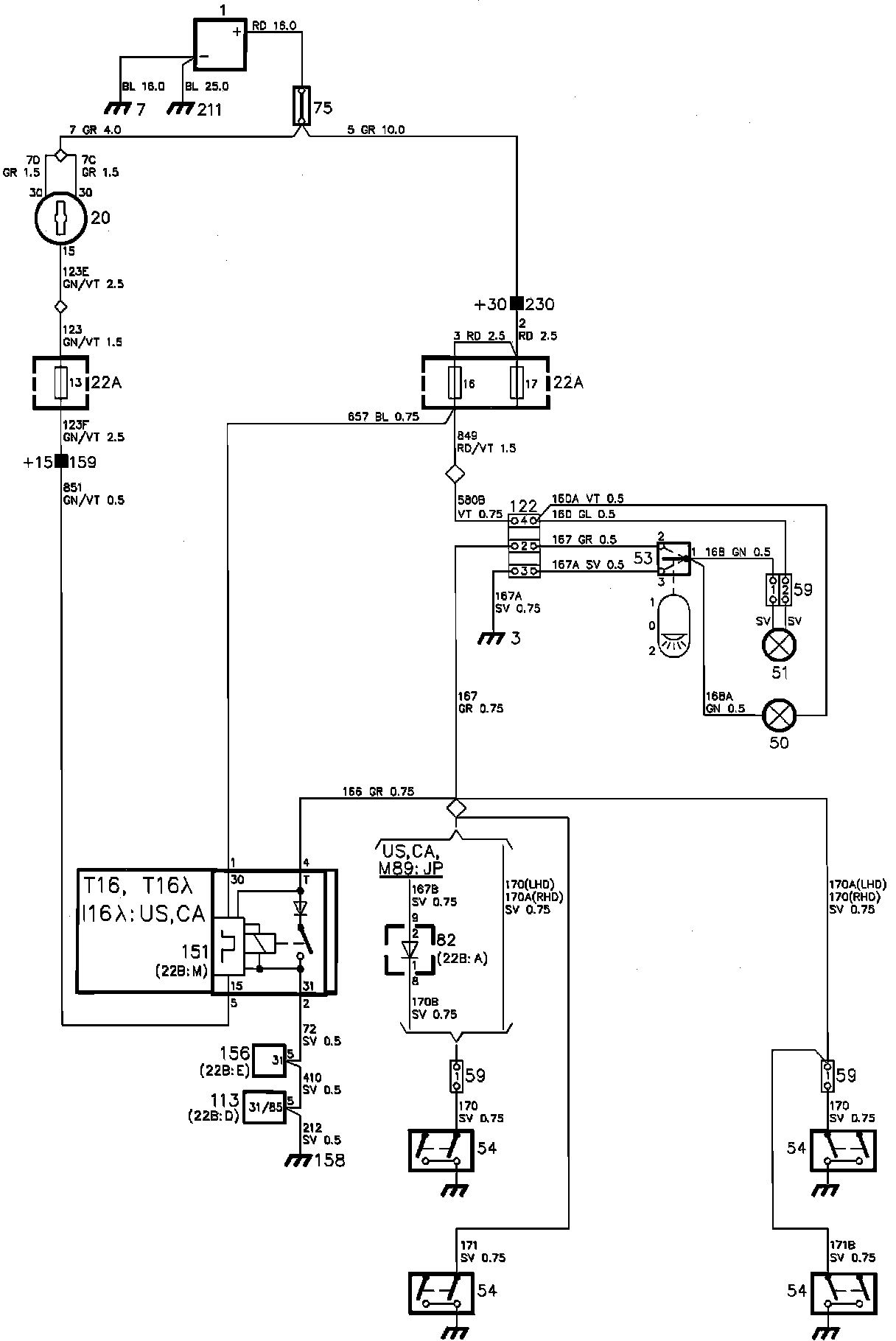

Interior Lighting With Time Delay:
