Convertible Top: Locations

Convertible Top Components:

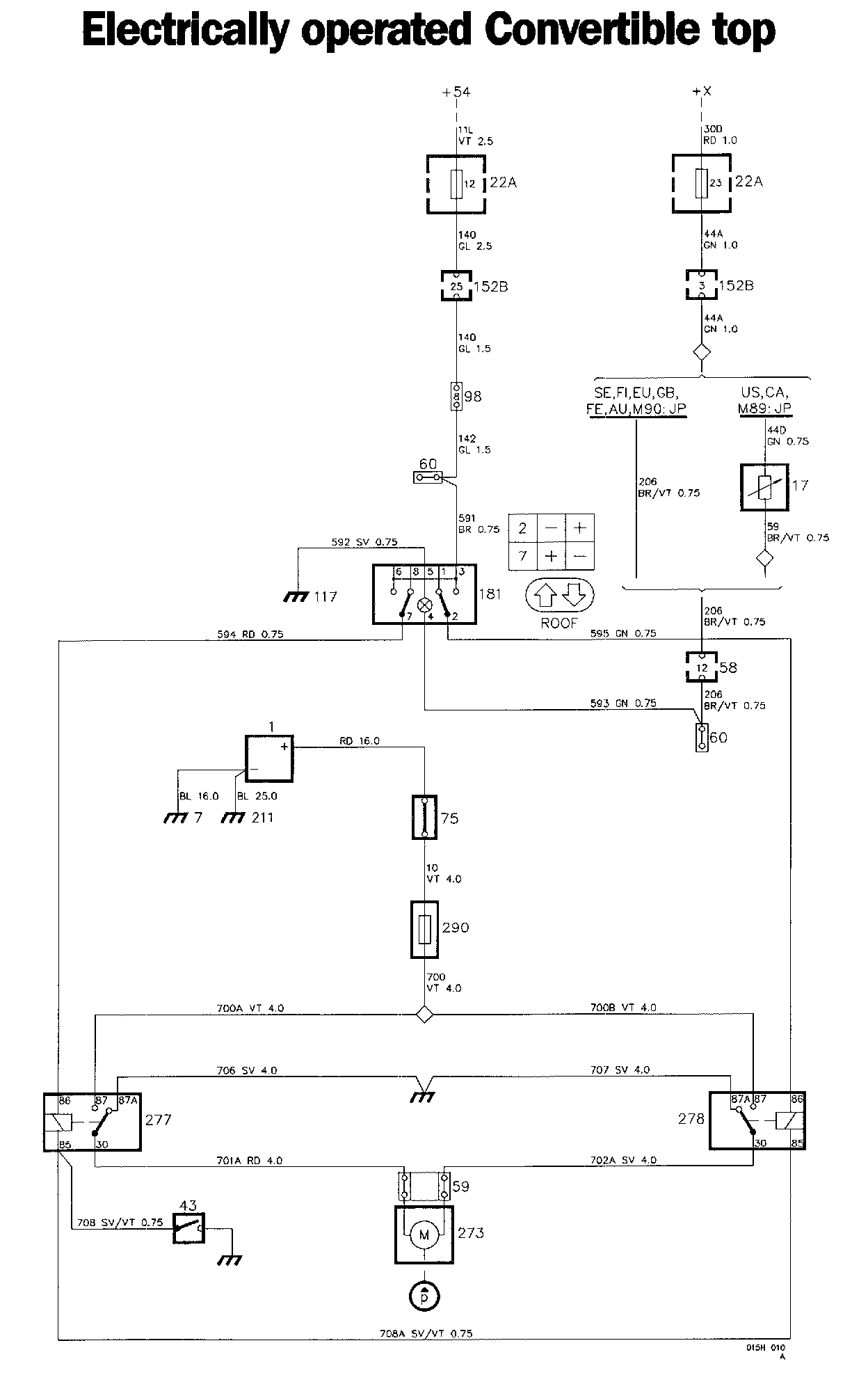

Convertible Top Diagrams:

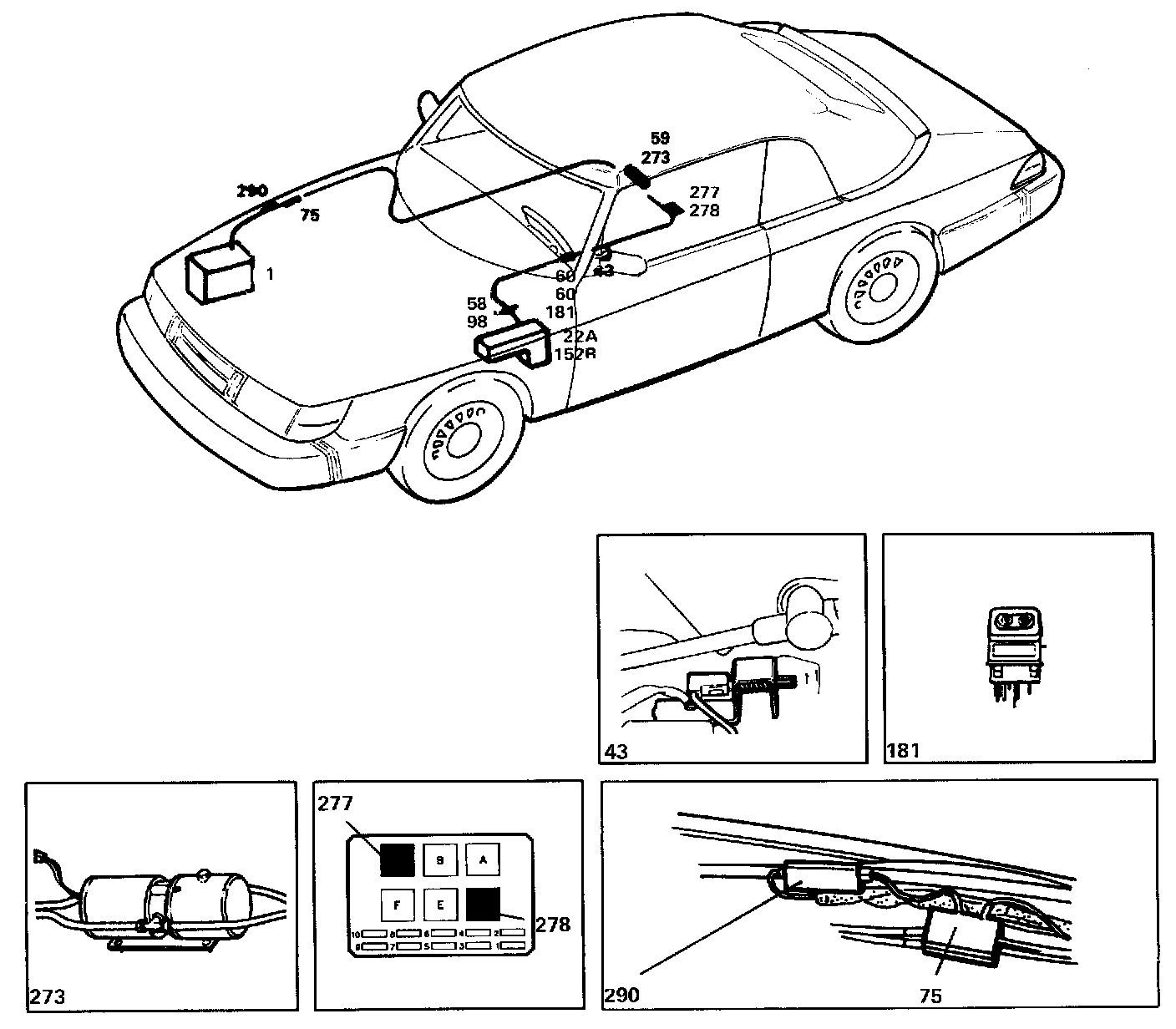

Locations of components

1 Battery
On the right-hand side of the engine compartment

7 Earthing point
On the radiator cross-member

17 Extra rheostat for the lighting of switches and controls
On the left-hand side of the fascia

22A Fuse holder
In the electrical distribution box, in the engine compartment, on the left-hand wheel housing

43 Handbrake switch
Under the plastic cover at the handbrake lever

58 12-pole connector
On the angle bracket, under the fascia, to the left of the steering column

59 2-pole connector
At the motor for the top

60 Single-pole connector
Two under the centre console, between the front seats

75 Distribution block
In the engine compartment, on the side of the right-hand wheel housing

98 10-pole connector
Under the fascia, to the left of the steering column

117 Earthing point
Between the ignition switch and the hand brake lever

152B 29-pole red connector
In the engine compartment, in the electrical distribution box on the left-hand wheel housing. The connector is accessible from the interior of the car.

181 Switch for the electrically operated top
Between the seats, on the the centre console

211 Earthing point
On the gearbox

273 Motor for the hydraulic pump
Under the back seat, on the right-hand side

277 Relay for raising the top
In the electrical distribution box under the back seat, relay position C

278 Relay for lowering the top
In the electrical distribution box under the back seat, relay position D

290 Fuse for the top
In the engine compartment, on the right-hand side (at distribution block 75)

Operation
Two hydraulic cylinders actuated by oil from an electric-motor driven hydraulic pump are used for raising and lowering the top.

Switch 181 for operating the top is supplied from fuse 12 via red 29-pole connector 152B and 10-pole connector 98.

When the top is being lowered, current flows from pin 2 on the switch to relay 278, which is energized. The relay coil is earthed across switch 43 for the handbrake warning lamp, and the handbrake must therefore be applied before the top can be operated.

Motor 273 of the hydraulic pump (P) is now supplied across the relay contacts from battery land fuse 290 (25 A). The motor is earthed through the second relay (277) which is de-energized.

To raise the top, the direction of rotation of the motor is reversed, since relay 277 is energized instead, and relay 278 is de-energized.

For a complete description of the wiring for the lighting of switch 181 on cars for the US and CA markets and 1989 model for JP, see also the section entitled "Lighting systems, Lighting for controls - US, CA and 1989 for JP".

Fault-tracing hints
The top can be operated when the ignition switch is in the drive position and the handbrake is applied.

1. Check fuse 12 and check that the supply to it is live.
2. Check that the relays for raising and lowering the top perform correctly.
3. Check that the relays are energized at terminal 87 and that the hydraulic pump motor is energized when the switch is actuated.
4. Check the connectors, cable harnesses and earth connections.
