Brake Lamp

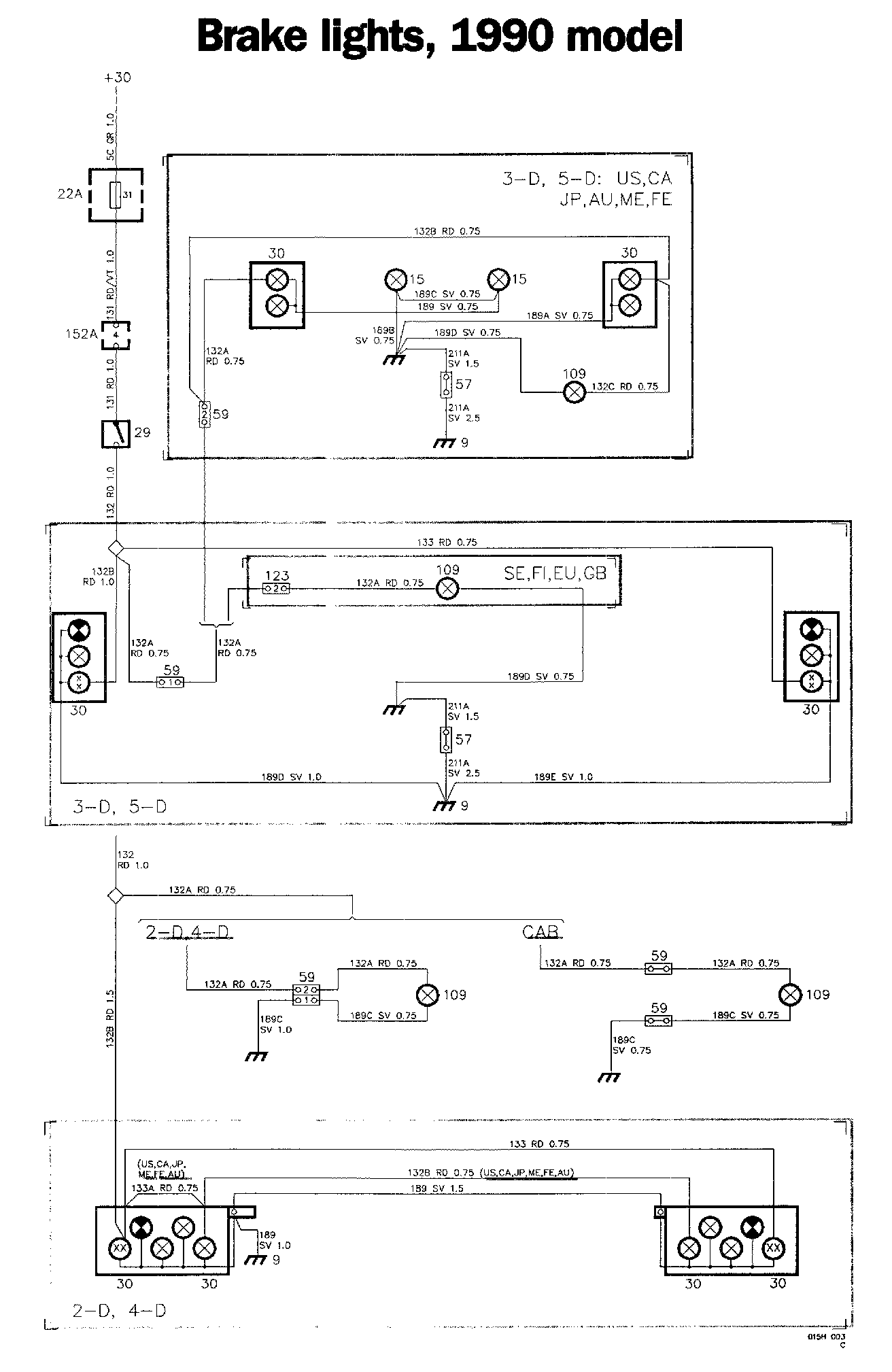

Brake Light Diagrams:

Brake Light Components:

Locations of components

9 Earthing point
In the luggage compartment

15 Number plate illumination
On the tailgate (3-D and 5-D)
On the rear sill (2-D and 4-0)

22A Fuse holder
In the electrical distribution box, in the engine compartment, on the left-hand wheel housing

29 Brake light switch
At the brake pedal

30 Brake lamps
In the rear light clusters on certain markets, also in the tailgate (3-D and 5-D)

57 3-pole connector (3-D and 5-D only)
In the luggage compartment, at the left-hand air outlet

59 2-pole connector
One in the boot, to the left, under the parcel shelf (2-D and 4-0)
Two in the boot, at the left-hand boot lid hinge, behind the trim (Convertible)

59 2-pole connector (3-D and 5-D) (1990 model)
One in the luggage compartment, at the left-hand air outlet
One in the tailgate, on the left-hand side

60 Single-pole connector (3-D and 5-D only) (1989 model)
One in the luggage compartment, at the left-hand air outlet
Two in the tailgate, at the left-hand light cluster (US, CA, JP, AU, ME, FE)
One in the tailgate, at the left-hand light cluster (SE, FI, GB)

109 High-level brake light
At the bottom of the rear window in the spoiler, on the boot lid (Convertible)

123 4-pole connector (3-D and 5-D) (1990 model)
In the tailgate, on the left-hand side

152A 29-pole white connector
In the electrical distribution box in the engine compartment on the left-hand wheel housing. The connector is accessible from the interior of the car.

Operation
The supply to brake light switch 29 is taken from fuse 31, across the white 29-pole connector 152A. When the brakes are applied, the contacts will close and brake lamps 30 will be energized.

Depending on the market, one or two lamps (30) are used on each side for the brake lights. If two lamps are used, the second lamp is connected by means of cable 132A (3-D and 5-D) or cable i32B and cable 133A (2-D and 4-D).

European market
Only one lamp on each side will light up when the brakes are applied. (The extra lamps are used for the rear fog lights instead.)

Cars for the SE, FI, EU and GB markets are fitted with high-level brake light at the bottom of the rear window. On 3-D and 5-D cars, the brake light is connected across a two-pole connector in the luggage compartment at the left-hand air outlet and a 4-pole connector in the tailgate, whereas on the 2-D and 4-D models, it is connected across two-pole connector 59.

Australian, Middle East, Far East, USA, Canadian and Japanese markets
On cars for these markets, two lamps will light up on each side of the car when the brakes are applied.

In addition, cars for these markets are equipped with high-level brake light 109 at the bottom of the rear window. On 3-D and 5-D cars, the brake light is connected to the right-hand light cluster in the tailgate, whereas on the 2-D and 4-D models, it is connected across two-pole connector 59.

Convertible
On the Convertible, high-level brake light 109 is located in the spoiler and is connected by means of two 2-pole connectors 59. The connectors are located at the left-hand hinge of the boot lid.

Fault-tracing hints

1. Check fuse 31 and check that the supply to it is live.
2. Check that the supply to brake light switch 29 is live.
3. Operate the brake light switch. Check the bulbs and check that the supplies to them are live. Check the earthing at each lamp.
4. Check the connectors, cable harnesses and earth connections.
