Seat Belt Reminder Lamp

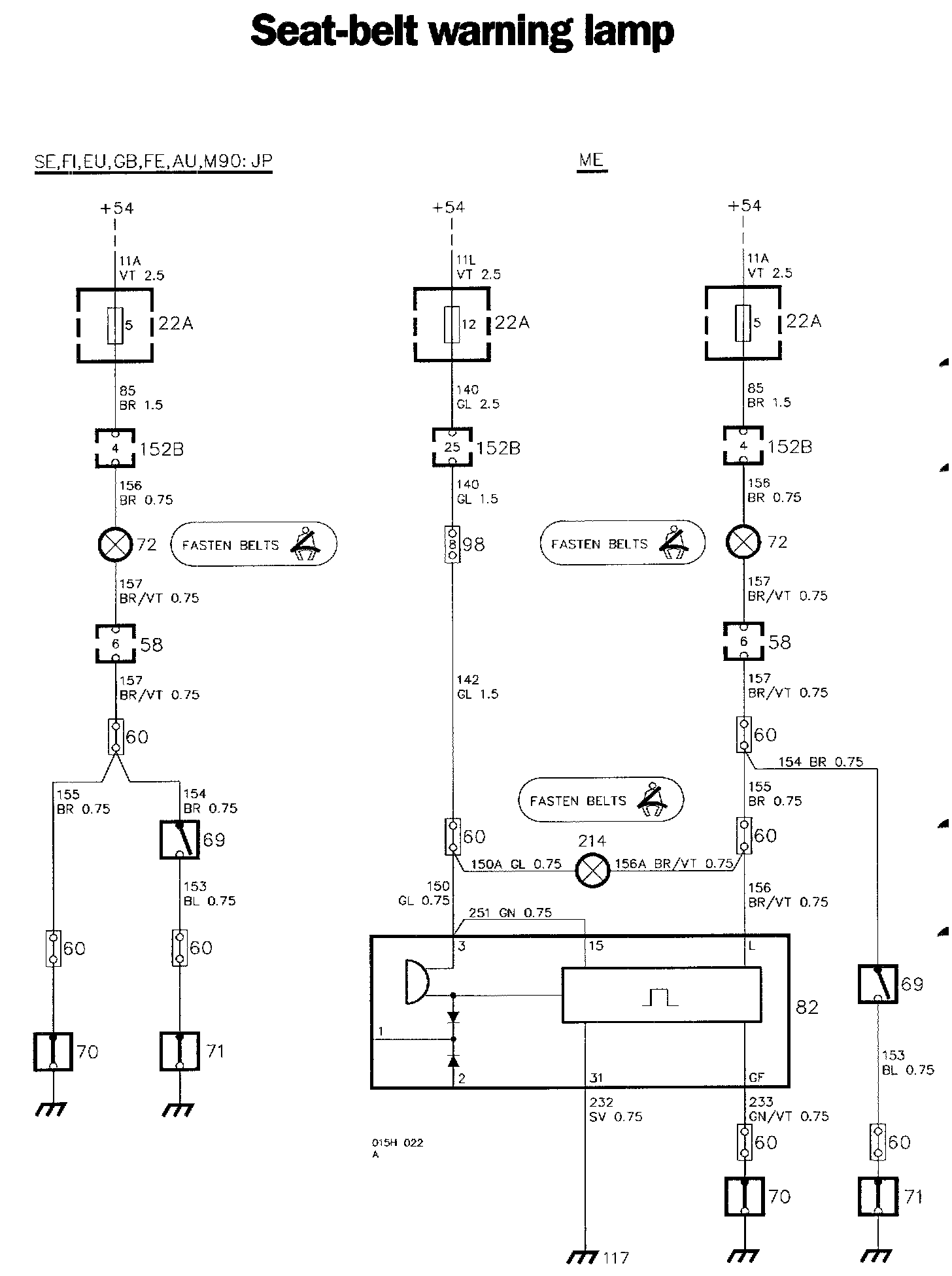

Seat-belt Warning Lamp Diagrams:

Seat-belt Warning Lamp Components:

Locations of components

22A Fuse holder
In the electrical distribution box, in the engine compartment, on the left-hand wheel housing

58 12-pole connector
To the left of the steering column, behind the knee shield, below the fascia

60 Single-pole connector
One at the corresponding seat-belt lock
One between the front seats, under the centre console
Three between the front seats, under the centre console (ME)

69 Co-driver's seat switch for seat-belt warning lamp
Under the co-driver's seat

70 Seat-belt switch - driver's side
Between the driver's seat and the co-driver's seat

71 Seat-belt switch - co-driver's side
Between the driver's seat and the co-driver's seat

72 Seat-belt warning lamp
In the centre of the fascia

82 Seat belt/ignition switch warning relay
Under the back seat, on the left-hand side in the electrical distribution box under the back seat, relay position E (Convertible)

98 10-pole connector
To the left of the steering column, behind the knee shield, below the fascia

117 Earthing point
Between the ignition switch and the handbrake lever

152B 29-pole red connector
In the engine compartment, in the electrical distribution box on the left-hand wheel housing. The connector is accessible from the interior of the car.

214 Seat-belt warning lamp on the centre console (ME)
On the centre console, between the front seats

Operation
The supply is taken from fuse 5 via 29-pole red connector 152B and seat-belt warning lamp 72 to the driver's seat-belt switch 70. The switch connects the warning lamp to earth, and the warning lamp will thus light up. When the seat-belt buckle is inserted into the lock, the switch will open the circuit and the lamp will be extinguished.

Seat switch 69 is connected in series with seat-belt switch 71 on the co-driver's side. The seat switch will close when a load is applied to the seat. The warning lamp with thus light up only if a person is seated in the co-driver's seat and the seat belt is not fastened.

Cars for the ME market
Cars for this market are equipped with warning relay 82 and an extra seat-belt warning lamp 214, which is fitted on the centre console.

The driver's seat-belt switch 70 connects terminal GF of the relay to earth, causing the warning lamps to light up and the buzzer to sound. When the seat-belt buckle is inserted into the lock, the switch will open, the lamps will be extinguished and the buzzer will be Silenced.

Fault-tracing hints
The seat-belt warning lamp will be operative when the ignition switch is in the drive position.

1. Check fuse 5 (and fuse 12, if fitted) and check that the supply to them is live.
2. Check seat-belt warning lamp 72 (and 214, if fitted).
3. Check seat-belt switches 70 and 71, and seat switch 69.
4. Check the connectors, cable harnesses and earth connections.
