Manual Transmission

Before Mounting The Engine On The Gearbox
- Make sure that the joint faces of the engine and gearbox are thoroughly clean.
- Make sure that the two locating sleeves are fitted to the gearbox.

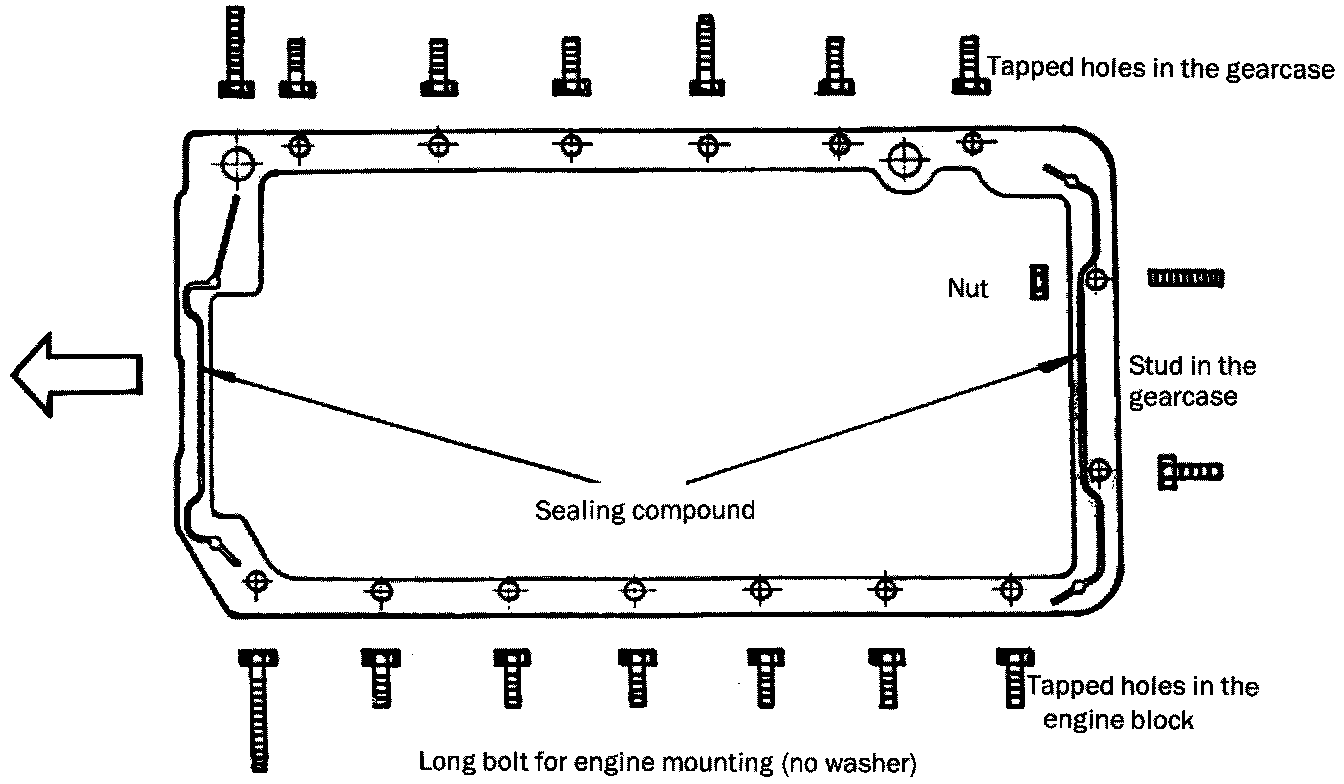

- Fit a new gasket to the gearcase joint face. Apply sealing compound to both grooves in the gasket as shown in the upper figure.





- Apply thread sealing compound to the six bolts marked in the figure.

Assemble In The Reverse Order, refer to "To Separate the Engine From the Gearbox". Service and Repair

NOTES:
- The guide sleeve for the release bearing must be held in position against the clutch as the engine is being lowered onto the gearbox.





- Tightening torque for the engine/gearbox joint bolts:
^ 25Nm +/- 3 Nm (18.5 +/- 2.2 lb ft)
