Brakes - ABS Wiring Harness Diodes Available
90saab06 CATEGORY Microfiche DiscrepancySECTION PAGE
14 3
ISSUE CODE
07/90-0016 365
Subject: Diodes in ABS Wiring Harness
Application: M90-900 U.S. Edition 3, Grid 1-H04 M86-89 9000 U.S. Edition 16, Grid 2-C22 M90-9000 U.S. Edition 3, Grid 1-116

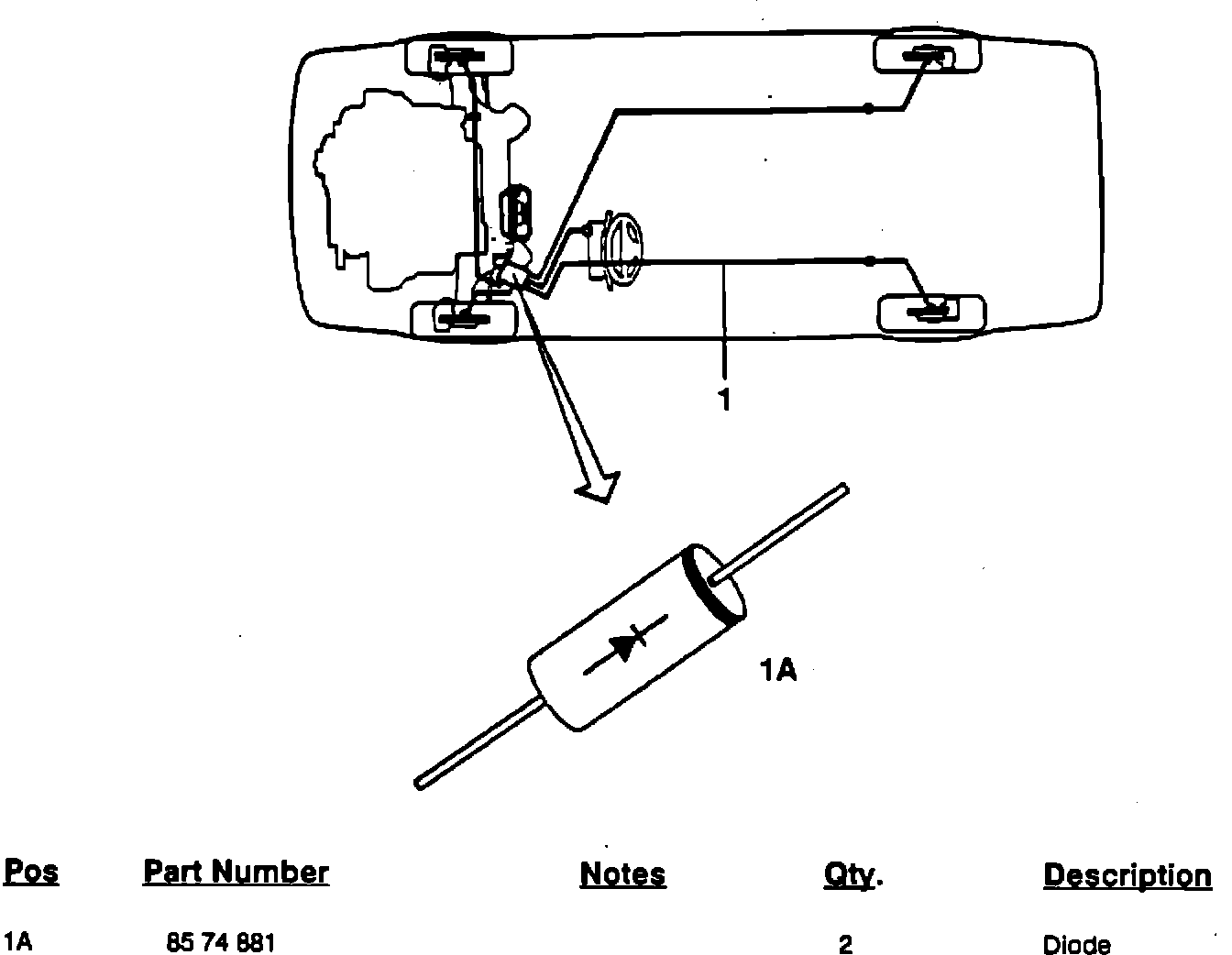

The ABS wiring harness for both 900 and 9000 models contains two diodes located below the panel in the ABS fuse/relay box. These diodes, though not shown on the spare parts fiche, are available as separate spare parts. See below for complete spare parts information.

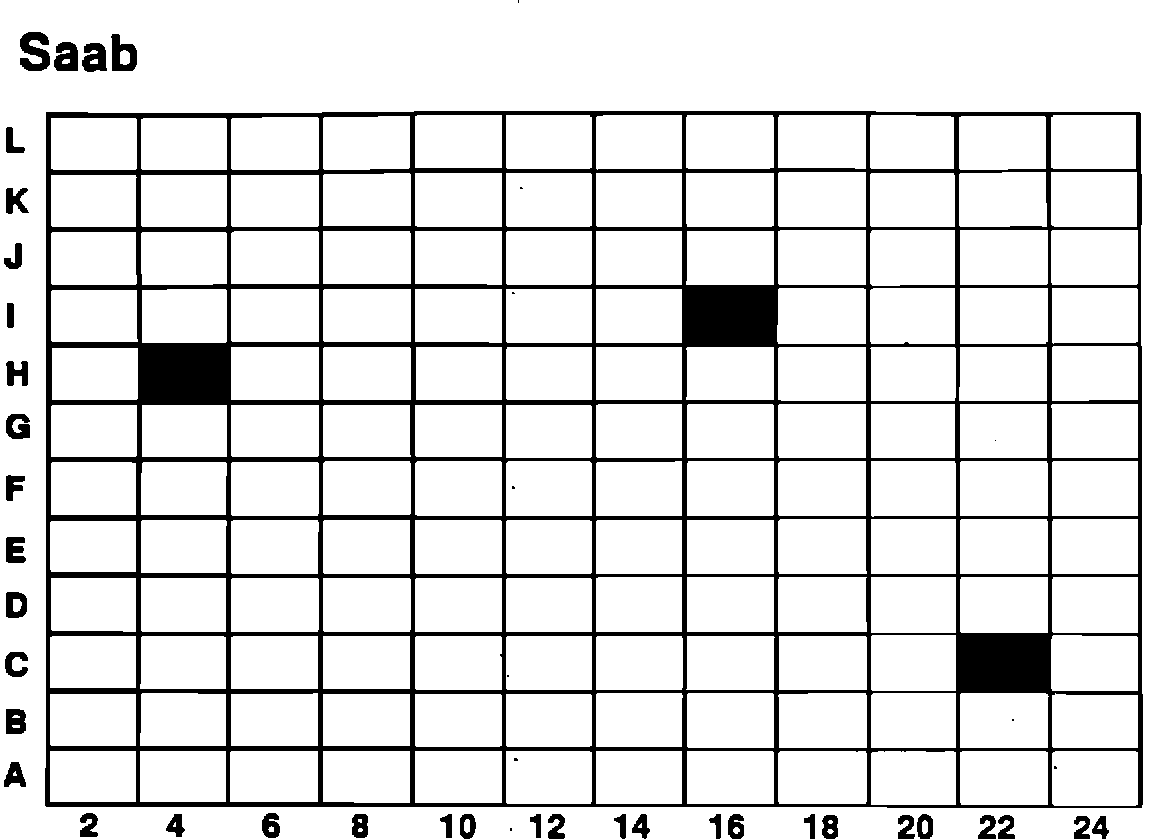

carefully align the appropriate microfiche card on the matrix above.
2) The black square will appear directly on the grid(s) to be marked.
3) Using a red "El Marko" permanent pen (or similar type) mark the fiche square(s).
Note:
If you use a fine tipped pen you can write the position number where the error is. This will save looking up microfiche discrepancies unnecessarily.
Unless fiche are correctly marked, the microfiche discrepancy system will be of little help in your parts department. Use the system and avoid costly ordering errors.
