Hand Brake Cable - Availability


9215saab01

CATEGORY
Microfiche Discrepancy
SECTION PAGE
14 36
ISSUE CODE
12/91-0167 551


Subject: 900 Hand Brake Cables, 1988

Application: 900 US M86-89 Ed. 12, Grid 3-D20
900 US M90 - Ed. 7, Grid 3-A16

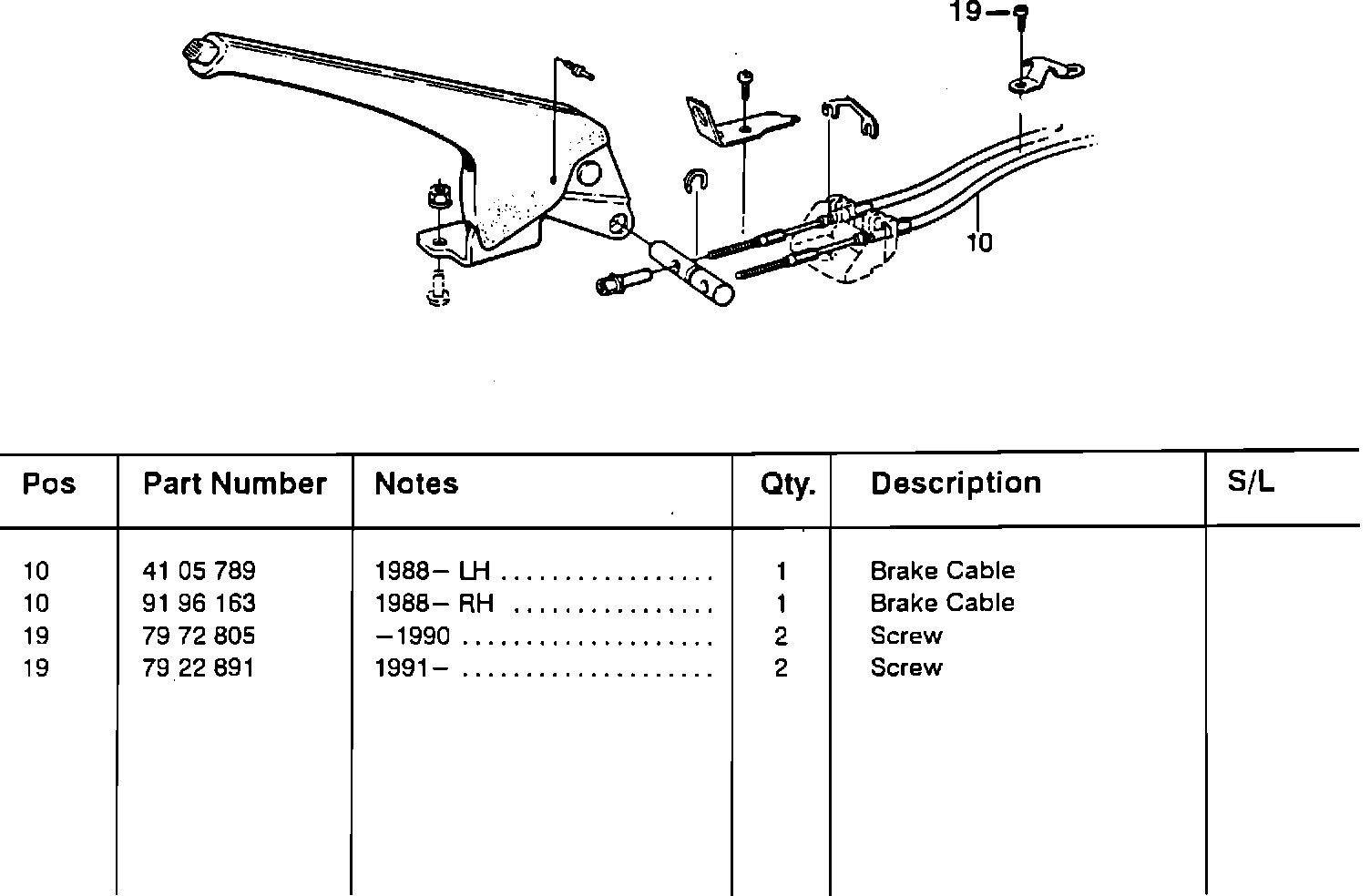

Saab has recently rationalized the availability of 900 hand brake cables so that only the 1991 - versions are available for replacement purposes. Because of the various cables used in earlier years, supersessions are not possible and the earlier cable variants will be discontinued. Please note the information below for the correct part number information for hand brake cables for all 900 vehicles since 1988. This includes convertibles.

Note also that the second listing for position 19 on the M9O-fiche is incorrectly listed as position 20 on this edition. See illustration for correct information.

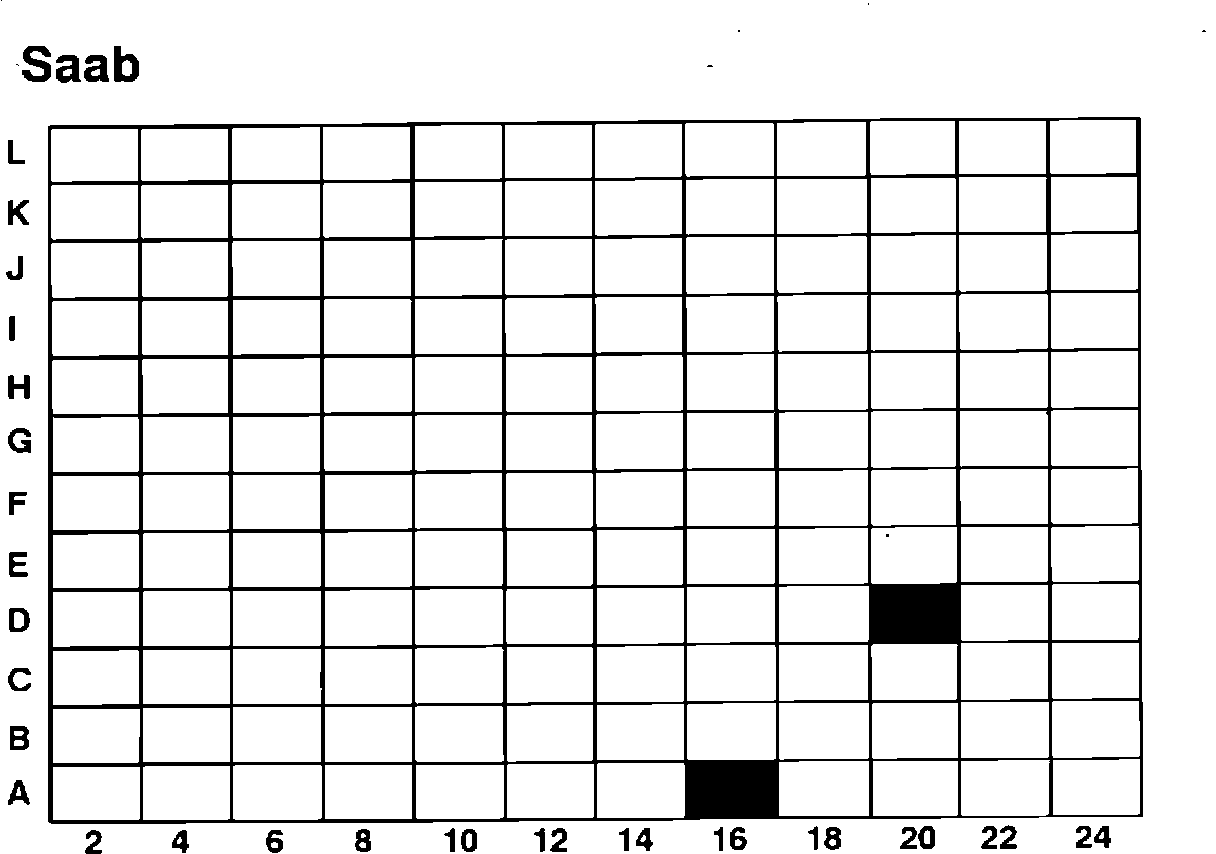

1) Carefully align the appropriate microfiche card on the matrix.


2) The black square will appear directly on the grid(s) to be marked.


3) Using a red "El Marko" permanent pen (or similar type) mark the fiche square(s).


Note:

If you use a fine tipped pen you can write the position number where the error is. This will save looking up microfiche discrepancies unnecessarily.

Unless fiche are correctly marked, the microfiche discrepancy system will be of little help in your parts department. Use the system and avoid costly ordering errors.
