Pinout Values and Diagnostic Parameters

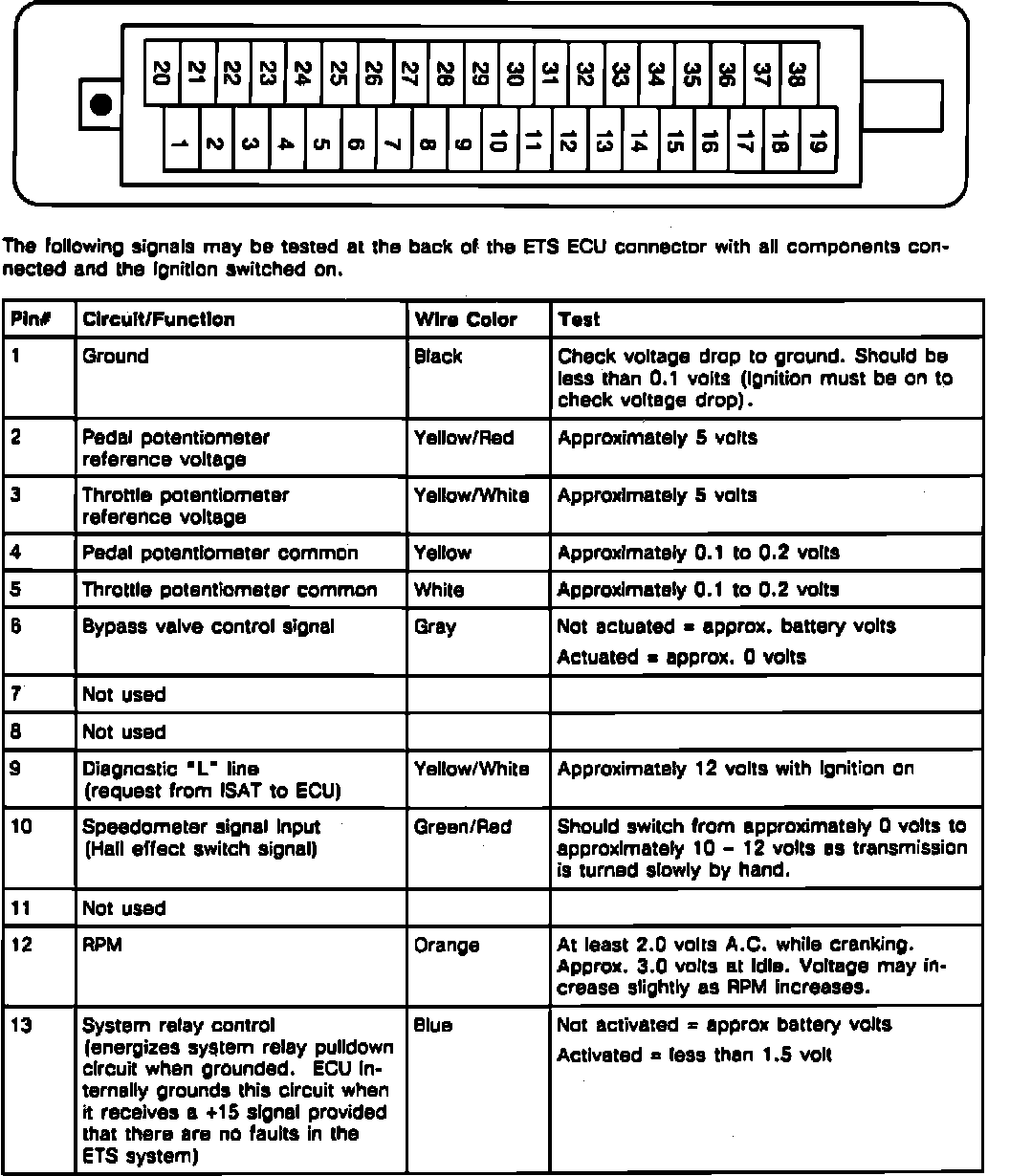

Fig. 7 ETS Control Unit Pin Tests (Part 1 Of 4):



Fig. 7 ETS Control Unit Pin Tests (Part 2 Of 4):



Fig. 7 ETS Control Unit Pin Tests (Part 3 Of 4):

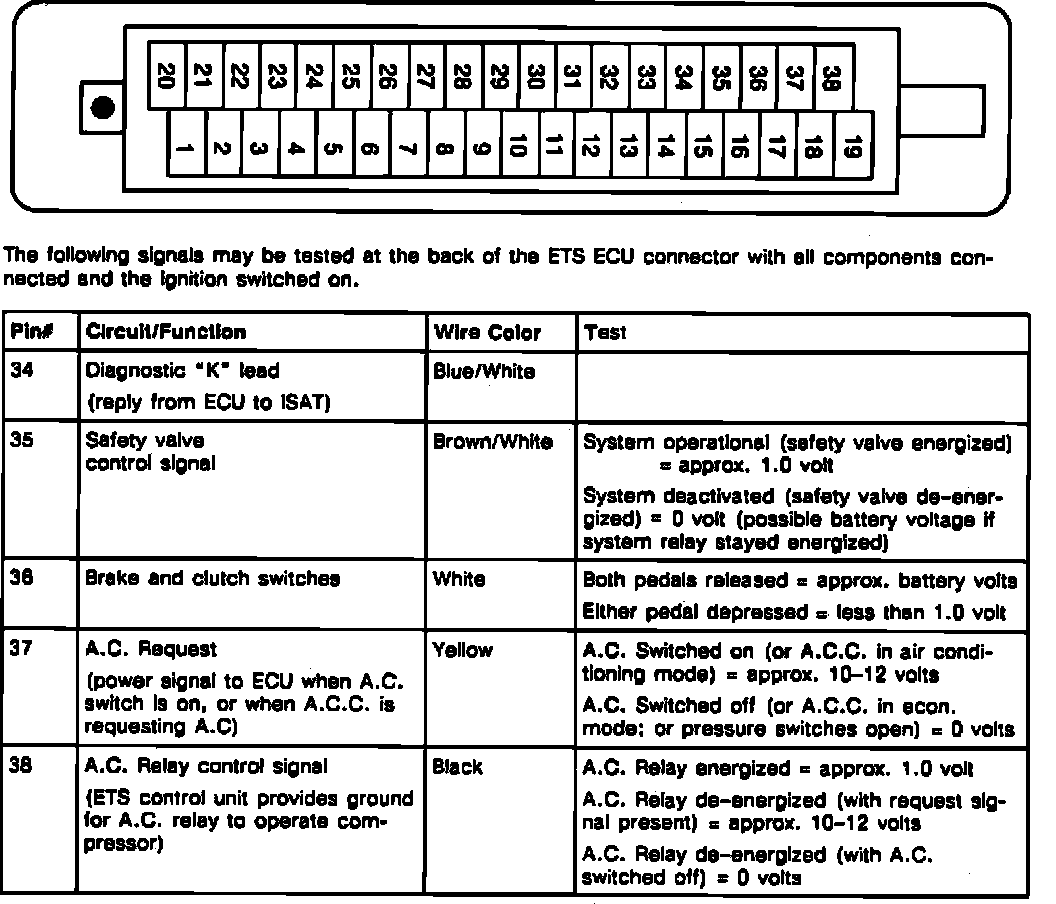

Fig. 7 ETS Control Unit Pin Tests (Part 4 Of 4):
