Rear Door Fan Motors

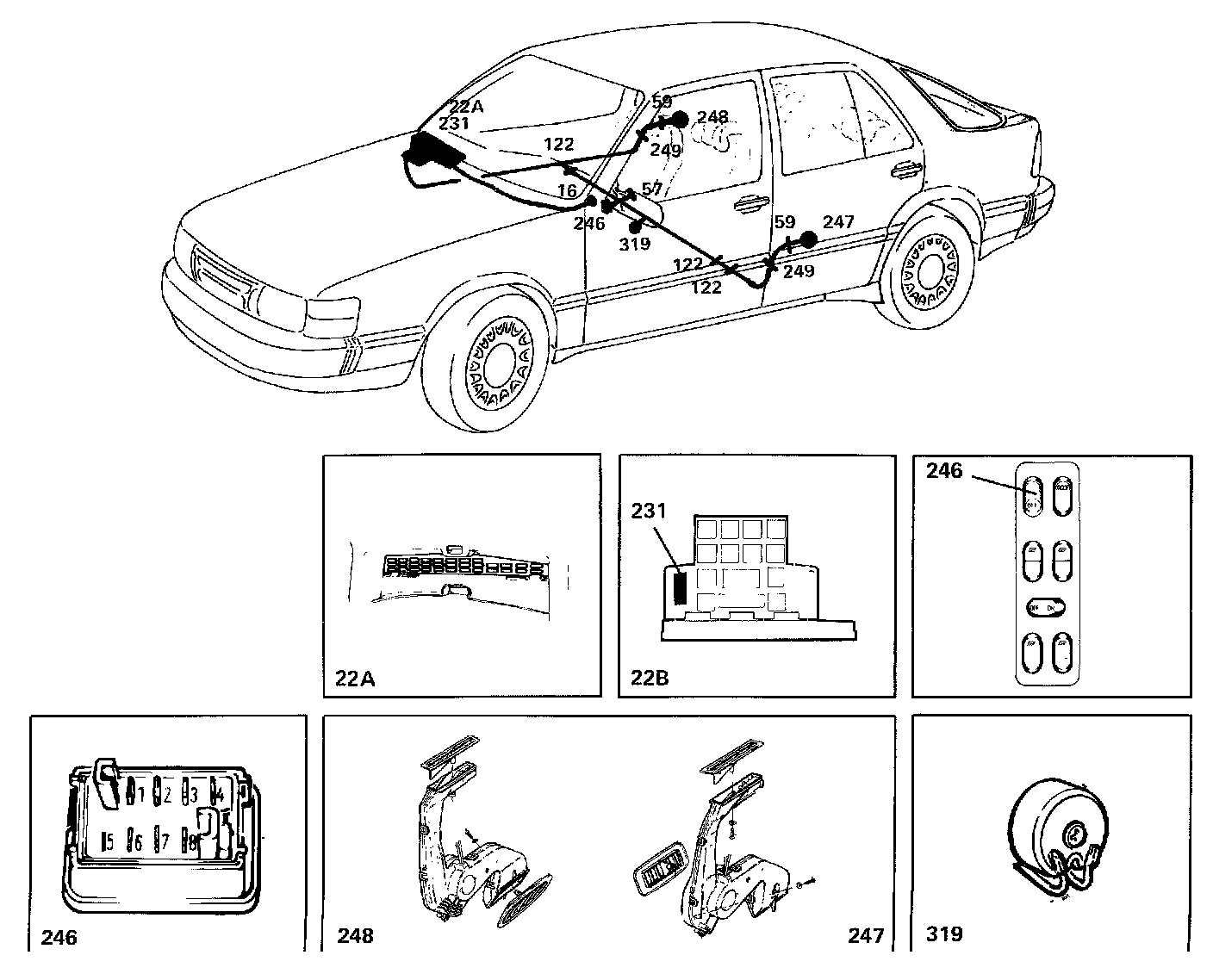

List of Components

16 Instrument lighting rheostat on the facia,to the left of the steering wheel.

22A Fuse board behind the access panel in the glove compartment.

57 3-pole connector under the centre console, between the front seats.

59 2-pole connector one in each rear door

65 Earthing point under the back seat

122 8-pole connector one under each front seat one on the left-hand front seat member.

231 Distribution terminal +54 in the electrical distribution box behind the glove compartment.

246 Switch for door fans on the centre console, between the front seats.

247 Motor for door fan in the left-hand rear door.

248 Motor for door fan in the right-hand rear door.

249 7-pole connector one in each B pillar.

319 Resistor for door fans under the left-hand front seat

341 Earthing point on the left-hand front seat member.
