Fuel System Wiring Diagram

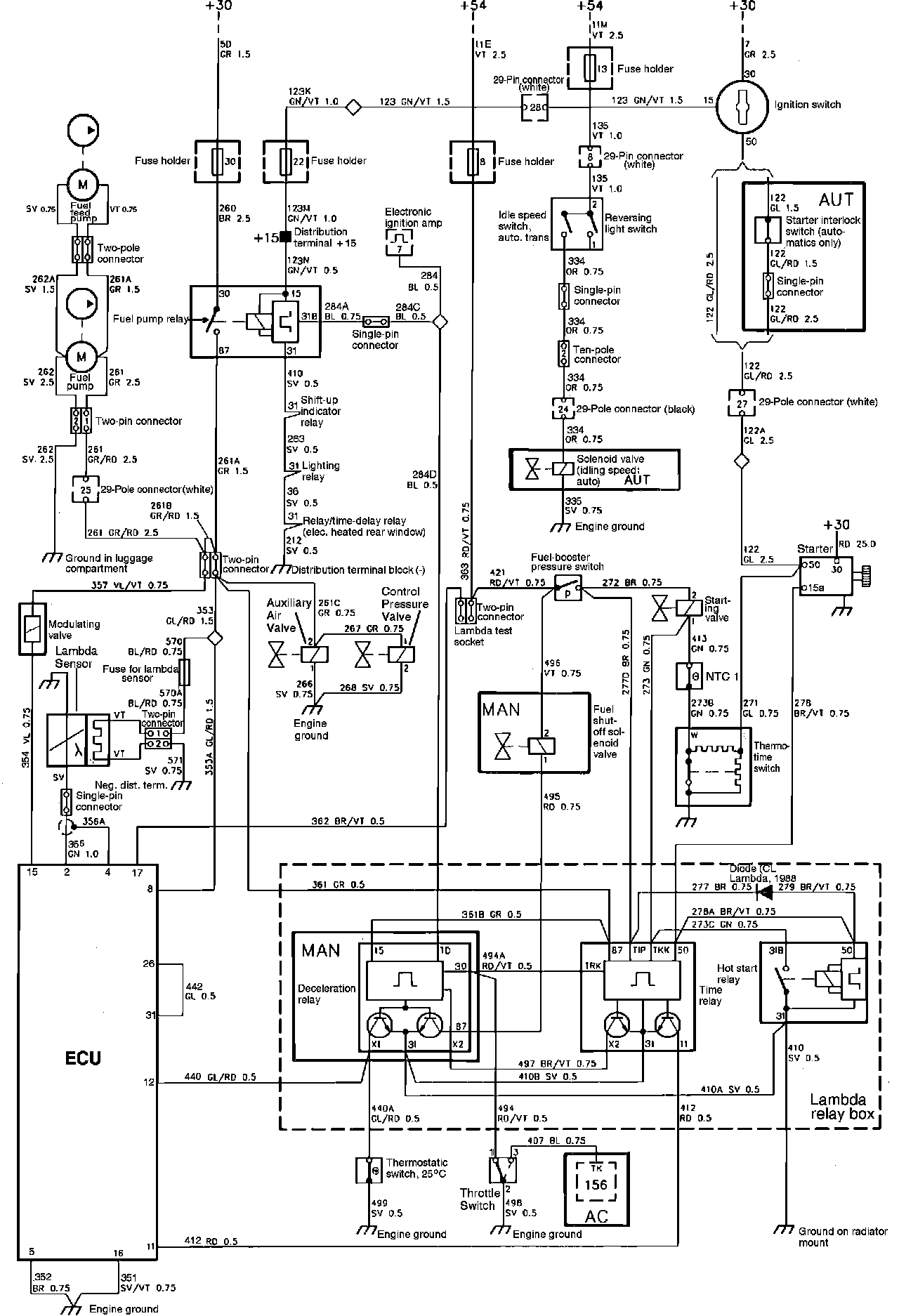

Fig. 33 CIS Wiring Diagram:

DIAGRAM NUMBER COMPONENT
1 Starter
2 Auxiliary Air Valve
3 Warm-Up Regulator
4 45° Thermostatic Switch
5 Oxygen Sensor
6 A/C Compressor Relay
7 Throttle Switch
8 Oxygen Sensor Preheater
