Connectors

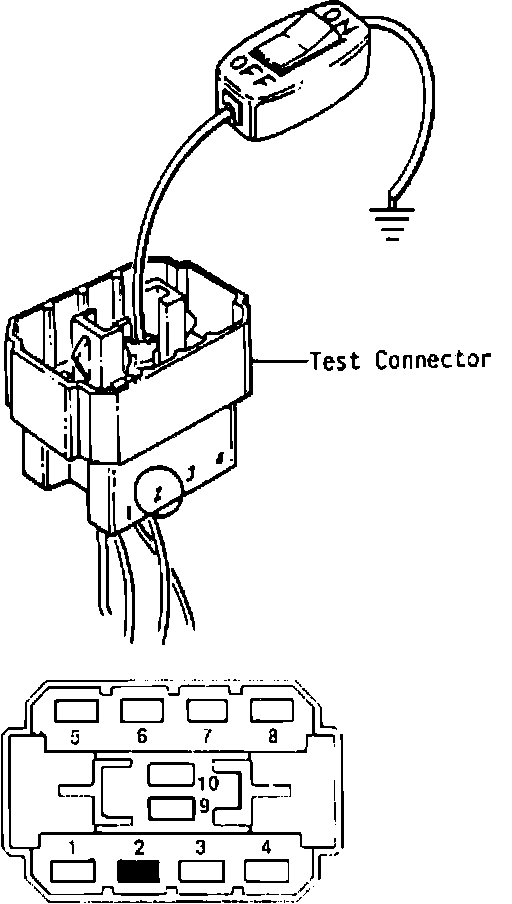

Self-diagnostic Test Connector Location:

The self-diagnostic test connector is a 10 pin connector. On convertible models, the connector is located under the shift boot between the shift lever and center console. On sedan and hatchback models, the connector is located below the rear seat on the righthand side.
