Instrument Cluster / Carrier: Service and Repair

Combined instrument removal


To remove the combined instrument

1. Disconnect the positive (+) battery cable. Remove the steering wheel.






2. Remove the four screws securing the switch penel end tilt the panel back.

Note: Do not interchange the screws, since they are of different lengths. Fitting them incorrectly will damage the upper section of the panel.

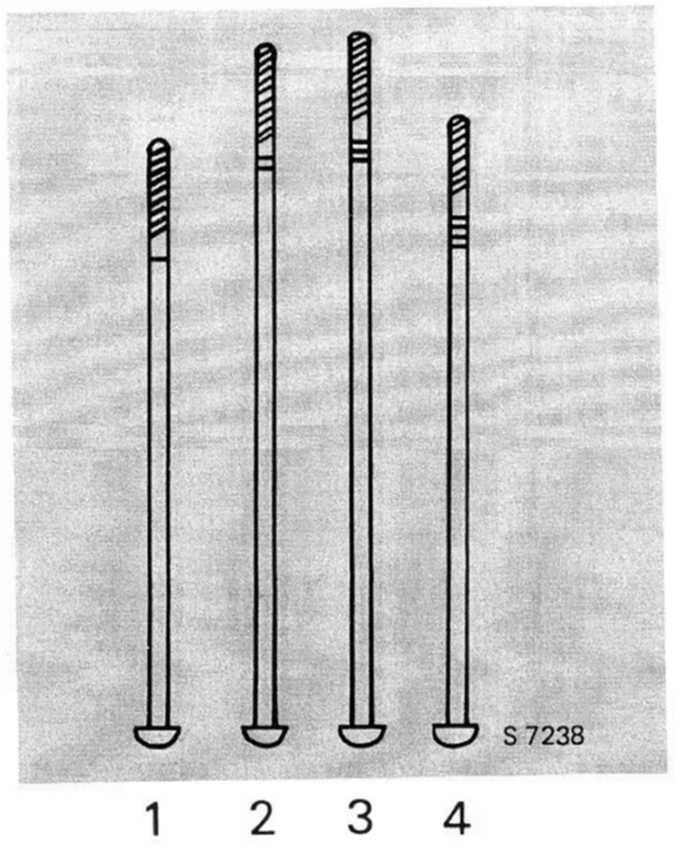

Length ofscrews
1- 176 mm
2- 205 mm
3- 210 mm
4- 189 mm






3. Remove the left-hand speaker (defroster) grille.
4. Disconnect the connectors from the instrument.
5. Disconnect the speedometer cable.

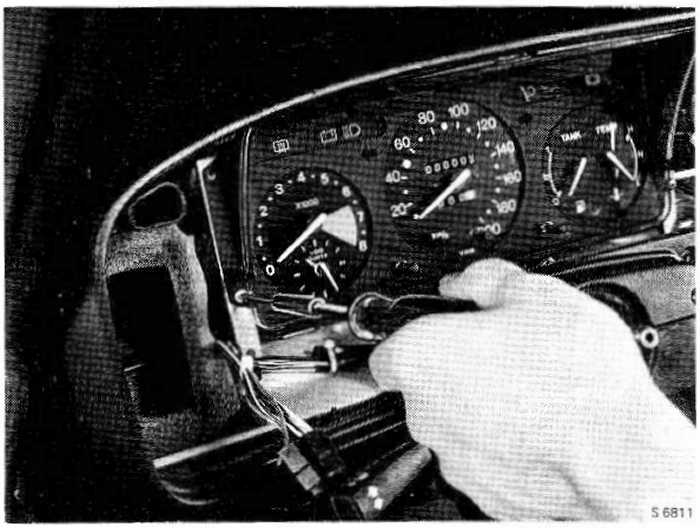

6. Remove the screws securingthe instrument.

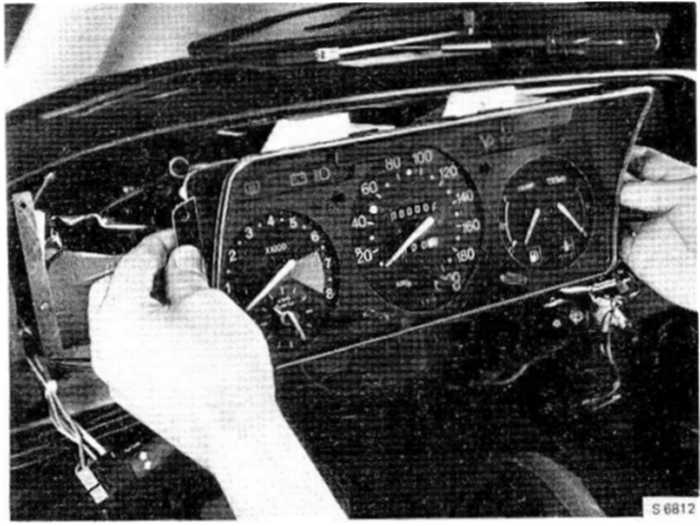

7. Lift out the instrument

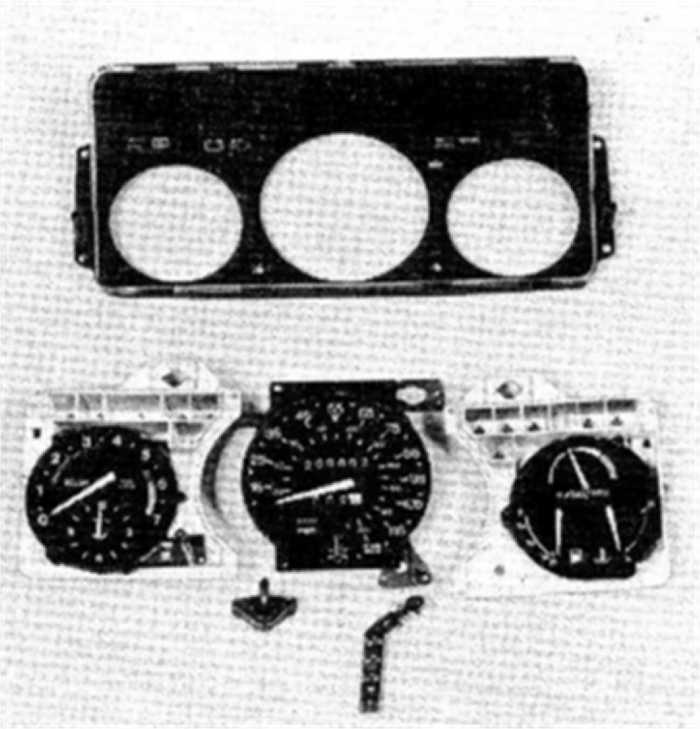

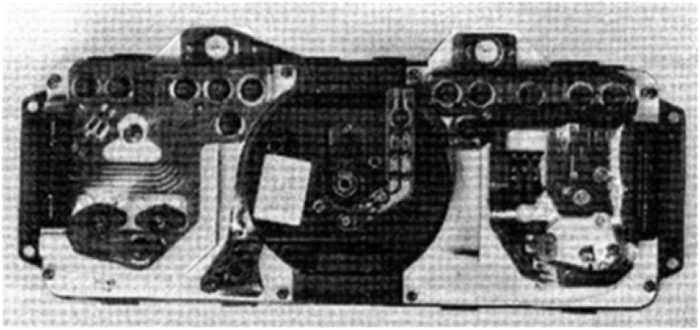

8. The combined instrument can then be removed.
