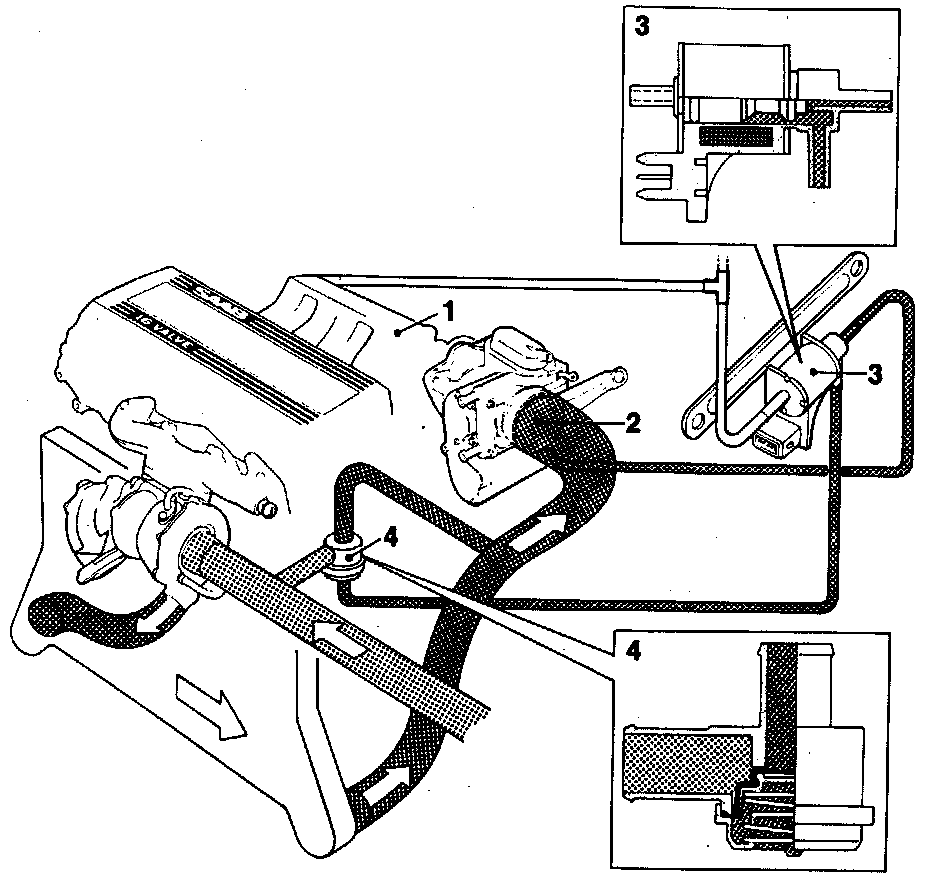

Air Bypass Valve, Turbocharger





1. Intake Manifold
2. Throttle Body
3. Charge Air Bypass Control Valve
4. Bypass Valve
