Alarm:
Alarm Components:

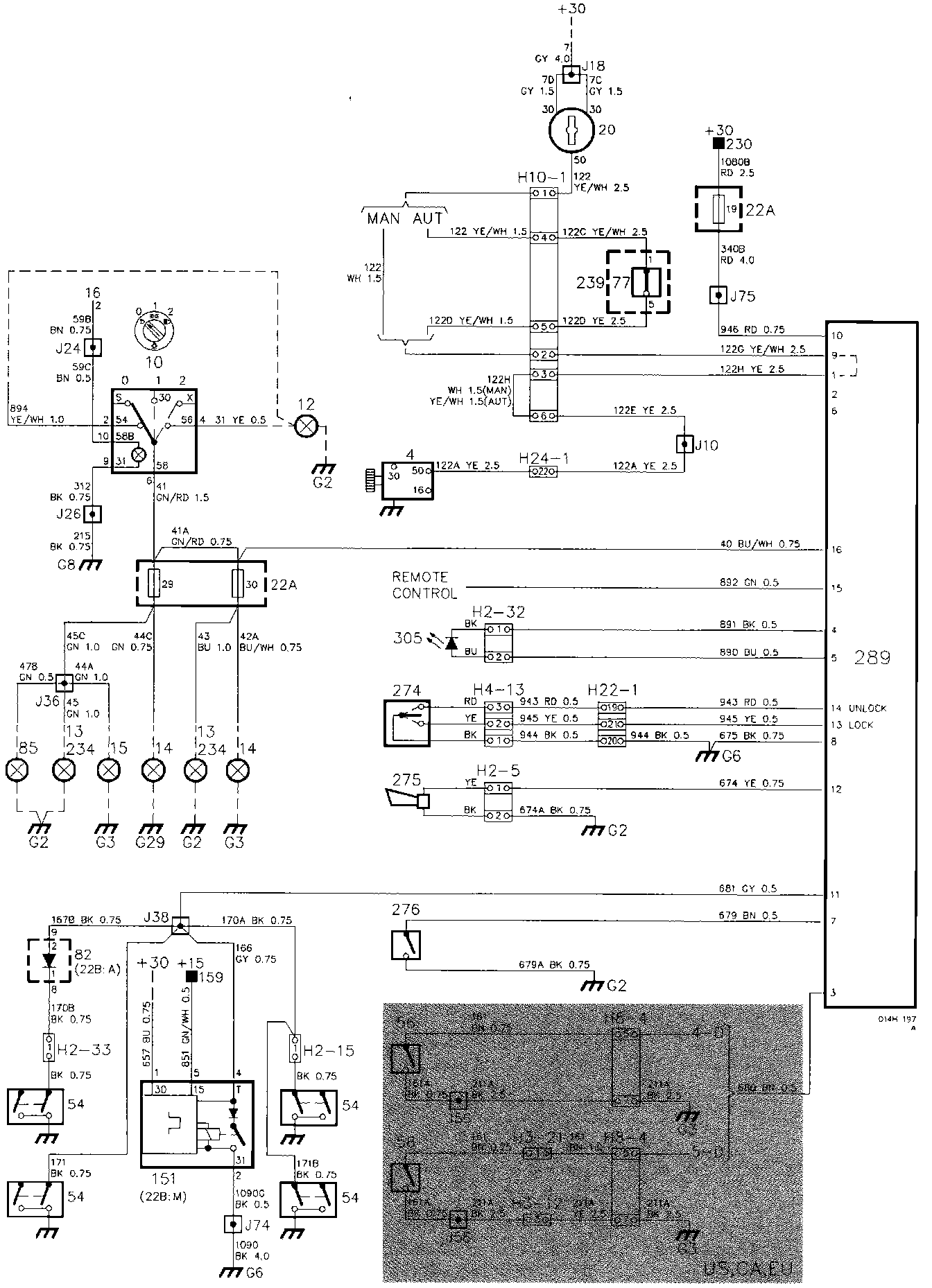

WIRING DIAGRAM
1 - 90:
91 - 213C:
213D - 342A:
342b - 400:

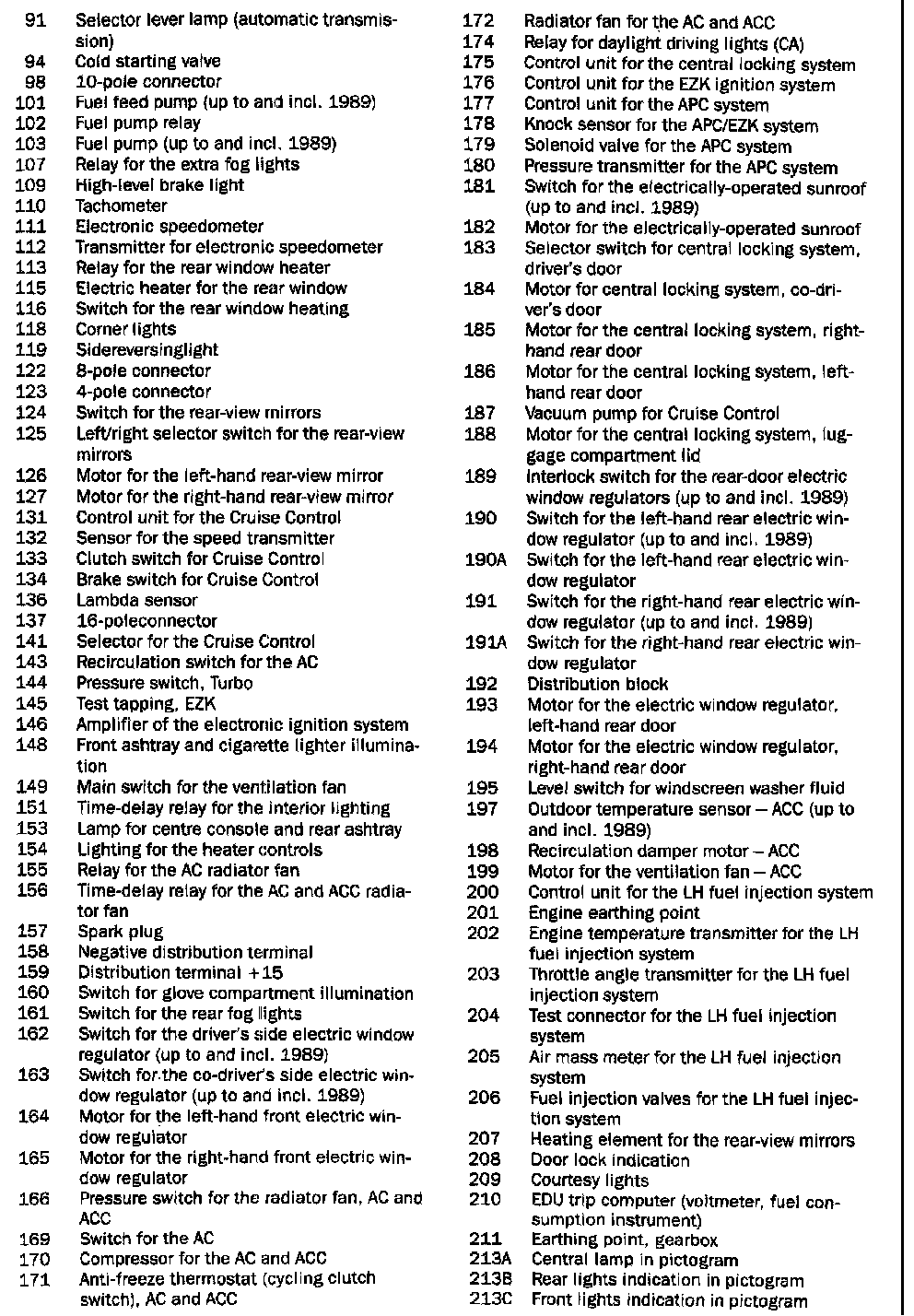

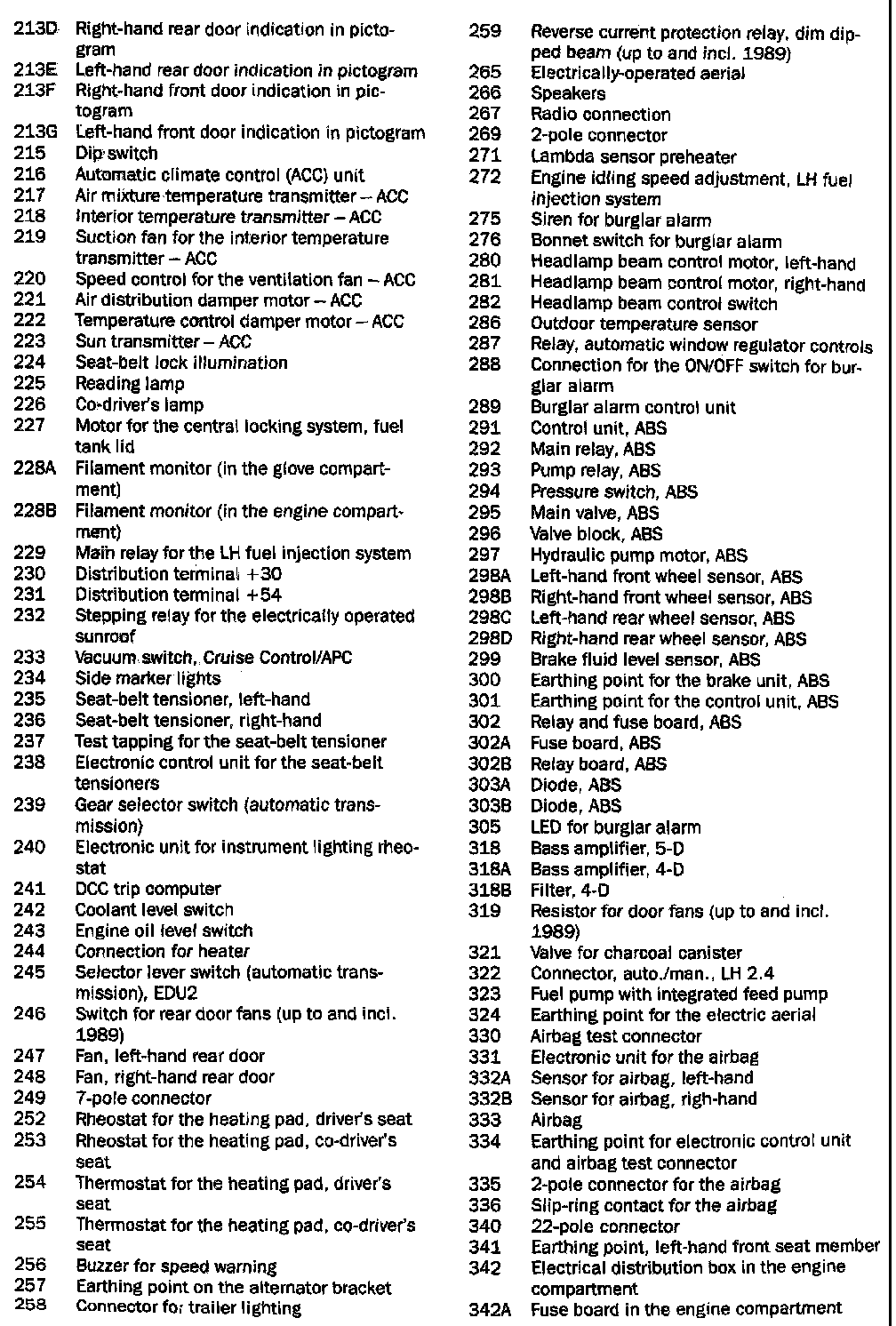

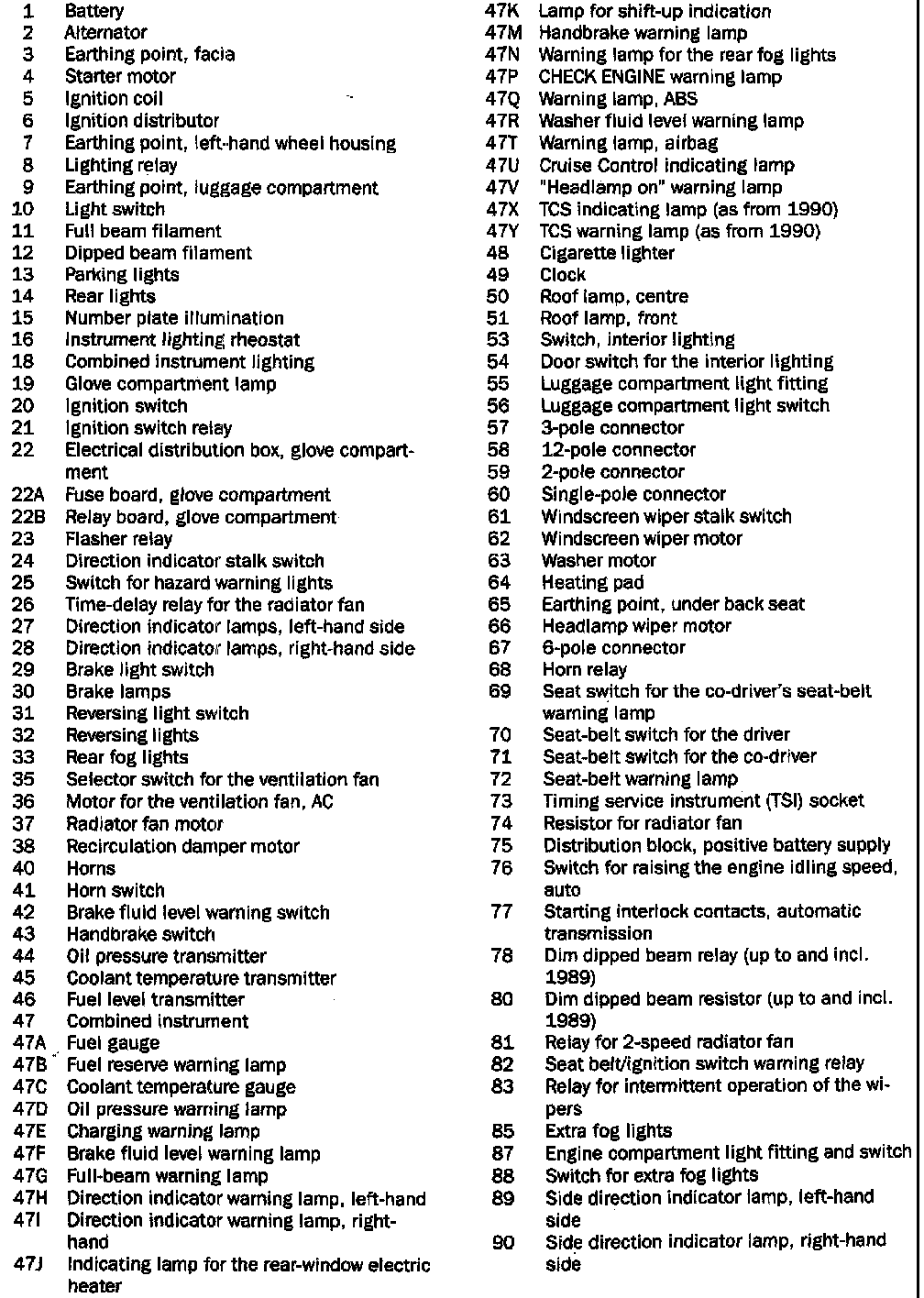

COMPONENT LEGEND
