Cellular Phone
Cellular Phone

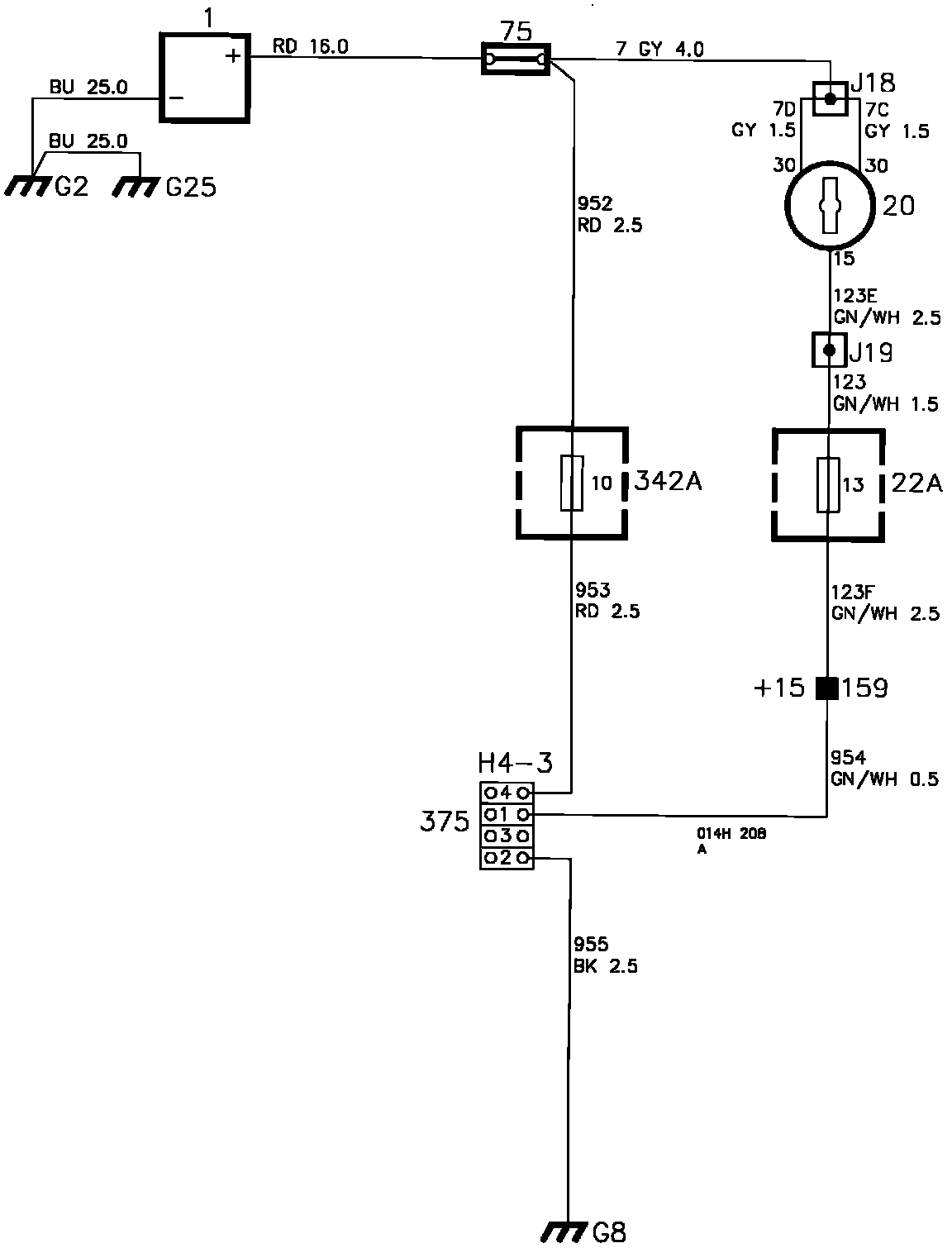

Provision For Cellular Phone (Power & Ground):
WIRING DIAGRAM
1 - 90:
91 - 213C:
213D - 342A:
342b - 400:
COMPONENT LEGEND
