Home >> Saab >> 1991 >> 9000 L4-2290cc 2.3L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> System Diagram

System Diagram

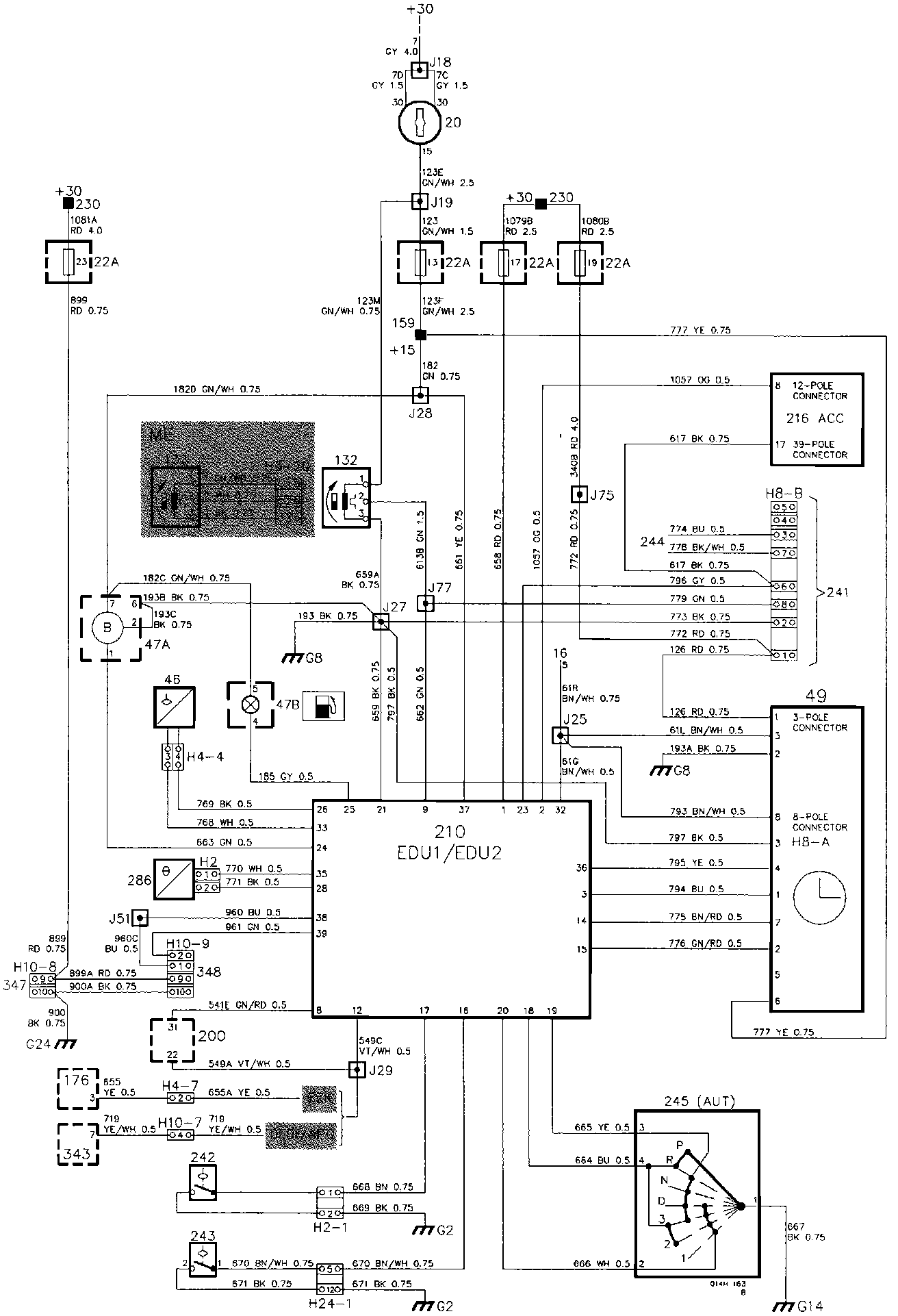

EDU 1/EDU 2 Trip Computer And Clock:
