Rear Fog Lights


Rear Fog Lights:

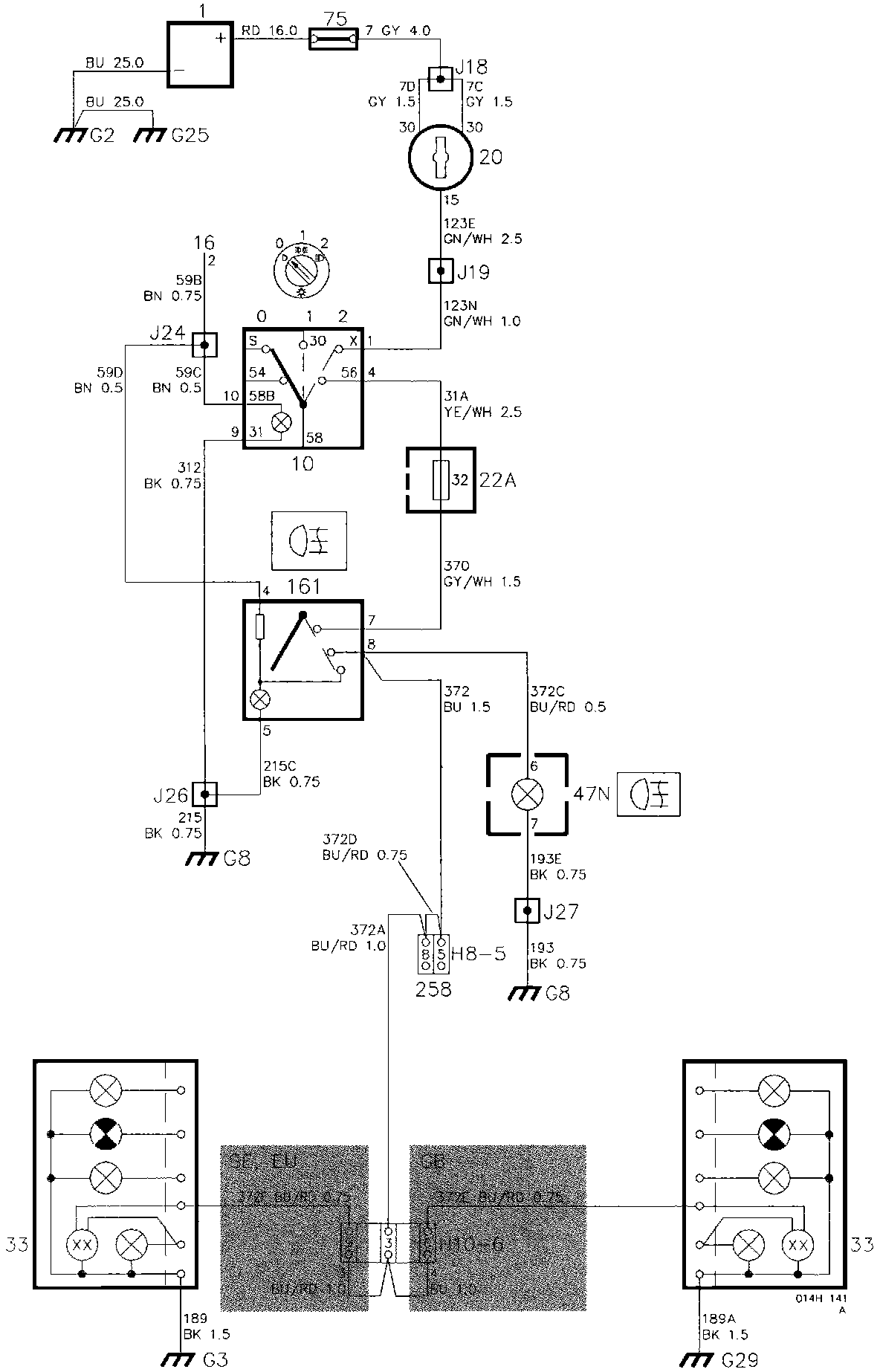

WIRING DIAGRAM

1 - 90:




91 - 213C:




213D - 342A:




342b - 400:




COMPONENT LEGEND
