Fuel Gauge and Warning Lamp
Fuel Gauge and Warning Lamp

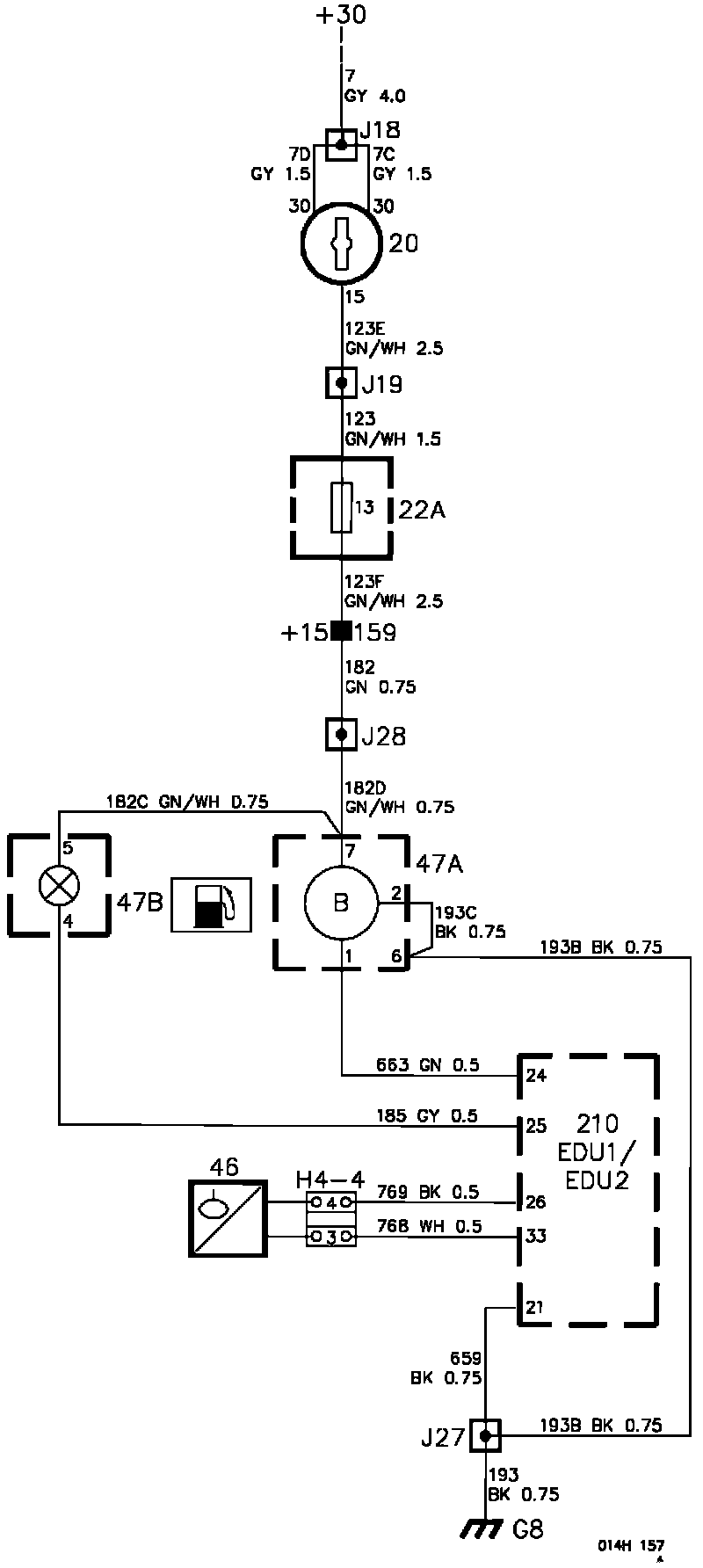

Fuel Gauge And Warning Lamp:
WIRING DIAGRAM
1 - 90:
91 - 213C:
213D - 342A:
342b - 400:
COMPONENT LEGEND
