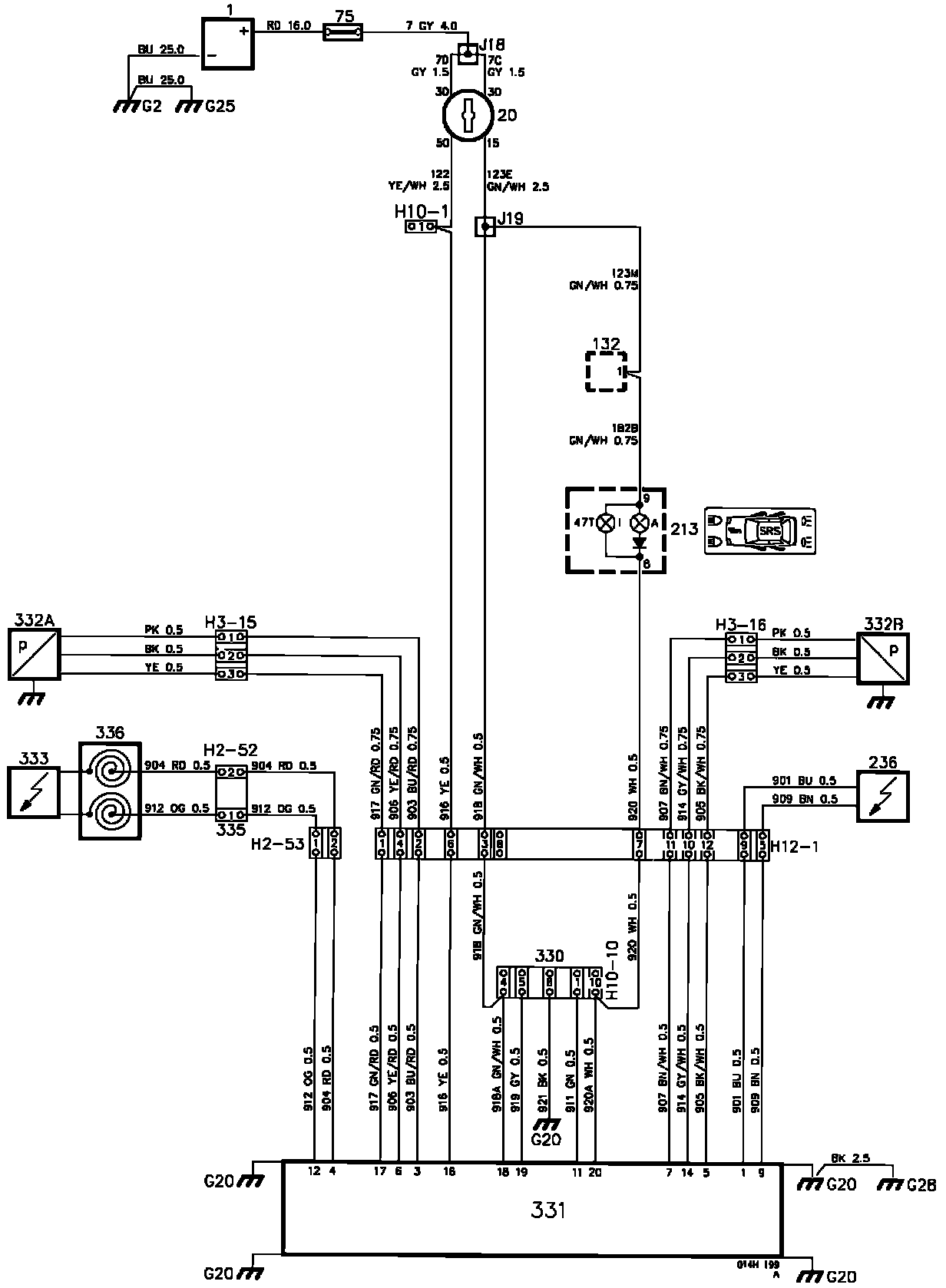

Electrical Diagrams

Airbag:





1 Battery
on the left-hand side of the engine compartment

20 Ignition switch
on the right-hand side of the steering column

47T Airbag warning lamp
in pictogram 213

75 Distribution block
in the engine compartment, forward of the battery

132 Sensor for the speed transmitter
in the speedometer, in the combined instrument

213 Pictogram
in the combined instrument on the facia

236 Seat-belt tensioner, right-hand
at the extreme bottom of the right-hand rear door pillar

330 Test connector H10-10
in the center console, below the bottom compartment; marked Airbag test connector

331 Electronic unit for the airbag
on the bracket below the facia, on the right-hand side, above the knee guard

332A Sensor
in the engine compartment, below the electrical distribution box

332B Sensor
in the engine compartment, on the mounting plate at the right-hand wing

333 Airbag
in the steering wheel

335 H2-52 2-pole connector (orange, short-circuiting)
at the steering wheel

336 Slip-ring contact
in the steering wheel

G2 Grounding point
on the left-hand wheel housing

G20 Grounding point for the airbag
beside the electronic control unit

G25 Grounding point
on the gearbox

G28 Redundant ground for the airbag
at the electronic control unit


2-pole Connector:

H2-53 under the facia, behind the knee shield, to the right of the glove compartment


3-pole Connectors:

H3-15 adjacent to sensor 332A

H3-16 adjacent to sensor 332B


10-pole Connector:

H10-1 under the facia, to the left of the heater housing


12-pole Connector:

H12-1 on the right-hand side, under the facia (behind the knee shield), on the electronic unit bracket
