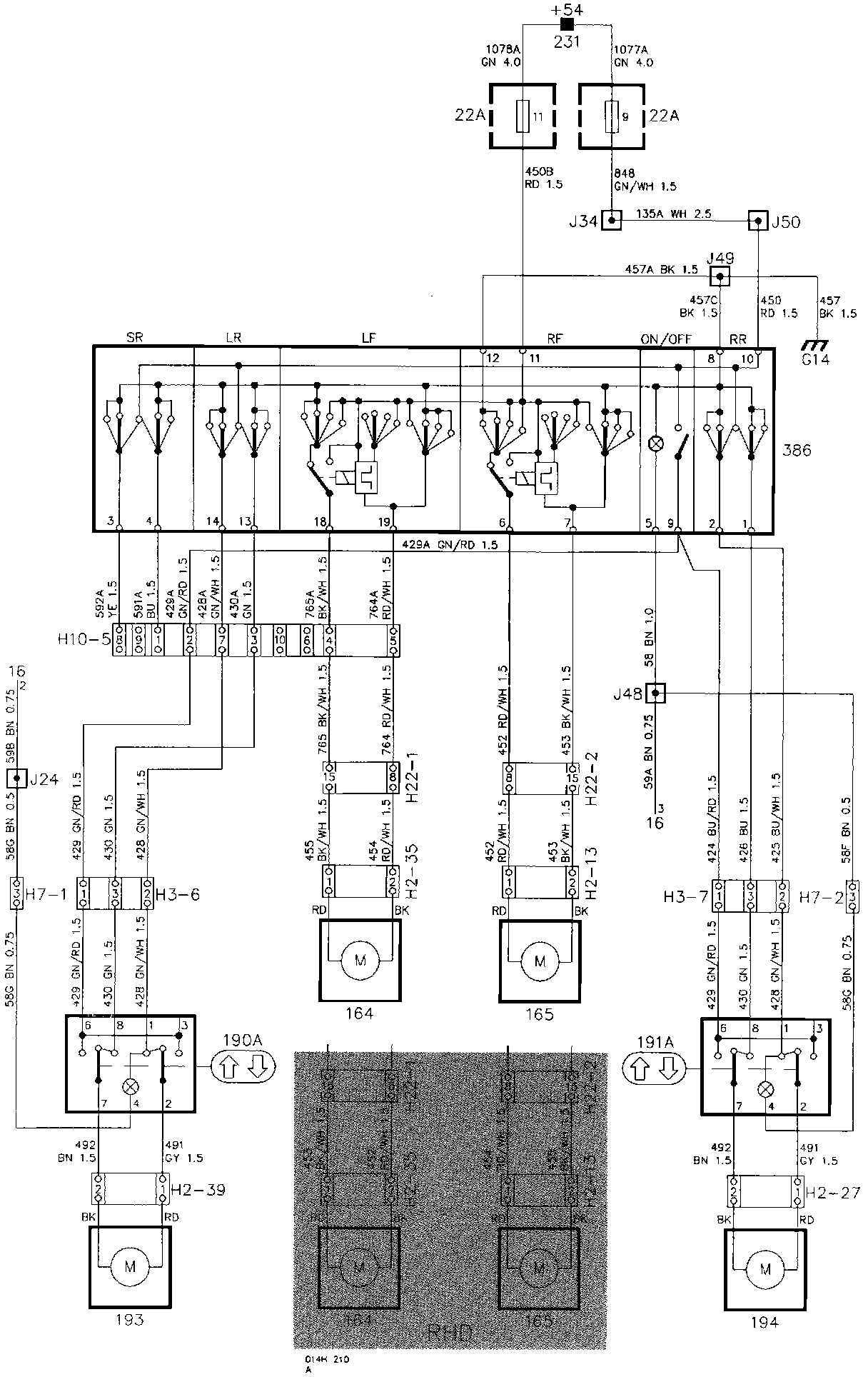

Electrical Diagrams

Electric Window Regulators:

16 Instrument lighting rheostat
on the facia, to the left of the steering wheel

22A Fuse board
behind the access panel in the glove compartment

164 Motor for the left-hand front electric window regulator
in the left-hand front door

165 Motor for the right-hand front electric window regulator
in the right-hand front door

190A Switch for the left-hand rear electric window regulator
in the left-hand rear door

191A Switch for the right-hand rear electric window regulator
in the right-hand rear door

193 Motor for the left-hand rear electric window regulator
in the left-hand rear door

194 Motor for the right-hand rear electric window regulator
in the right-hand rear door

231 Distribution terminal +54
in the electrical distribution box behind the glove compartment

386 Switch for electric window regulators and electrically operated sunroof
on the center console between the front seats

G14 Ground point
on the left-hand front seat member


2-pole Connectors:

H2-13 in the right-hand front door

H2-27 in the right-hand rear door

H2-35 in the left-hand front door

H2-39 in the left-hand rear door


3-pole Connectors:

H3-6 in the left-hand B pillar

H3-7 in the right-hand B pillar


7-pole Connectors:

H7-1 on the inside of the cable entry in the left-hand B pillar

H7-2 on the inside of the cable entry in the right-hand B pillar


10-pole Connector:

H10-5 under the left-hand front seat


22-pole Connector:

H22-1 in the left-hand A pillar

H22-2 in the right-hand A pillar
