Safety Valve

Safety Valve





Object code: 27142

To remove

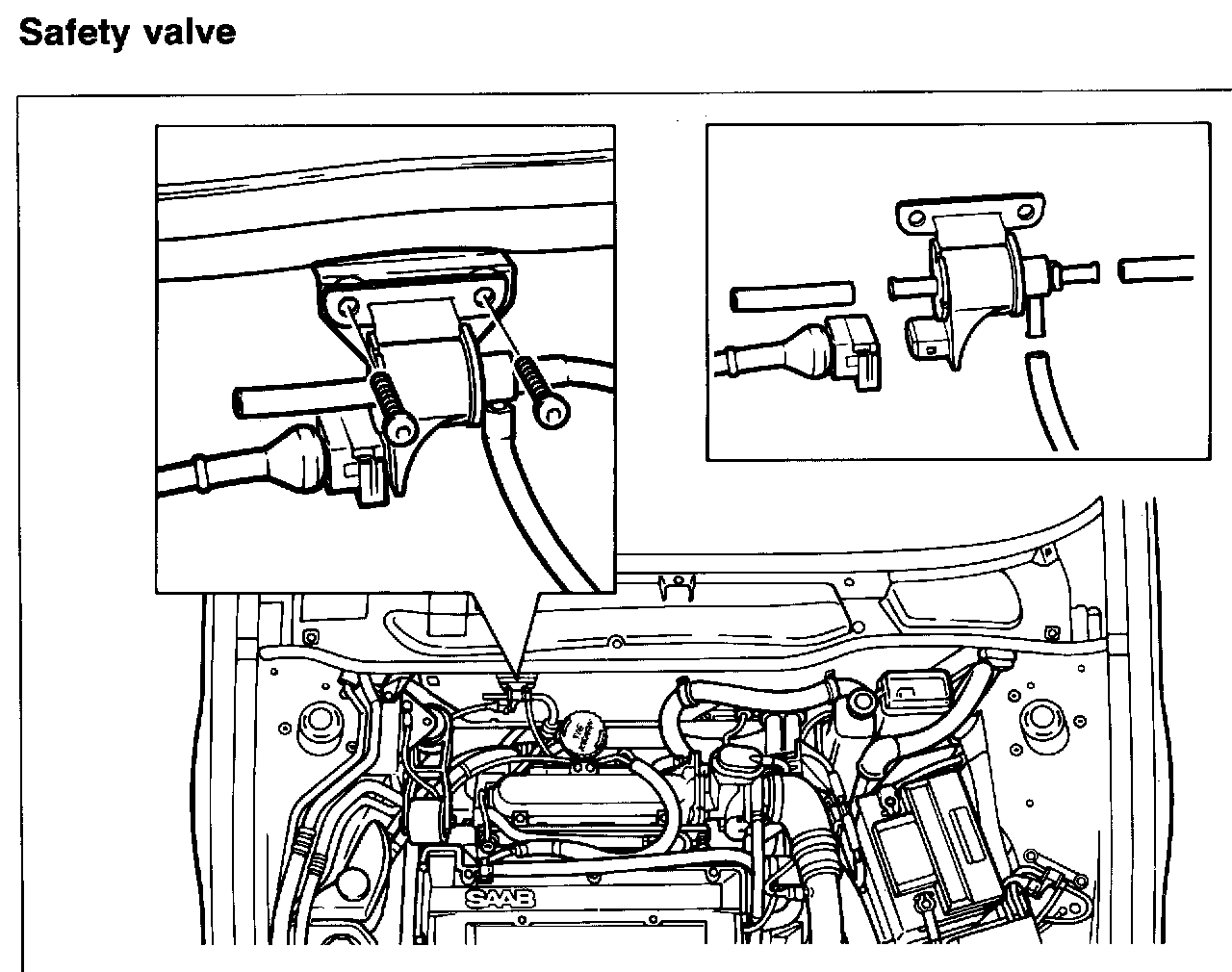

The valve is located on the bulkhead partition.
1 Remove the two retaining screws.
2 Unplug the connector and disconnect the signal hoses.

To fit
1 Reconnect the signal hoses according to the colour coding.
2 Plug in the connector and fit the retaining screws.
