Home >> Saab >> 1992 >> 9000 L4-2290cc 2.3L DOHC Turbo EFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Diagram Information and Instructions >> A-9 Component, Connector and Ground Locations >> Components >> Wiper/Washer >> Rear

Rear

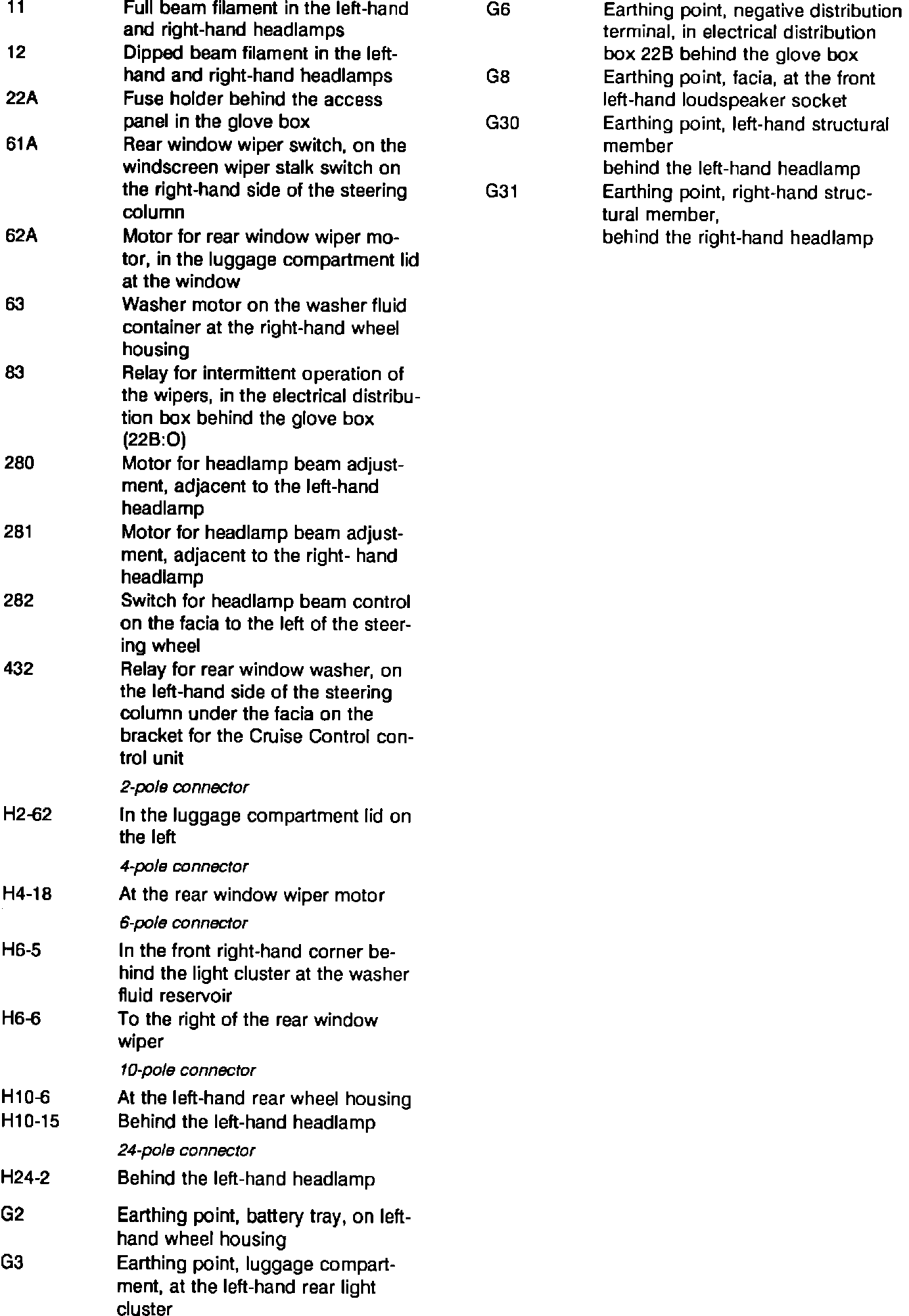

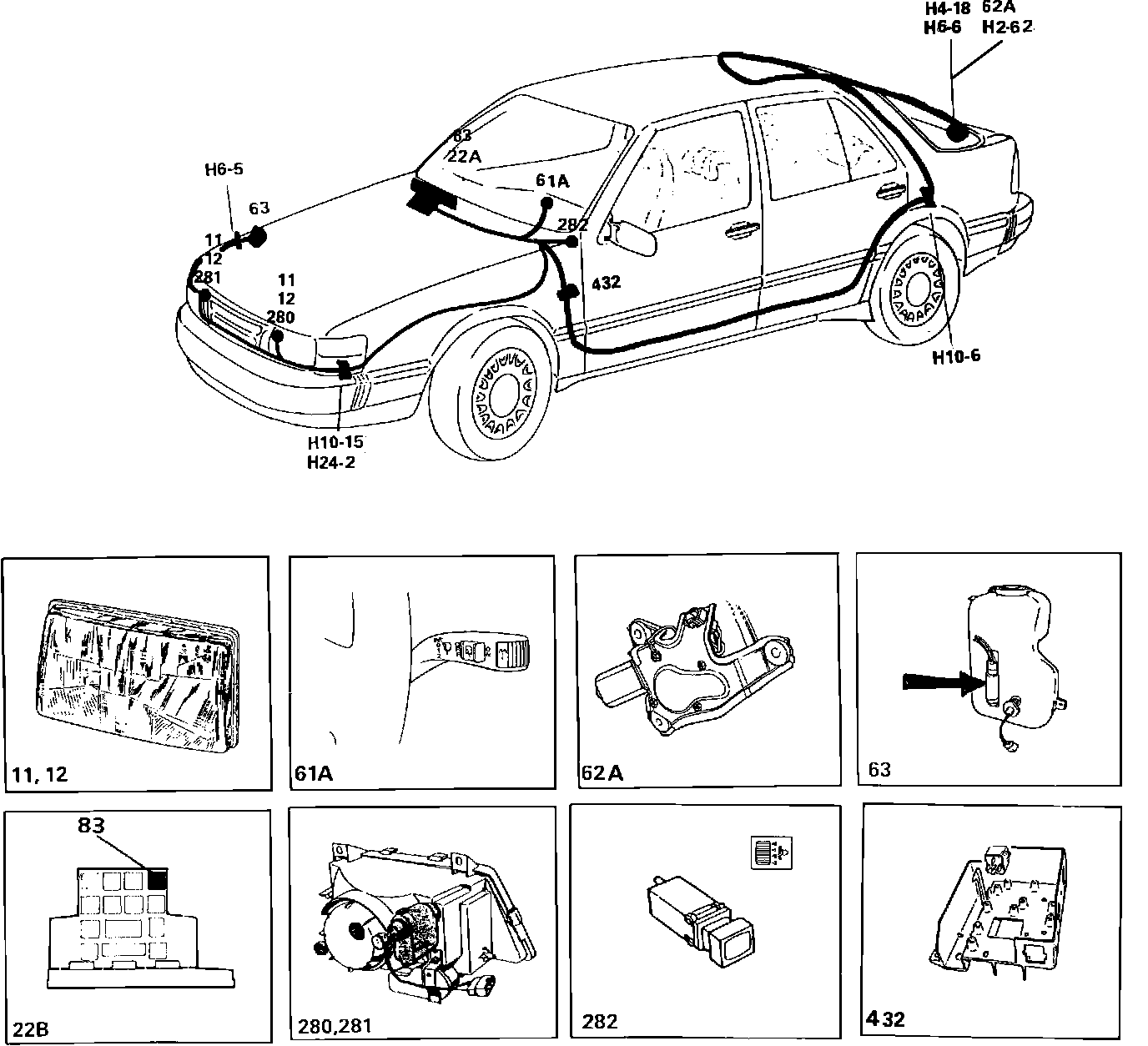

Headlamp Beam Adjustments And Rear Window Wiper/Washer:



Headlamp Beam Adjustments And Rear Window Wiper/Washer:
