Home >> Saab >> 1992 >> 9000 L4-2290cc 2.3L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trip Computer >> With Integrated Clock (SCC)

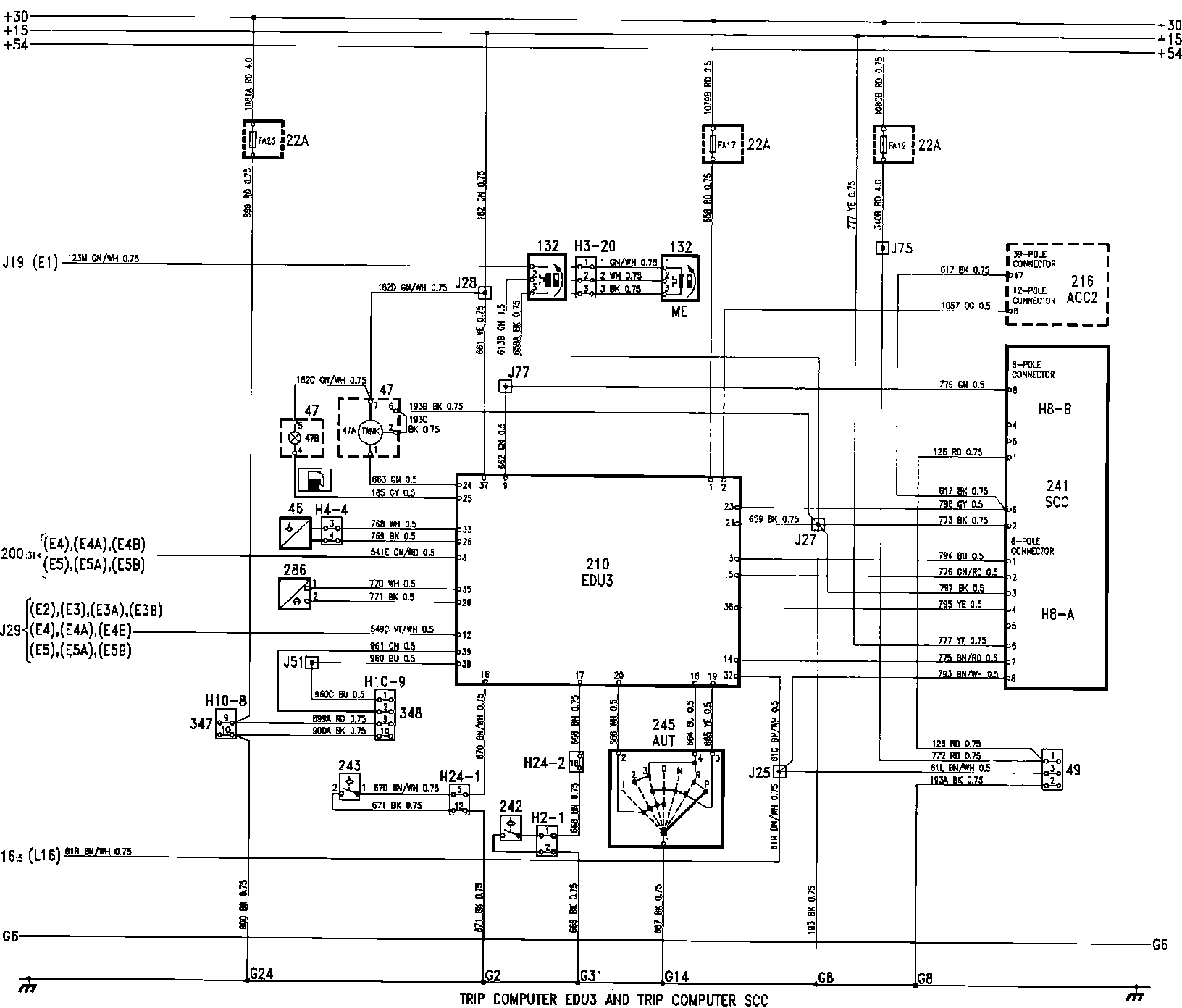

With Integrated Clock (SCC)

Saab Car Computer (SCC):
