Automatic Climate Control (ACC) System

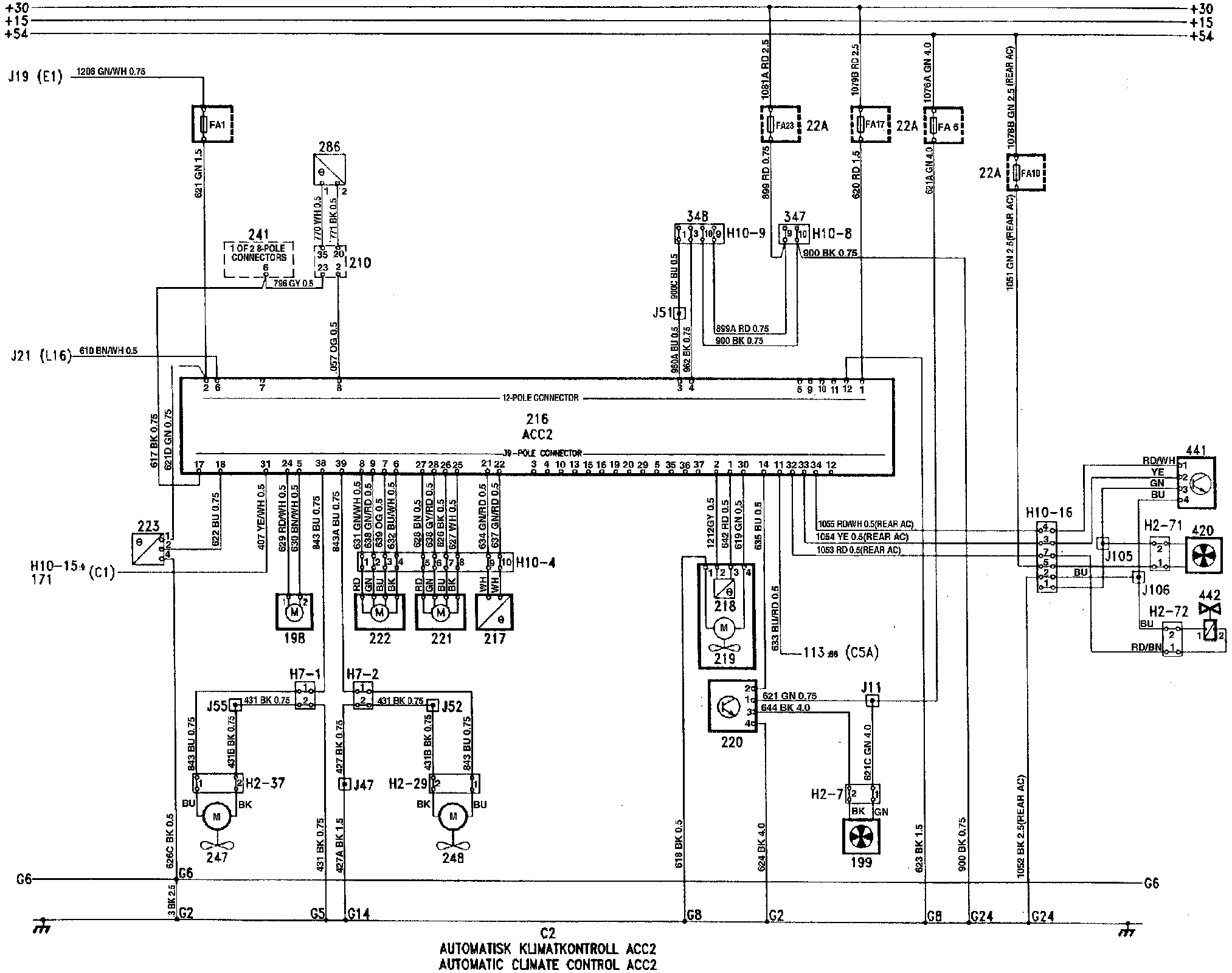

Wiring Diagram, Automatic climate Control (ACC)

Component Locations
22A Fuse box in electrical distribution box.
113 Relay, electrically heated rear window.
171 Anti-freeze thermostat.
198 Motor, air recirculation flap.
199 Motor, cabin fan.
210 EDU.
216 ACC control module.
217 Blended air temperature sensor.
218 Cabin temperature sensor.
219 Suction fan, cabin temperature sensor.
220 Speed control, ventilation fan.
221 Motor, air distributor.
222 Motor, air mixing damper.
223 Solar sensor.
241 SCC.
247 Motor, door fan, left.
248 Motor, door Ian, right.
286 Outside temperature sensor.
347 Data link connector, motor.
348 Data link connector.
420 Fan motor, rear A/C.
441 Speed control, rear A/C.
442 Solenoid valve, rear A/C.
H2-7 2 pin connector.
H2-29 2 pin connector.
H2-37 2 pin connector.
H2-71 2 pin connector.
H2-72 2 pin connector.
H7-1 7 pin connector.
H7-2 7pinconnector.
H10-A 10 pin connector.
H10-16 10 pin connector.
G2 Grounding point.
G5 Grounding point.
G6 Grounding point.
G8 Grounding point.
G14, 24 Grounding point.
