Automatic Climate Control

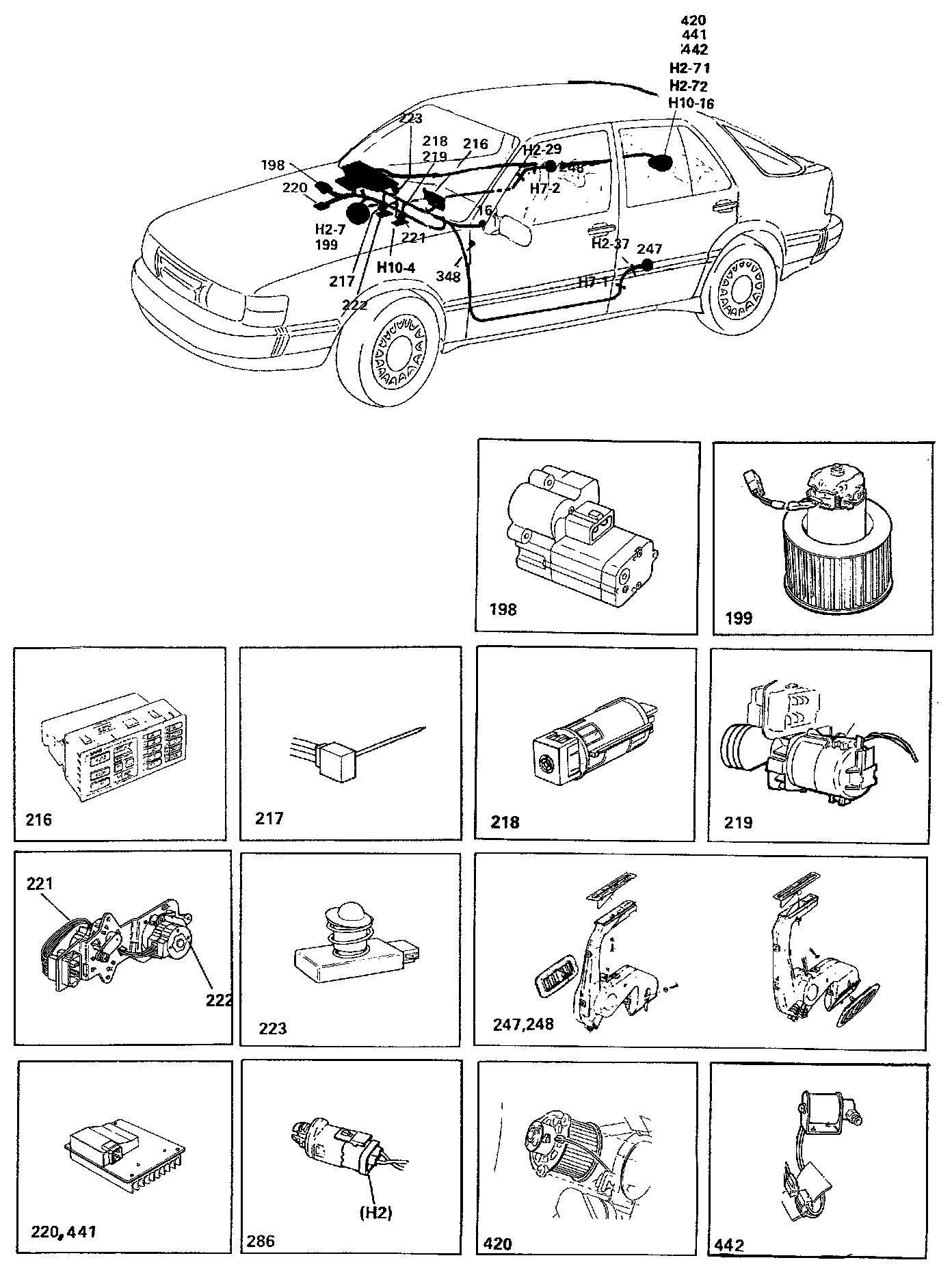

List of Components

22A Fuse holder behind the access panel in the glove box.

113 Relay for the electrically-heated rear window, in the electrical distribution box behind the glove box (22B:D).

171 Antifreeze thermostat on the evaporator casing below the wind- screen on the right-hand side.

198 Recirculation damper motor (ACO) on the right-hand side of the engine compartment at the top.

199 Motor for the ventilation fan (ACC) in the fan housing behind the bulkhead partition.

210 EDU trip computer, in the combined instrument.

216 Automatic climate control unit, on the centre console.

217 Air mixture transmitter (ACC) under the servo-motor unit.

218 Interior temperature transmitter (ACC) in the panel between the steering wheel and the centre console.

219 Suction fan for the interior temperature transmitter (ACC) in the panel between the steering wheel and the centre console.

220 Speed control for the ventilation fan in the evaporator housing, immediately behind the bulkhead partition.

221 Air distribution damper motor (ACC) inside the glove box, on the servo motor unit.

222 Temperature control damper motor (ACC) inside the glove box, on the servo motor unit.

223 Sun sensor (ACC) in the centre of the facia.

241 SCC trip computer in the centre of the facia.

247 Motor for door fan in the left-hand rear door.

248 Motor for door fan in the right-hand rear door.

286 Outside temperature sensor (trip computer) on the left behind the front spoiler.

347 (H10-8) Diagnostic test socket, engine electronics, under the right- hand front seat (black).

348 (H10-9) Diagnostic test socket, car electronics, under the right-hand front seat (green).

420 Fan motor for rear AC, on the right-hand side of the luggage compartment.

441 Speed control for rear AC, on the right-hand side of the luggage compartment.

442 Solenoid valve, rear AC, on the right-hand side of the luggage compartment

2-pole Connector
H2-7 Adjacent to ventilation fan motor 199.

H2-29 In the right-hand rear door at the fan motor.

H2-37 In the left-hand rear door at the fan motor.

H2-71 Behind the seat backrest at the fan.

H2-72 In the luggage compartment at the right-hand front corner, at the solenoid valve.

7-pole Connector
H7-1 On the inside of the cable entry in the left-hand B pillar.

H7-2 On the inside of the cable entry in the right-hand B pillar.

10-pole Connector
H1O-4 Inside the glove box on the ACC servo motor unit.

H10-16 In the luggage compartment on the right-hand side, on the rear AC bracket.

G2 Earthing point, battery tray, on left-hand wheel housing.

G5 Earthing point, under the left-hand part of the rear seat.

G6 Earthing point~ negative distribution terminal, in the electrical distribution box behind the glove box.

G8 Earthing point, facia, at the front left-hand loudspeaker socket.

G14 Earthing point, on the left-hand front seat member.

G24 Earthing point, on the right-hand front seat member.
