Ignition System

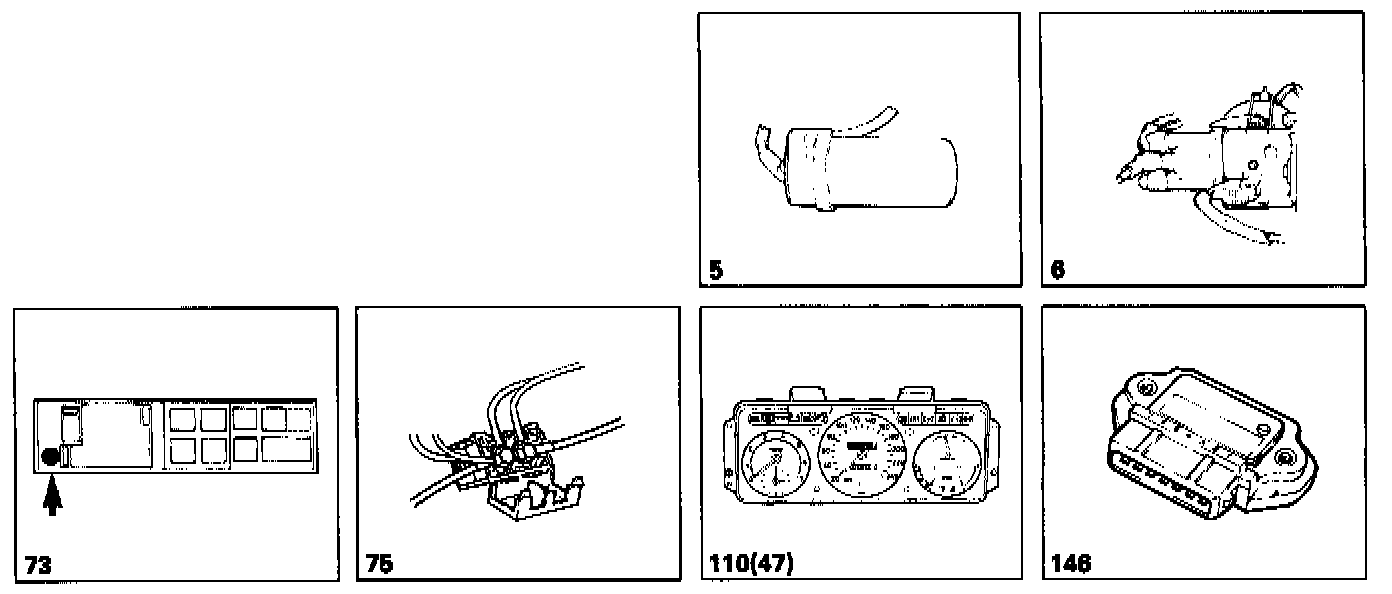

Locations of components








1 Battery on the right-hand side of the engine compartment
4 Starter motor on the left-hand side of the engine (intake side)
5 Ignition coil on the cross-member above the radiator
6 Ignition distributor at the front of the engine
20 Ignition switch on the centre console between the front seats
22A Fuse holder in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
47 Combined instrument on the fascia
73 Timing service instrument socket in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
75 Distribution block in the engine compartment, on the right-hand side
110 Tachometer in combined instrument 47 on the fascia
146 Amplifier for the electronic ignition system in the engine compartment, on the left-hand wheel housing
157 Spark plug on the engine

G1 Earthing point on the radiator crossmember
G6 Negative distribution terminal in the electrical distribution box, in the engine compartment, on the left-hand wheel housing
G8 Earthing point on the fascia
G12 Earthing point for the amplifier, on the left-hand wheel housing
G25 Earthing point on the gearbox

H29-1 29-pole white connector
H29-2 29-pole red connector
H33-1 33-pole black connector
H33-2 33-pole grey connector
in the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connectors are accessible from the interior
