Electrical Diagrams

List of Components

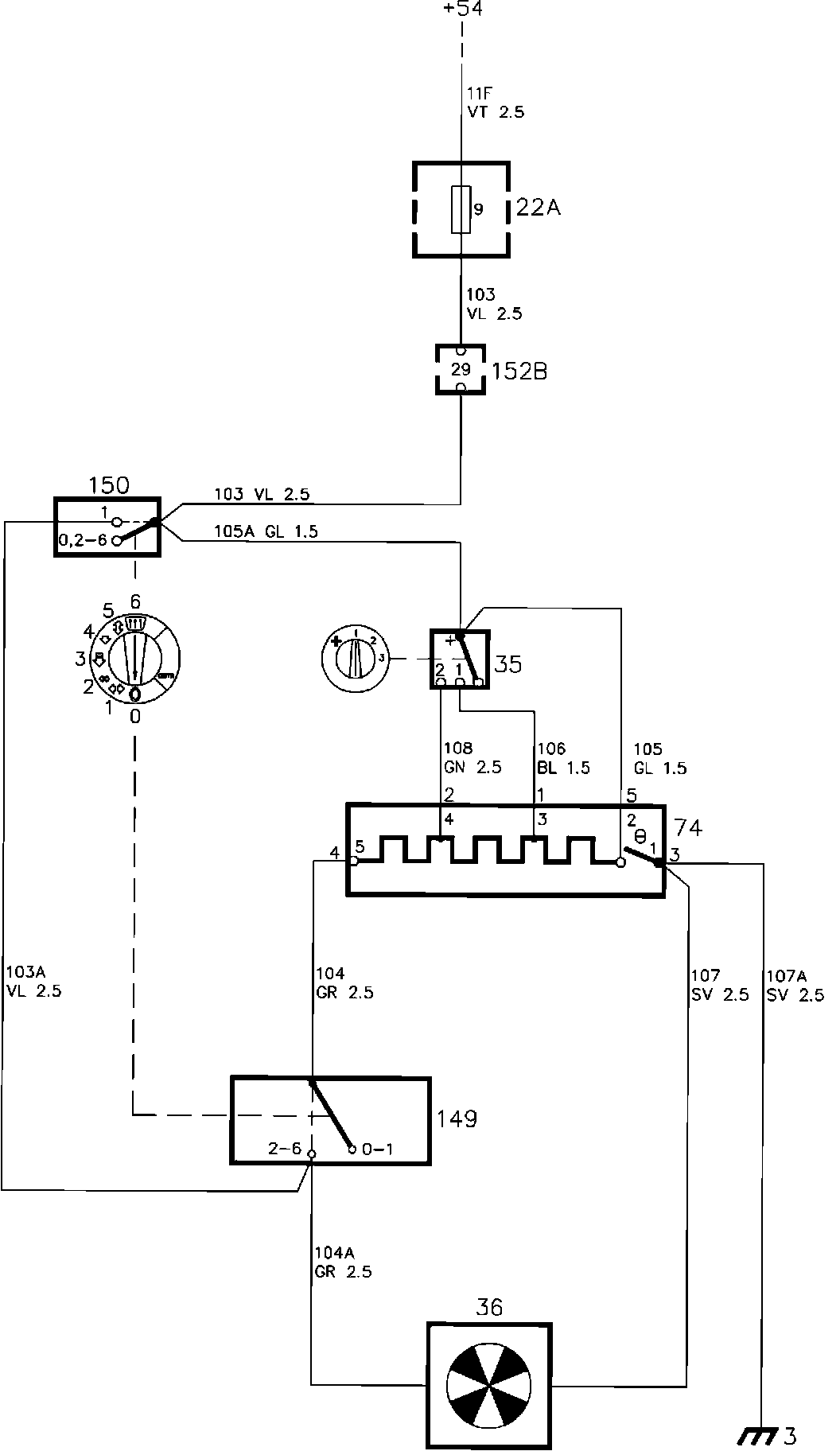

Blower Controls (Ventilation Fan):

3 Earthing point in the facia.

22 Fuse box in the electrical distribution box in the engine compartment, on the left-hand wheel housing.

35 Selector switch for the ventilation fan in the centre of the facia.

36 Motor for the ventilation fan behind the right-hand speaker grille.

74 Resistor for ventilation fan accessible under the left-hand speaker grille.

149 Main switch for ventilation fan on the facia, in the air distribution control (upper contact).

150 Air distribution switch, AC position on the facia, in the air distribution control (lower contact).

152B 29-pole red connector in the electrical distribution box in the engine compartment, on the left-hand wheel housing. The connector is accessible from the interior of the car.
