Mark II (Manual Trans W/Traction Control)
Mark II (Manual Trans W/Traction Control)

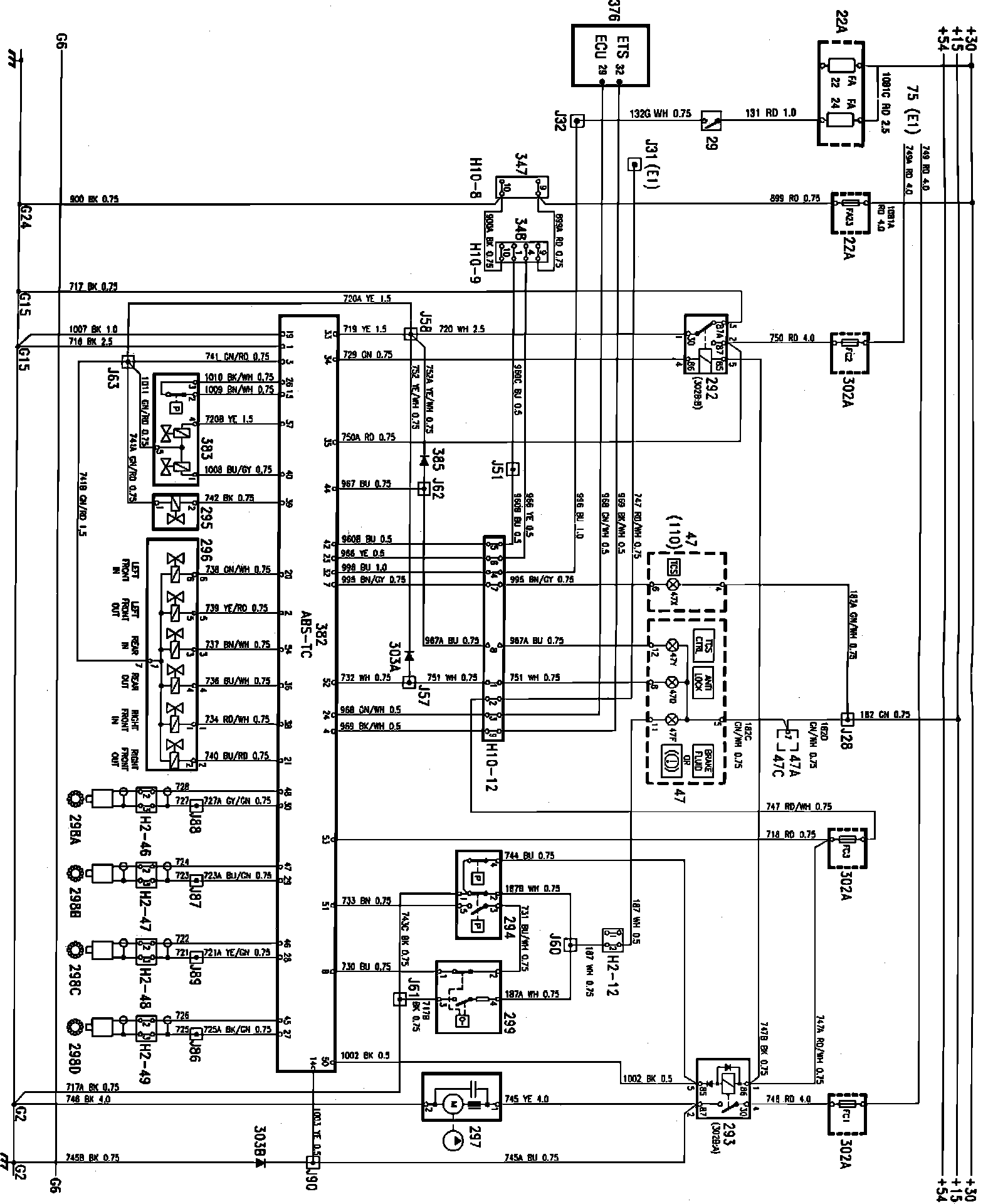

Fig. 5 TC/ABS Wiring Diagram (Part 3 Of 3):
