Indicating and Warning System
Indicating and Warning System
Indicating & Warning Lamps:

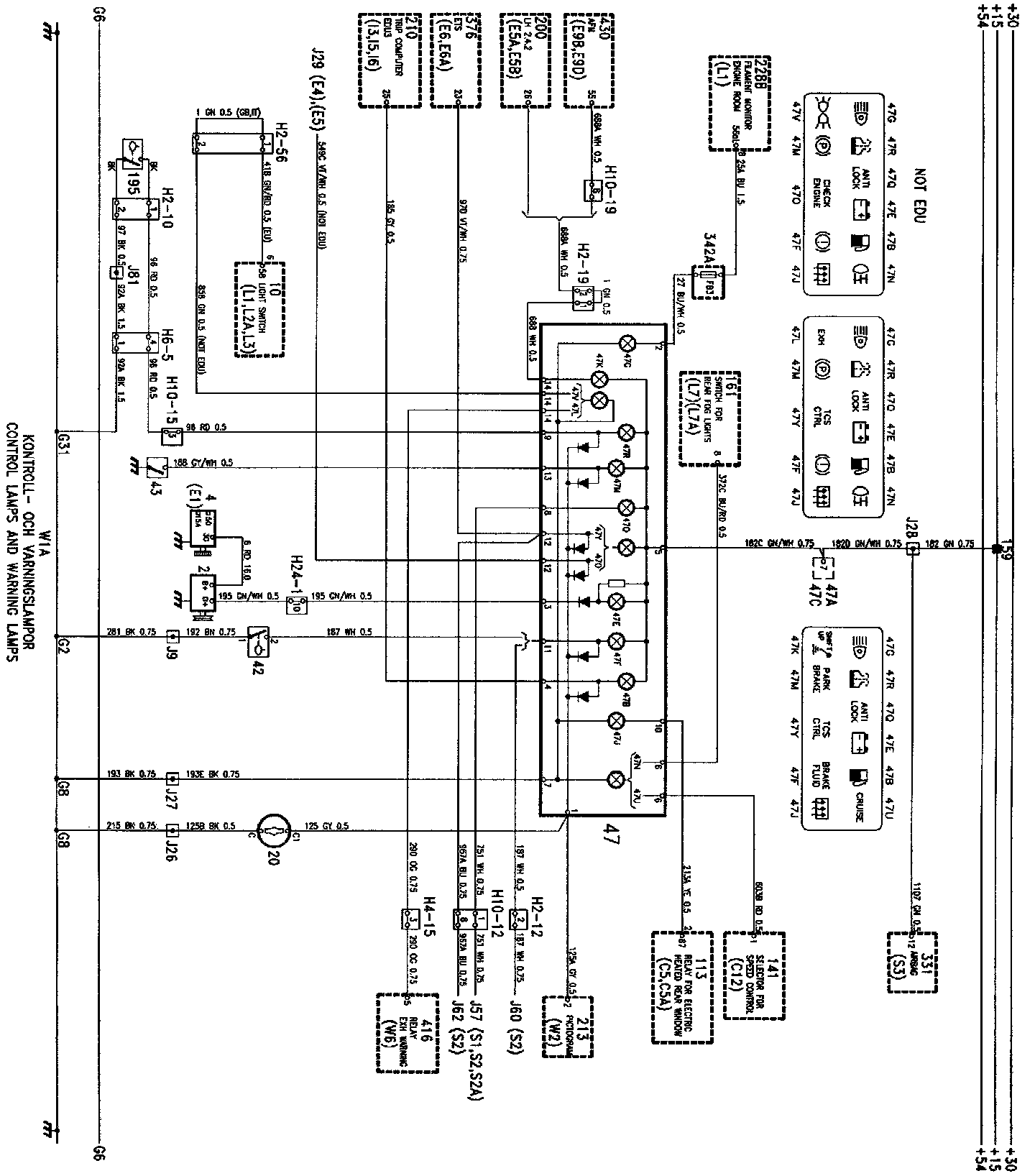

Indicating & Warning Lamps (part 2 of 2):
