Pictogram-Filament Monitor/Oil Pressure Lamp
Pictogram-Filament Monitor/Oil Pressure Lamp

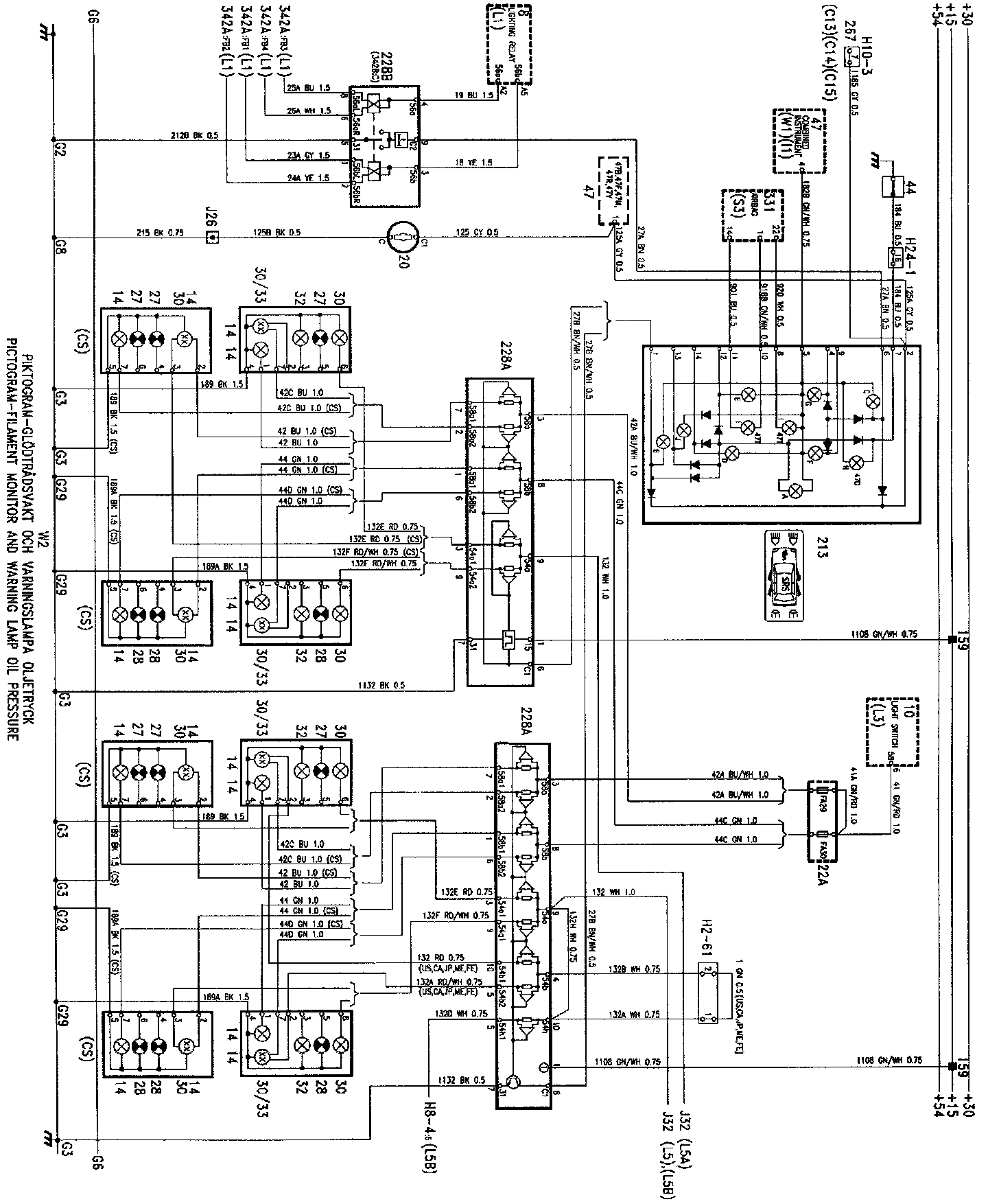

Pictogram - Filament Monitor, Oil Pressure Warning Lamp:
