Home >> Saab >> 1993 >> 9000 L4-2290cc 2.3L DOHC Turbo EFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Speedometer (Electronic)

Speedometer (Electronic)

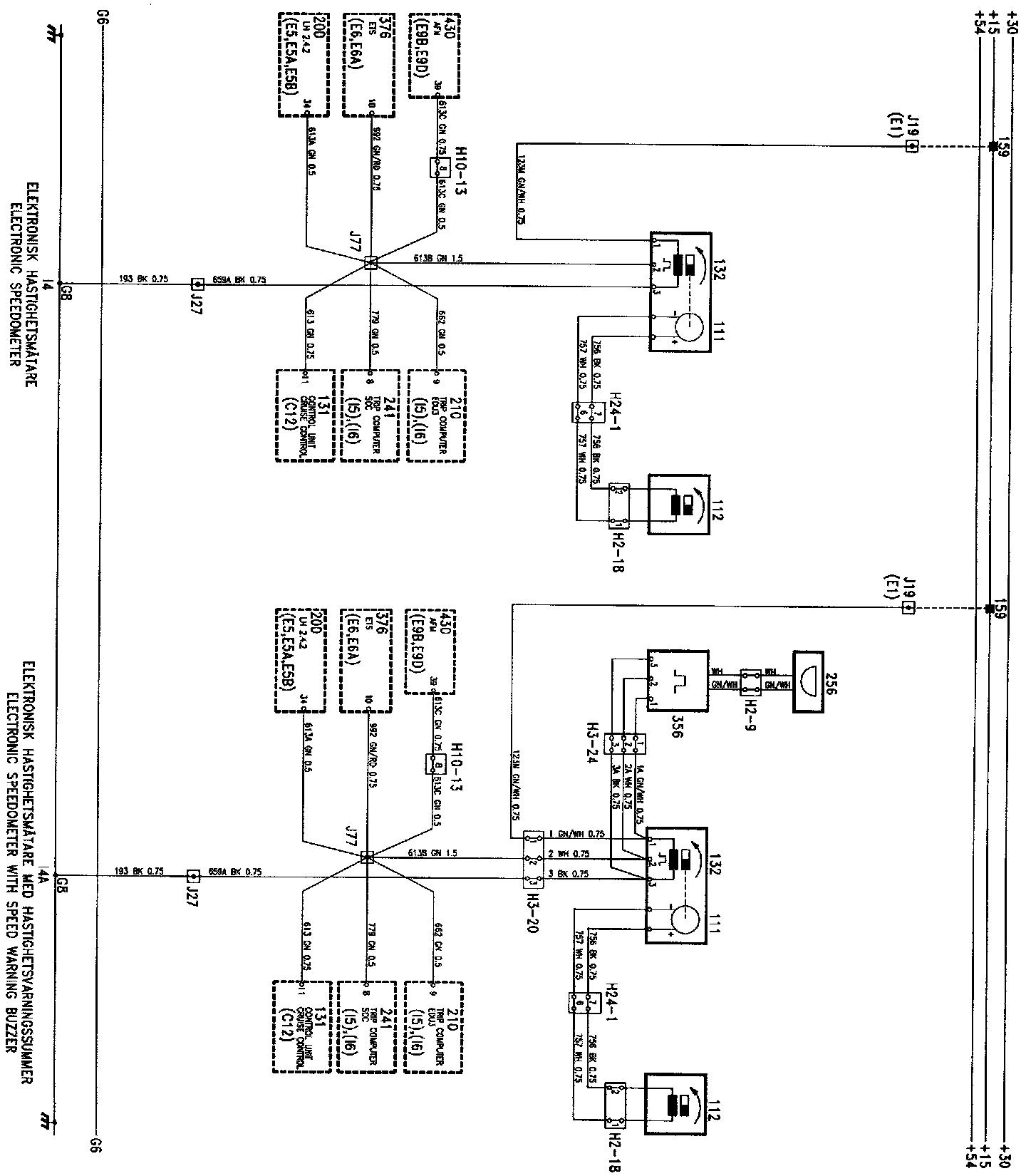

Electronic Speedometer:
