Shift Interlock: Service and Repair

Removal

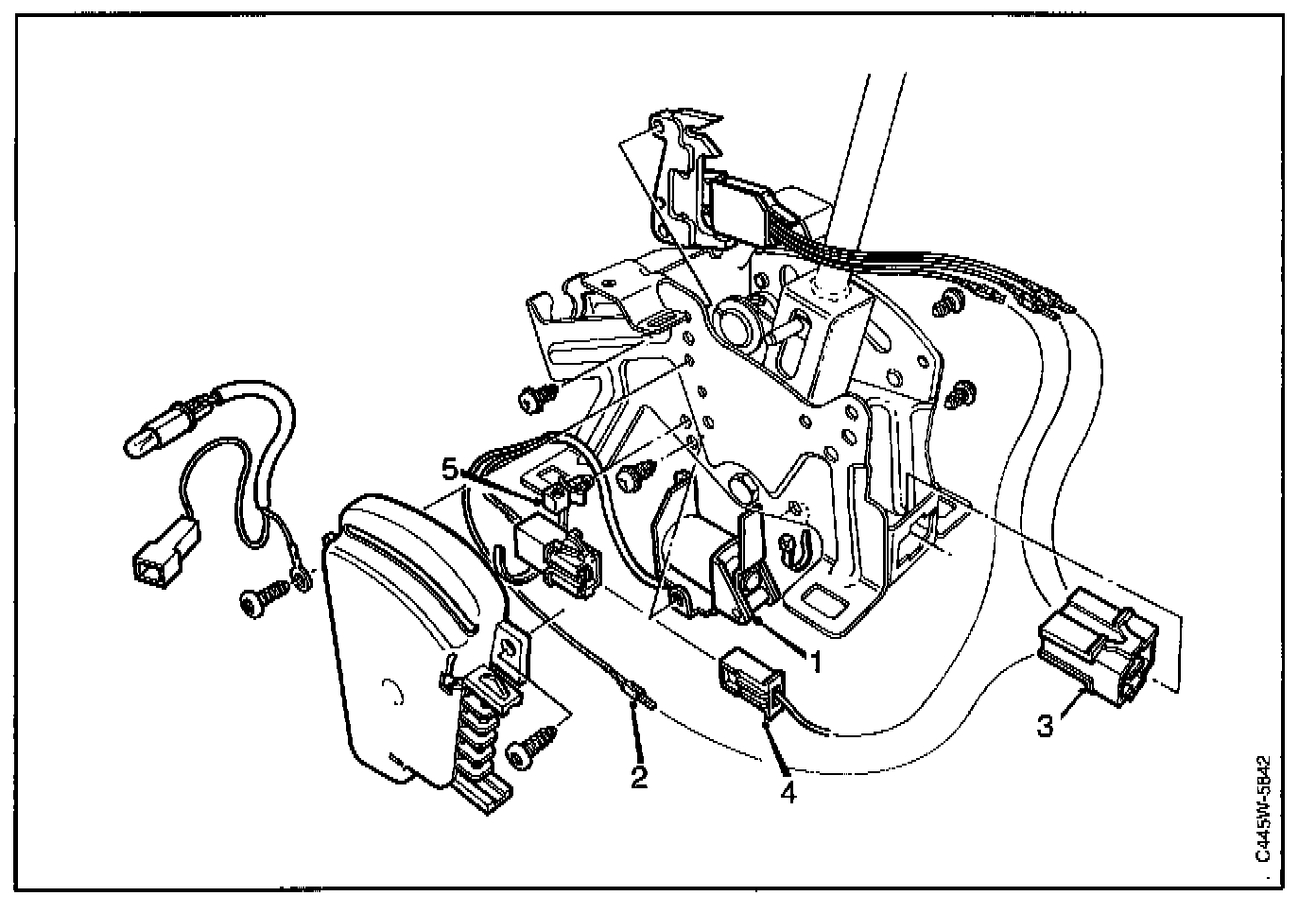

In order to remove the solenoid, the selector housing must first be removed.





1 Place the selector housing in a vice.

2 Set the selector lever to gear position 1.

3 Undo the cable tie and unplug the 2 pin connector.

4 Unplug the 4 pin connector for the solenoid from the selector housing.

5 Remove the 3 solenoid screws and lift the solenoid out of the housing.

6 Remove pin 1 (white lead) from the 4 pin connector.

7 Cut the cable tie and remove the solenoid.

Fitting





1 Place the solenoid in the selector housing. Fit and tighten the 3 screws.

2 Fit the white lead from the solenoid in position 1 in the 4 pin connector.

3 Fit connector in selector housing.

4 Plug in the 2 pin connector.

5 Fit the cable ties for connector and cables.
