Turn Signals

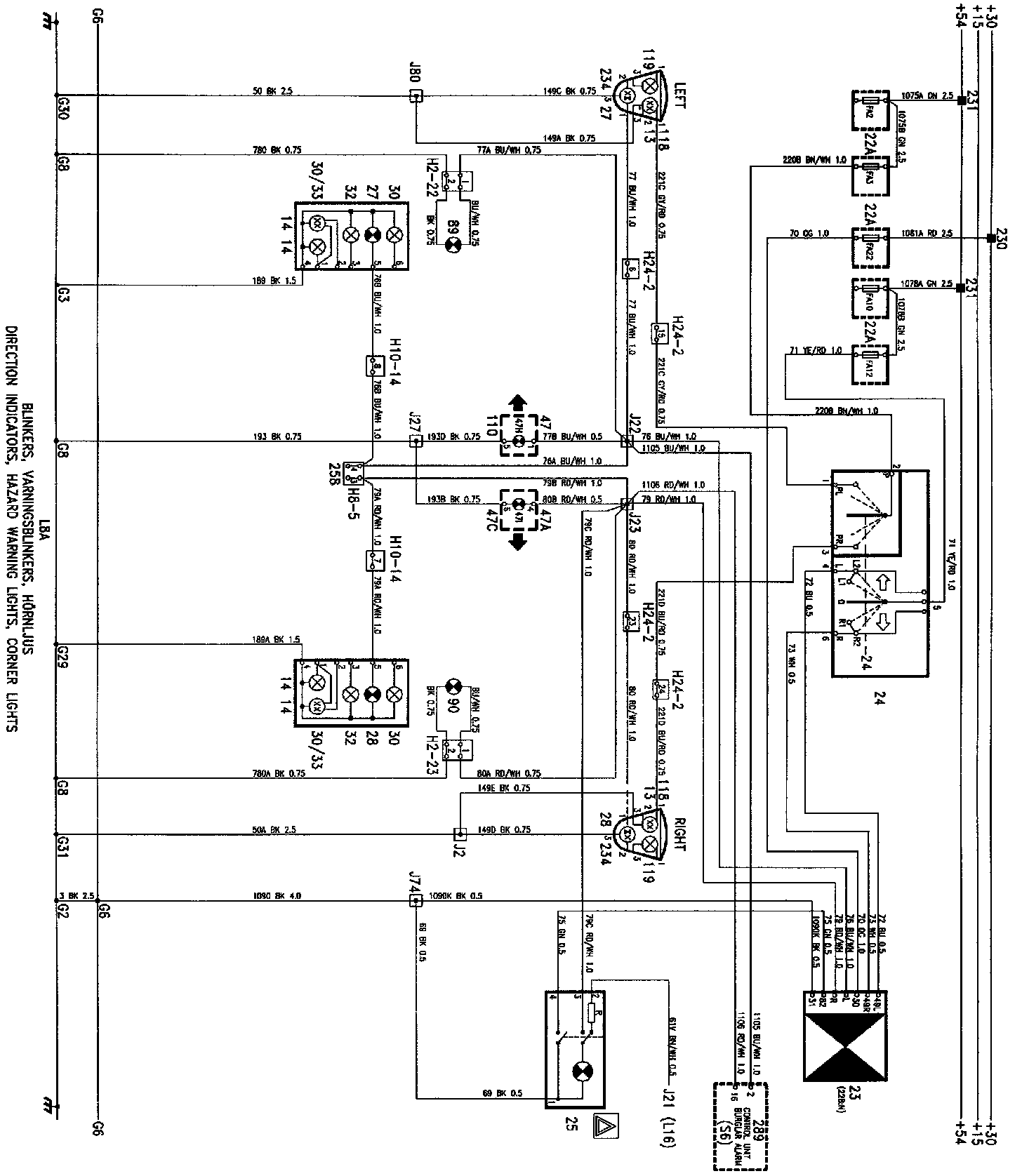

Direction Indicators & Hazard Warning Lights:



Direction Indicators & Hazard Warning Lights W/Corner Lights:
