Facia Vent on Passenger Side, Changing

Facia Vent On Passenger Side
1. Without adjustable glove compartment flap
2. With adjustable glove compartment flap

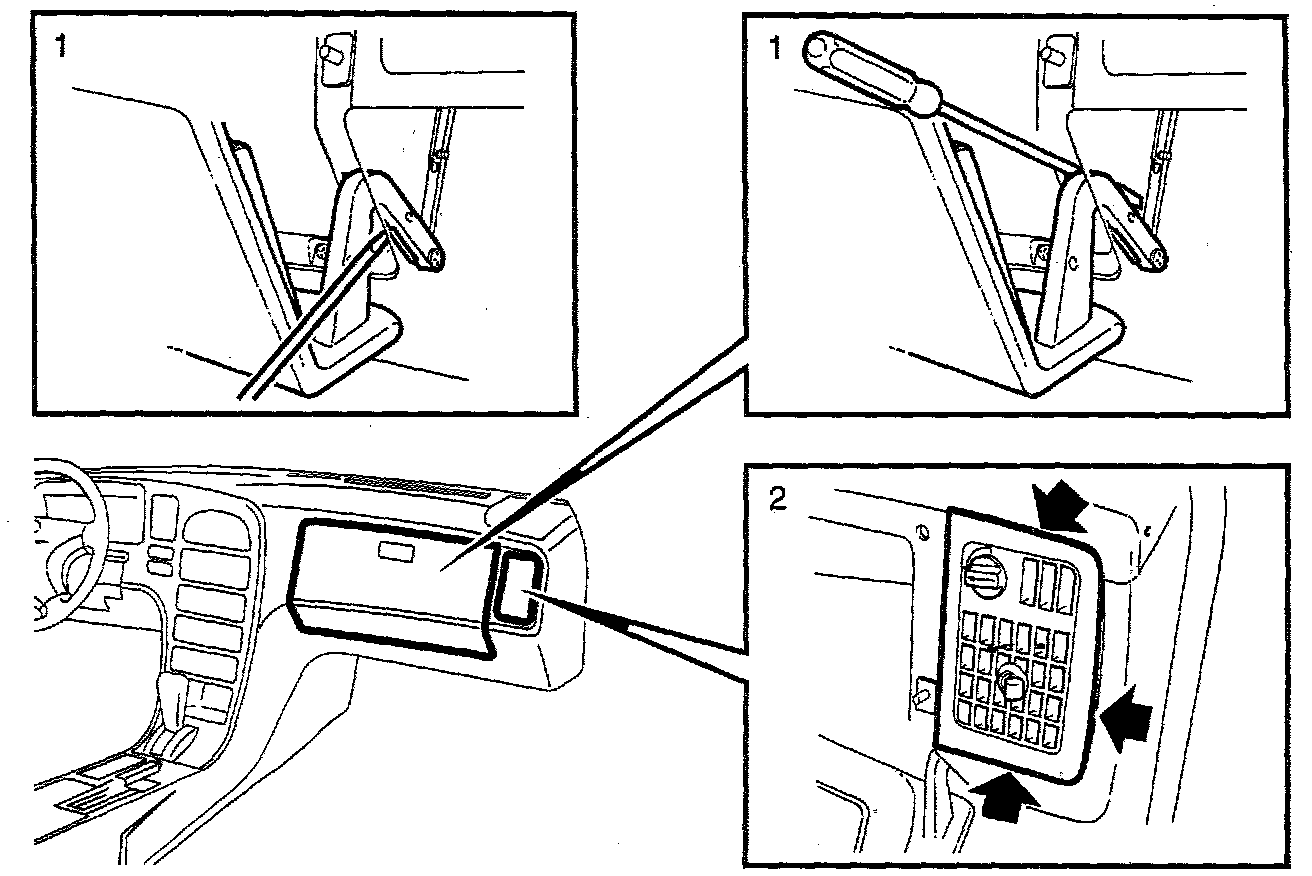

Removal
1. Fully open the glove compartment flap by bending out the link arms in order to release the stops. Pull down the glove compartment lamp inside the glove compartment. if the car is equipped with a passenger airbag, the airbag module should be removed.
2. Remove the glove compartment together with the facia vent by undoing the six screws. Using a screwdriver, carefully pry along the facia vent. Note the position of the clip. Detach cables from glove compartment lamp and the lighting switch.

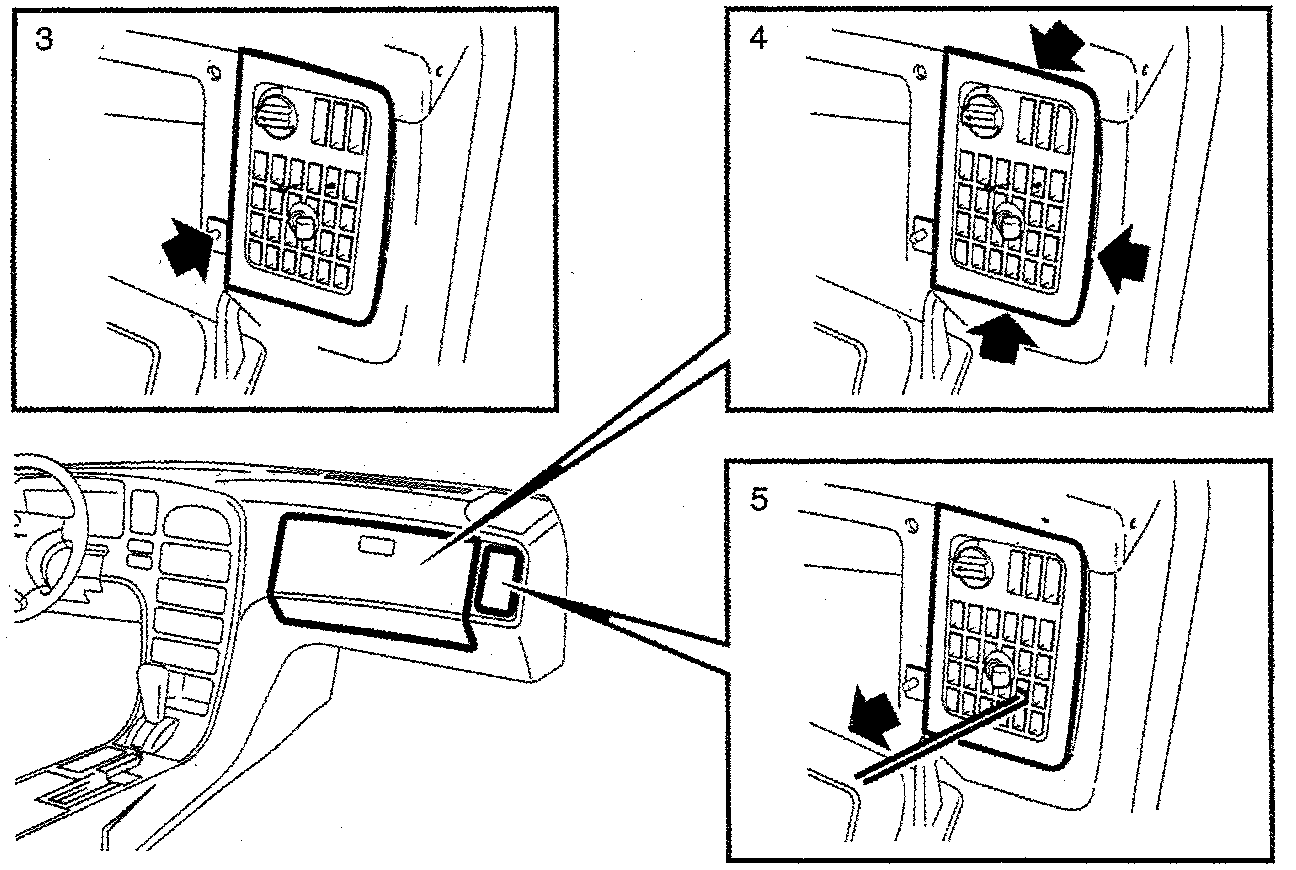

To Install
1. Fit the fresh air nozzle to the defroster hose.
2. Check that the clip is engaged. Connect cables. Fit glove compartment.
3. Pull the fresh air vent into position using a bent wire.
