Idle Speed/Throttle Actuator - Electronic

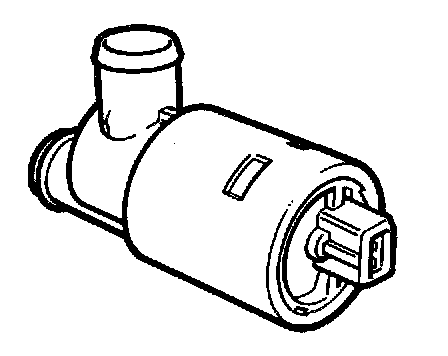

Idle air control valve (IAC)





Resistance at 20°C (68°F),
LH 2.2 Ohms 20 ± 5 (pins 2-1 and 2-3)
LH 2.4, LH 2.4.1 Ohms 7 ± 5 (pins 1-2)
LH 2.4.2 Ohms 12 ± 3 (pins 2-1 and 2-3)
