Ground Point G24

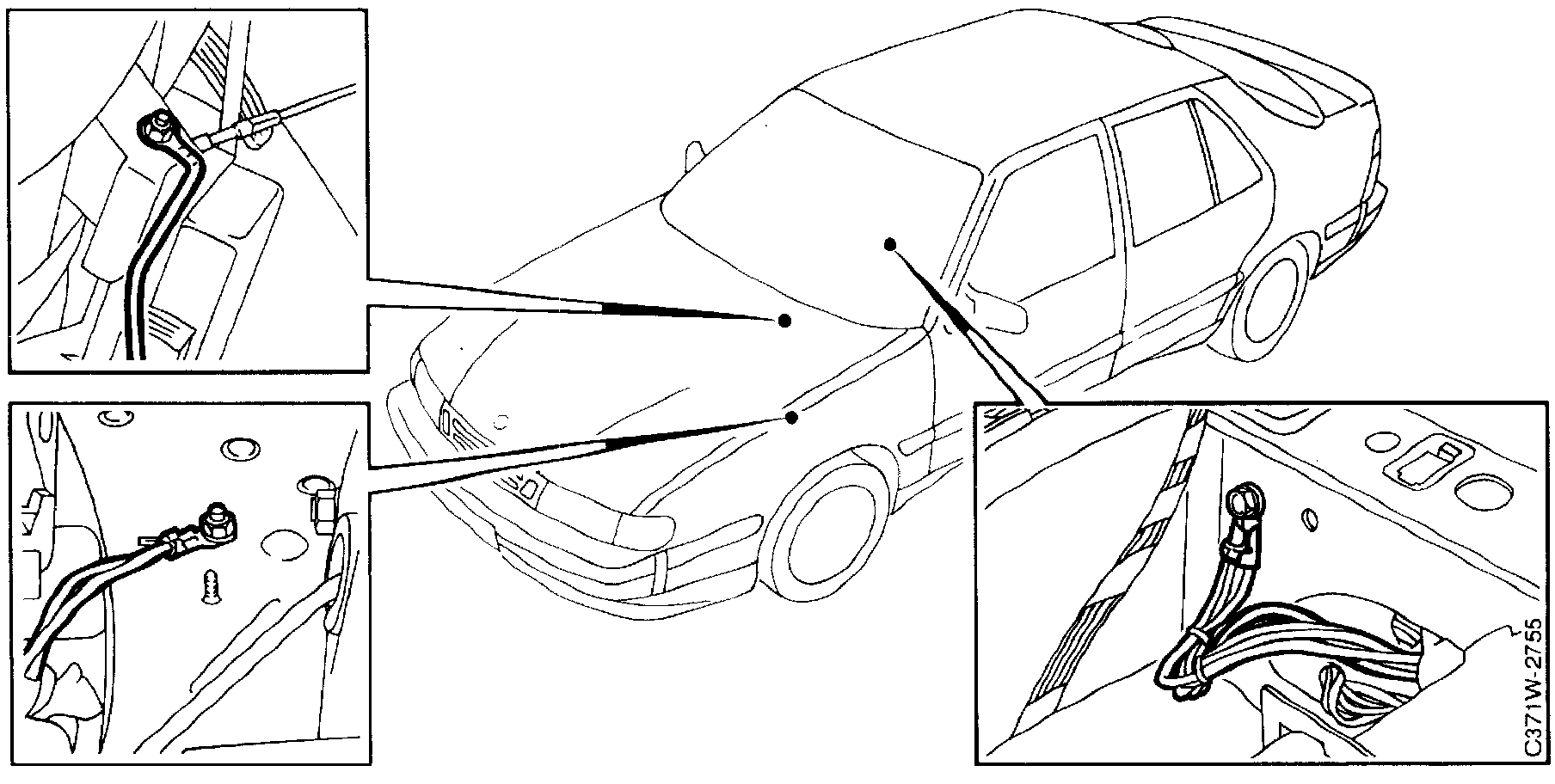

Grounding Points G16, G24 And G20:

The following components are connected to grounding point G24 on the RH front seat member:

347 Data link connector for engine diagnostics
348 Data link connector for car diagnostics
208 Door lock indication, RH rear door (via a 2-pin connector and a 7-pin connector)

Via a 3-pin connector under the RH seat:
358 Switch for right-hand electrically adjustable seat
358K Control module for right-hand electrically adjustable front seat with memory
369 Microswitch for backrest on RH electrically adjustable seat
446 Relay for RH electrically adjustable seat (ignition switch)
447 Relay for RH electrically adjustable seat (door switch)

Via a 4-pin connector in the centre console:
439 Gear selector solenoid
440 Microswitch for gear selector

Via a 4-pin connector under the RH front seat:
416 Relay for EXH warning lamp

Via an 8-pin connector under the RH front seat:
64 Heating pad
71 Seat-belt switch, RH
224 Seat-belt lock illumination
255 Temperature sensor, RH
