Ground Point G30

Grounding Points G30 And G31:

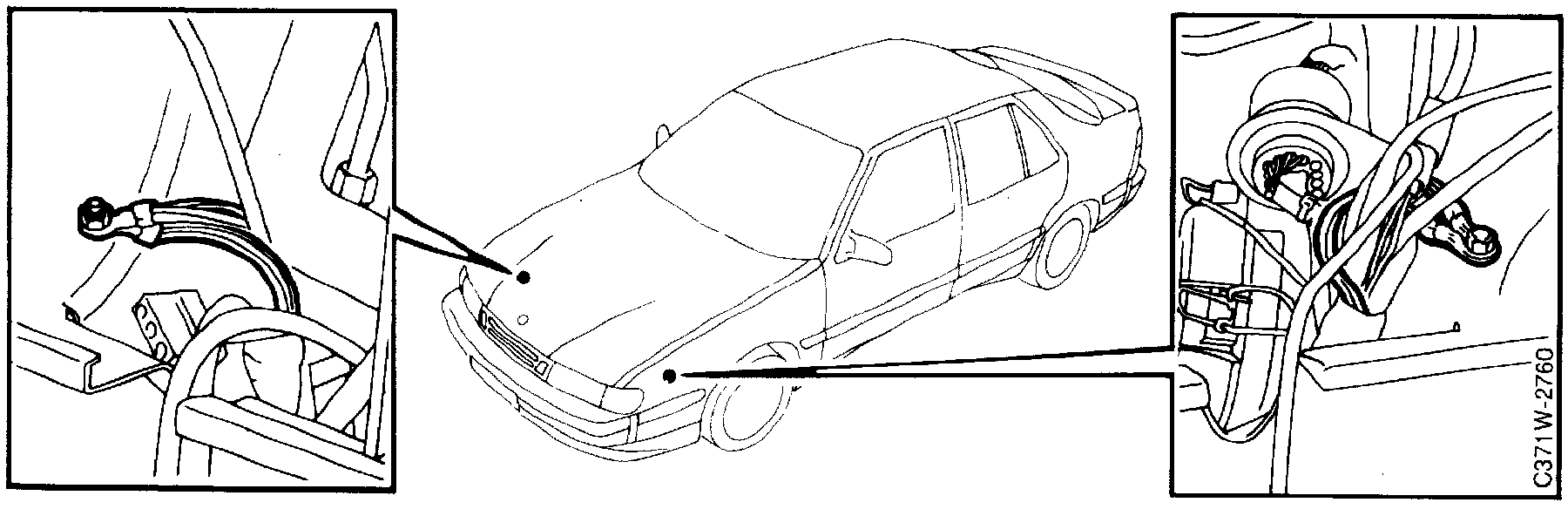

Grounding point G30 is located on the LH structural member behind the LH headlamp.
The following components are connected to it:

11 Main beam, LH
12 Dipped beam, LH
13 Parking light, LH
27 Direction indicator, front left
66 Headlamp wiper motor, LH (via a 3-pin connector)
85 Extra fog light, LH
118 Corner light, LH
119 Side reversing light, LH
234 Side marker light, LH
280 Motor for headlamp beam adjustment, LH
