Ground Point G8

Grounding Point G8:

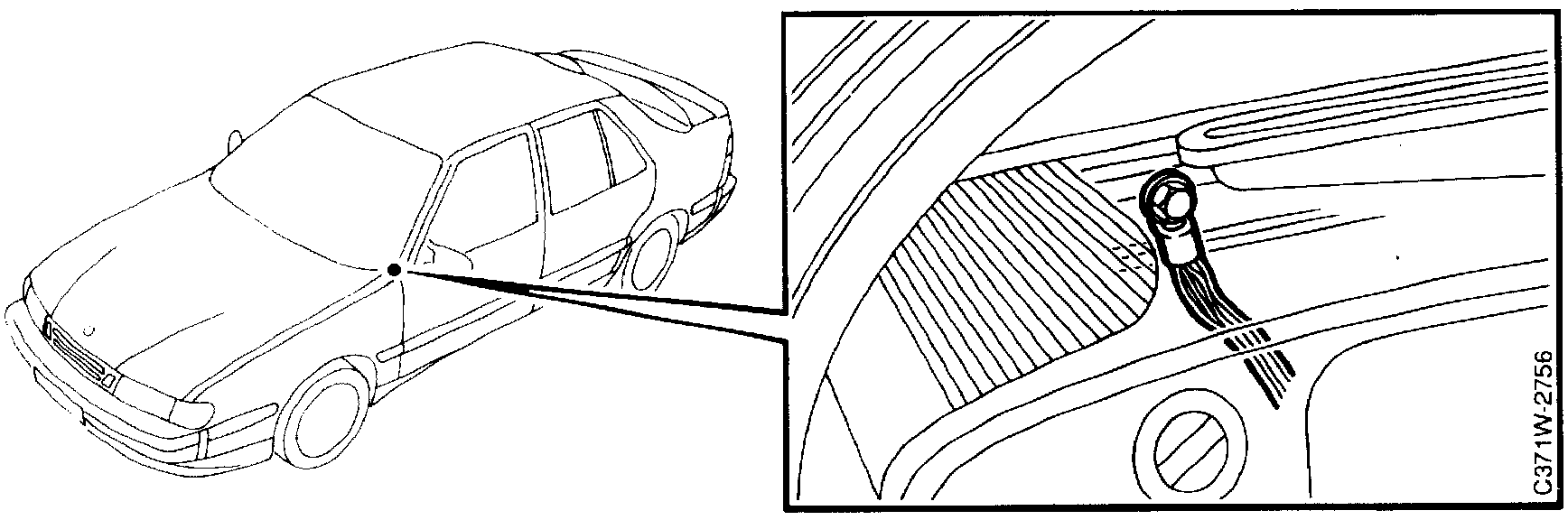

Grounding point G8 is located behind the dashboard on the reinforcing member below the LH speaker grille. The following components are connected to it:

10 Lighting switch
16 Rheostat, lighting for instruments and controls
18 Instrument lighting
20 Ignition switch
41 Horn switch
47A Fuel gauge, cars without EDU (via a 4-pin connector adjacent to the fuel pump)
47C Temperature gauge
47G Full beam warning lamp
47H Direction indicator warning lamp, left-hand
47I Direction indicator warning lamp, right-hand
47J Indicator lamp for electrically heated rear window
47N Warning lamp for rear fog lights
47U Cruise Control indicator lamp
47V Warning lamp for headlamps switched ON
48 Cigar lighter
49 Clock
53 Interior lighting switch (via an 8-pin connector)
88 Switch for extra fog lights
89 Side direction indicator lamps, left-hand (via a 2-pin connector adjacent to the indicator lamps)
90 Side direction indicator lamps, right-hand (via a 2-pin connector adjacent to the indicator lamps)
110 Tachometer
124 Switch for electrically operated door mirrors (via a 22-pin connector in the door pillar)
126 Motor for left-hand electrically operated door mirror (via a 22-pin connector in the door pillar and a 4-pin connector in the door)
127 Motor for right-hand electrically operated door mirror (via a 22-pin connector in the door pillar and a 4-pin connector in the door)
131 Control module for Cruise Control system
132 Sensor for the speed transmitter (via a 3-pin connector, ME)
148 Front ashtray and cigar lighter illumination
161 Switch for rear fog lights
175 Control module for central locking system
207 Electrically heated door mirrors (via a 22-pin connector in the door pillar and a 4-pin connector in the door)
208 Door lock indication, driver's door (via a 22- pin connector in the door pillar and a 2-pin connector adjacent to the locking mechanism)
210 EDU trip computer
215 Dipswitch
216 Automatic climate control unit, ACC
219 Suction fan for the interior temperature sensor
225 Reading lamp, rear seat (via a 10-pin connector)
226 Front-seat reading lamp (via a 10-pin connector to left of steering column below the dashboard)
238 Control module for seat-belt tensioners
241 SCC trip computer
252 Rheostat for the heating pad, driver's seat
253 Rheostat for the heating pad, front passenger's seat
267 Radio connection
336 Slip-ring contact for airbag
351 Amplifier for radio
352 Slip-ring contact for horn
356 Control module for speed warning (via two 3-pin connectors)
375 Connector for prewired mobile telephone installation
432 Relay for rear window washer
437 SHIFT LOCK relay
