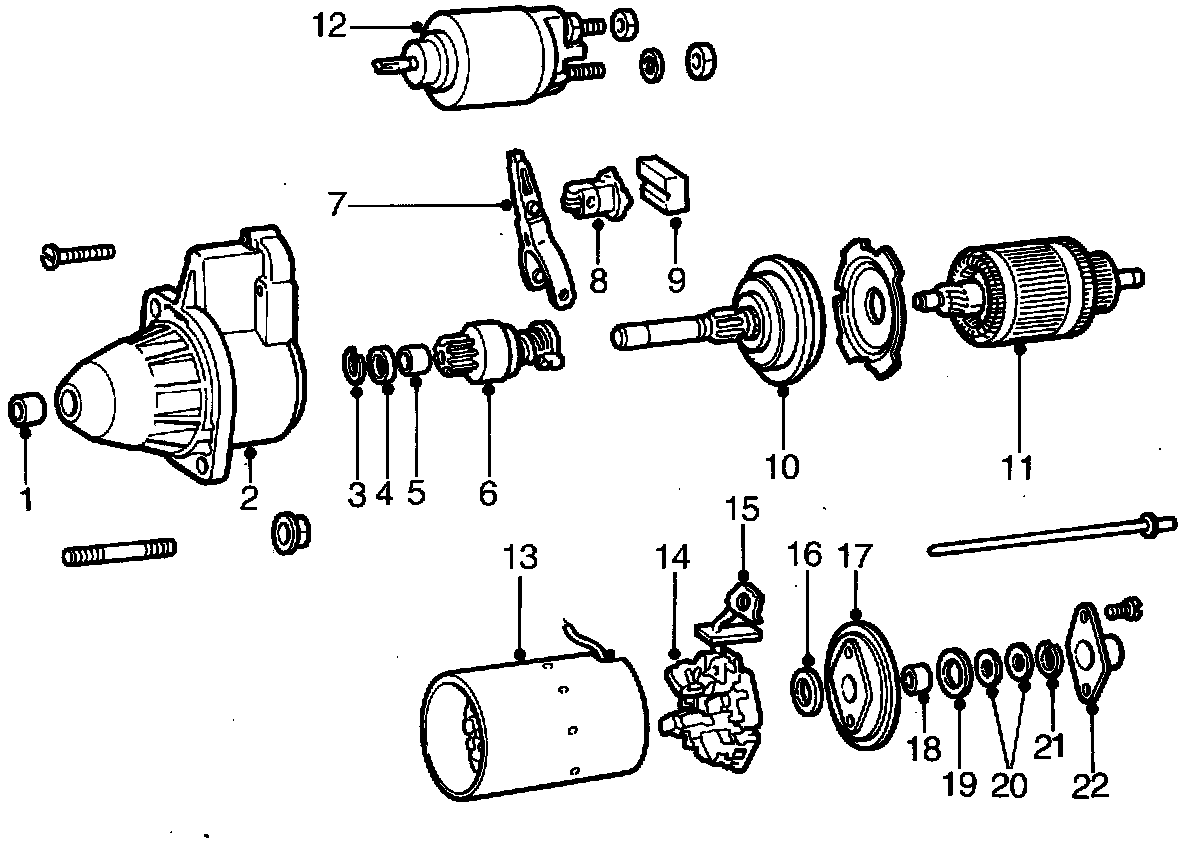

Starter Motor

1 Drive end bush
2 Pinion bracket assembly
3 Circlip
4 Stop ring
5 Pinion end bush
6 Starter pinion
7 Pinion engaging lever
8 Bearing bracket
9 Seal
10 Planetary gearing
11 Armature
12 Solenoid
13 Starter motor housing
14 Brush holder assembly
15 Seal
16 Seal
17 Commutator end bracket
18 Commutator end bush
19 Seal
20 Shims
21 Spring washer
22 End cover
