Ground Point G6

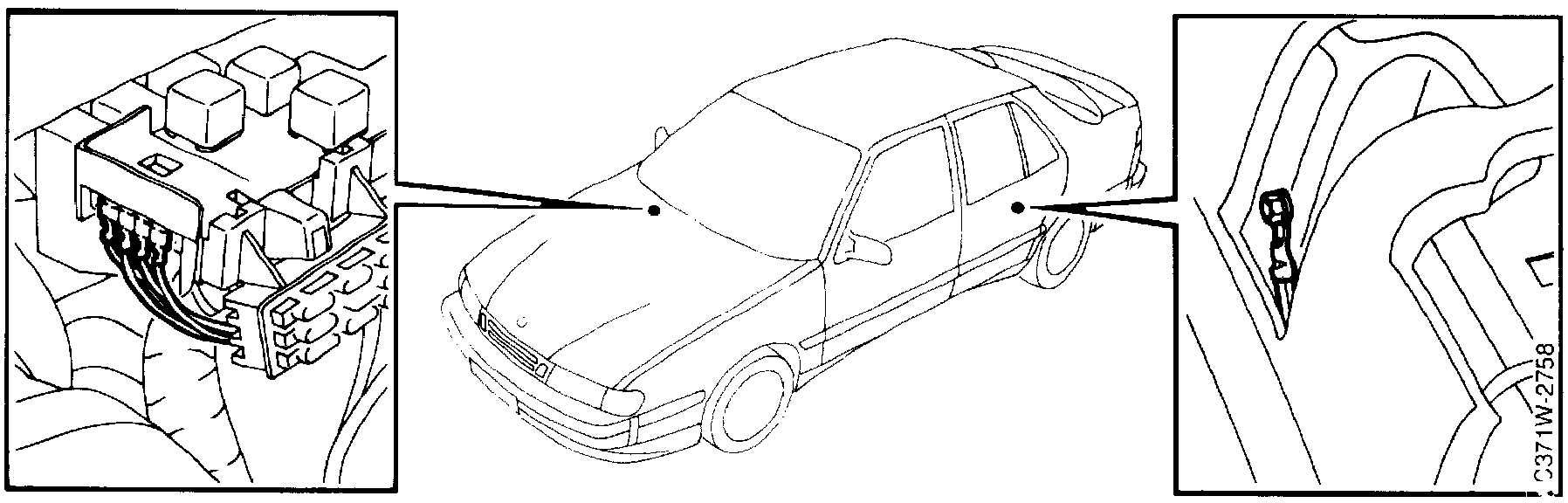

Grounding Points G5 And G6:

Negative distribution terminal G6 is located in the fuse box on the left-hand side. The following components are connected to it:

19 Glove box lamp
21 Ignition switch relay
23 Relay for the direction indicators
25 Hazard flashers switch
82 Relay for seat-belt/ignition key warning
83 Relay for intermittent operation of windscreen wipers
83A Relay for intermittent operation of rear window wiper
107 Relay for extra fog lights
113 Relay/time-delay relay for electrically heated rear window
116 Switch for electrically heated rear window
126 Motor for electrically operated LH door mirror (via a 22-pin connector in the door pillar and a 4-pin connector in the door)
127 Motor for electrically operated RH door mirror (via a 22-pin connector in the door pillar and a 4-pin connector in the door)
143 Recirculation switch, AC
151 Time-delay relay for interior lighting
154 Lighting for heater controls (via a 2-pin connector adjacent to the heater control panel)
169 Switch for AC
174 Relay for daylight running lights
207 Electrically heated RH door mirror (via a 22-pin connector in the door pillar and a 4-pin connector in the door)
208 Door lock indication for passenger door (via 22-pin connector H22-2 in the door pillar and a 2-pin connector adjacent to the locking mechanism)
223 Sun sensor, ACC
289 Electronic unit for anti-theft alarm
274 Microswitch, driver's door (via a 22-pin connector in the door pillar and a 4-pin connector in the door)
405 Relay for reversing lights, automatic transmission
433 Relay for disconnection of intermediate pressure, AC/ACC
435 Microswitch in passenger's door

In addition, grounding point G6 is connected to grounding point G2.
